Hardware Installation and Reference Guide
Caution
When wall-mounting the master AP, keep the product logo on the master AP panel facing upwards.

During installation, slide and fasten the master AP along the direction of the installation guide holes

on the mounting plate. Do not forcibly push the master AP into the buckle of the mounting plate.
After installation, carefully check whether the master AP is fastened, so as to prevent the master AP

from falling.

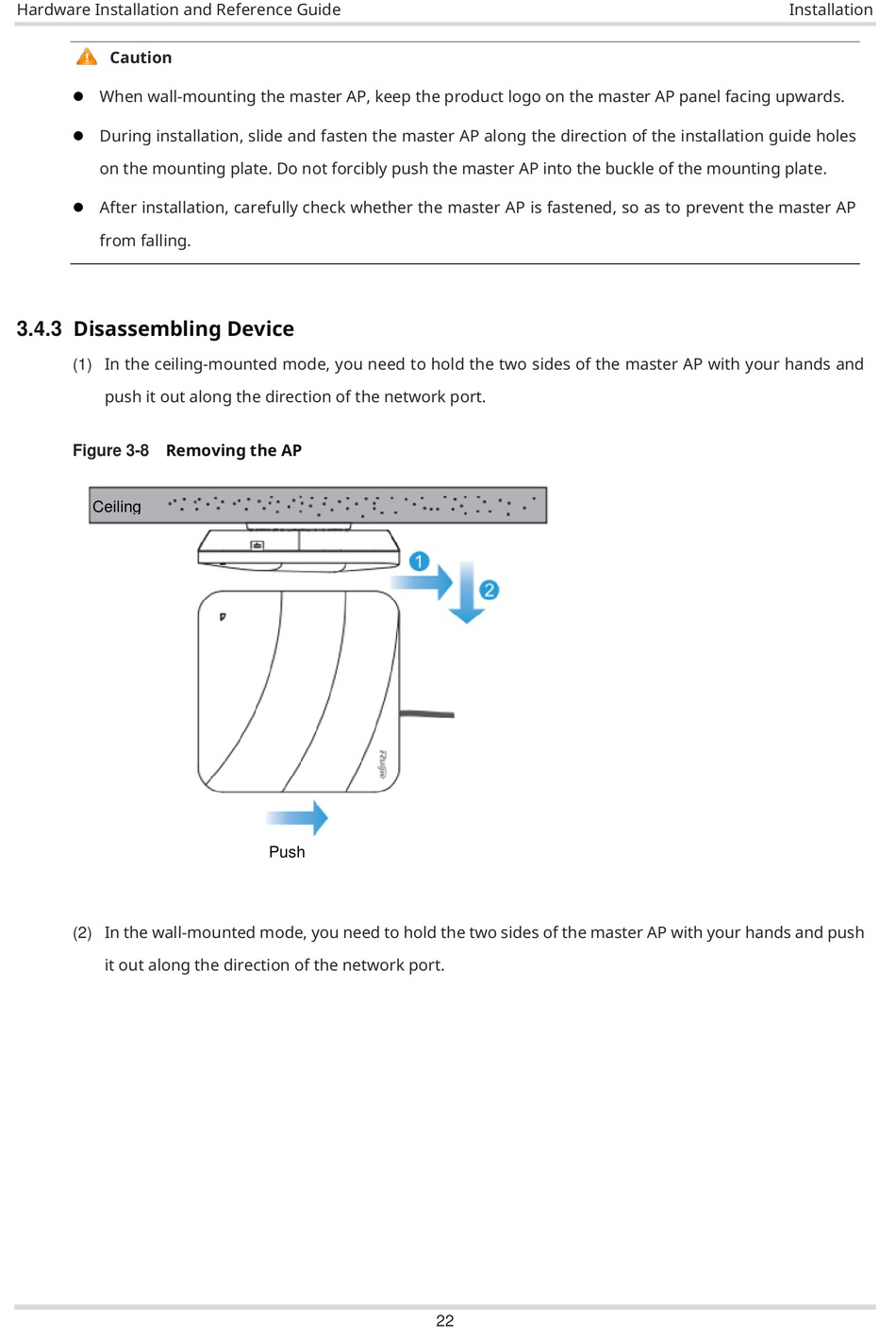

Disassembling Device

3.4.3
(1) In the ceiling-mounted mode, you need to hold the two sides of the master AP with your hands and
push it out along the direction of the network port.
Removing the AP
Figure 3-8
Ceiling
(2) In the wall-mounted mode, you need to hold the two sides of the master AP with your hands and push
it out along the direction of the network port.
Push
22
Installation
