Hardware Installation and Reference Guide
Place the device in a ventilated place.

Do not place the device in high temperature environment.

Keep the device far away from high-voltage cables.

Install the device indoors.

Keep the device far away from strong thunderstorms and strong electric fields.

Keep the device clean and protect it against dust.

Disconnect the power of device before cleaning it.

Do not wipe the device with a wet cloth.

Do not clean the device with liquids.

Do not open the shell while the device is working.

Fix the device firmly.


Installing the Master AP

3.4
Note
An area with large antenna radiation coverage is preferred to install the master AP.

In the indoor environment, the radiation coverage area of the ceiling-mounted antenna is larger than

that of the wall-mounted antenna. Therefore, the ceiling-mounted mode is preferred.

Ceiling-Mounted

3.4.1
(1) Drill 4 mounting holes with a diameter of 6.5 mm on the ceiling, and the center distance of the
mounting holes is 53 mm. After tapping the anchors into the mounting holes, screw the mounting
plate in and fix it.

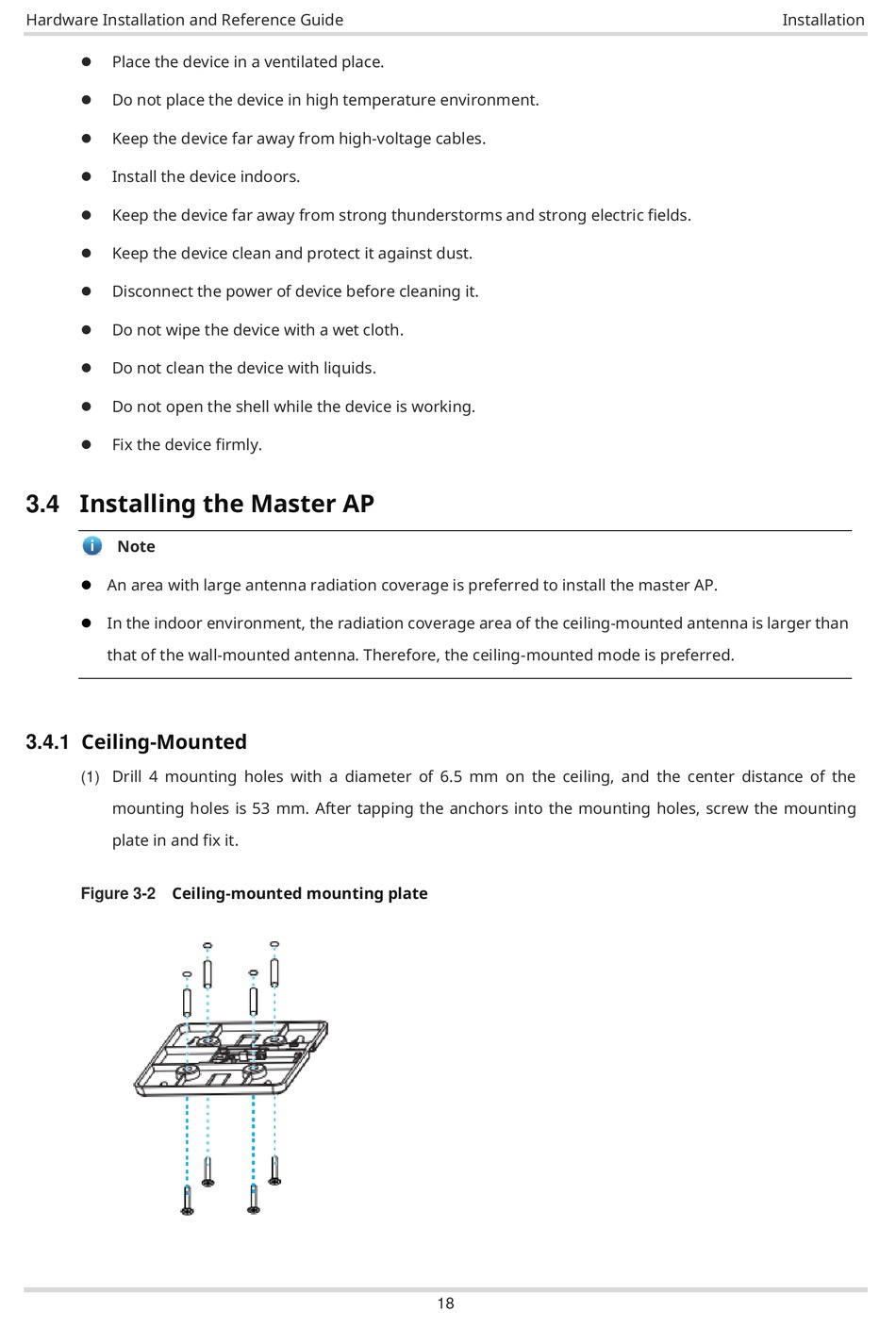

Ceiling-mounted mounting plate
Figure 3-2
18
Installation
