Hardware Installation and Reference Guide
Front view description
Table 1-1
No. Button and Port
1 Indicator

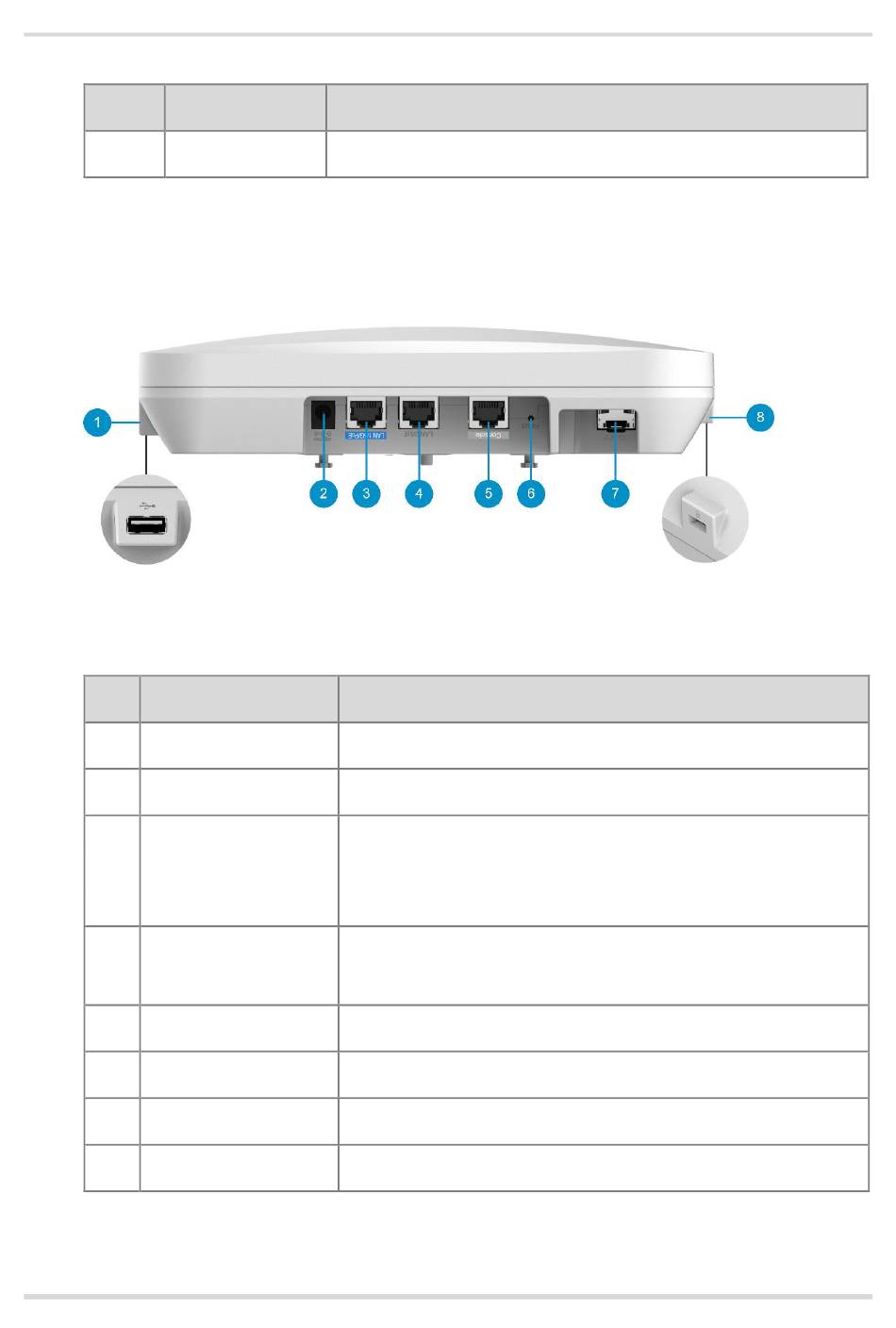

Side view
Figure 1-4
Button and port description
Table 1-2
No. Button and Port
1 USB port
2 DC power port
3 LAN1/PoE copper port
4 LAN2/IoT copper port
5 Console port
6 Reset button
7 5G SFP
8 Lock slot
Function Description
Indicates the system working status.
Function Description
Connected to USB flash drive.
Connected to 54 V DC power source to supply power to APs.
Uplinked to service port for wired Ethernet connection and service
data transmission, supporting PoE in compliance with IEEE 802.3af,
802.3at and 802.3bt.
Downlinked to service port for wired Ethernet connection and service
data transmission, providing power to IoT units (48 V/12.95 W).
Connected to serial port cable management device.
Restarts the device or restores the factory settings.
Uplinked to service port for service data transmission.
Connected to security lock.
3
Product Overview
