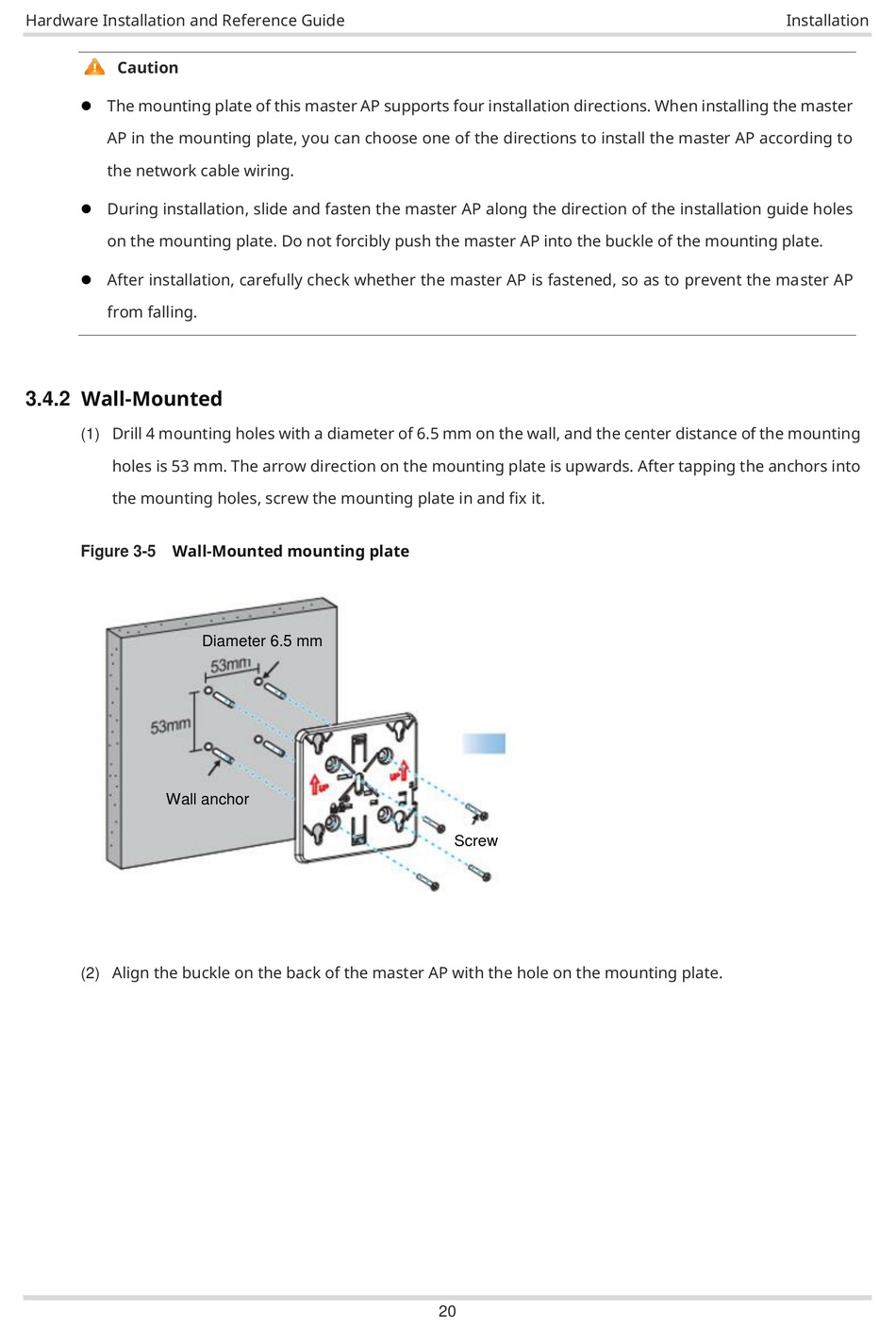

Hardware Installation and Reference Guide
Caution
The mounting plate of this master AP supports four installation directions. When installing the master

AP in the mounting plate, you can choose one of the directions to install the master AP according to
the network cable wiring.
During installation, slide and fasten the master AP along the direction of the installation guide holes

on the mounting plate. Do not forcibly push the master AP into the buckle of the mounting plate.
After installation, carefully check whether the master AP is fastened, so as to prevent the master AP

from falling.

Wall-Mounted

3.4.2
(1) Drill 4 mounting holes with a diameter of 6.5 mm on the wall, and the center distance of the mounting
holes is 53 mm. The arrow direction on the mounting plate is upwards. After tapping the anchors into
the mounting holes, screw the mounting plate in and fix it.
Wall-Mounted mounting plate
Figure 3-5
Wall anchor
(2) Align the buckle on the back of the master AP with the hole on the mounting plate.
Diameter 6.5 mm
Screw
20
Installation
