Wall Mounting

(1) Drill four 6.5 mm (0.26 in.) diameter holes in the wall and 53 mm (2.09 in.) apart, with the
arrow on the mounting bracket facing up. Tap wall anchors into the holes, and drive screws
through the mounting bracket into the anchors to secure the bracket.

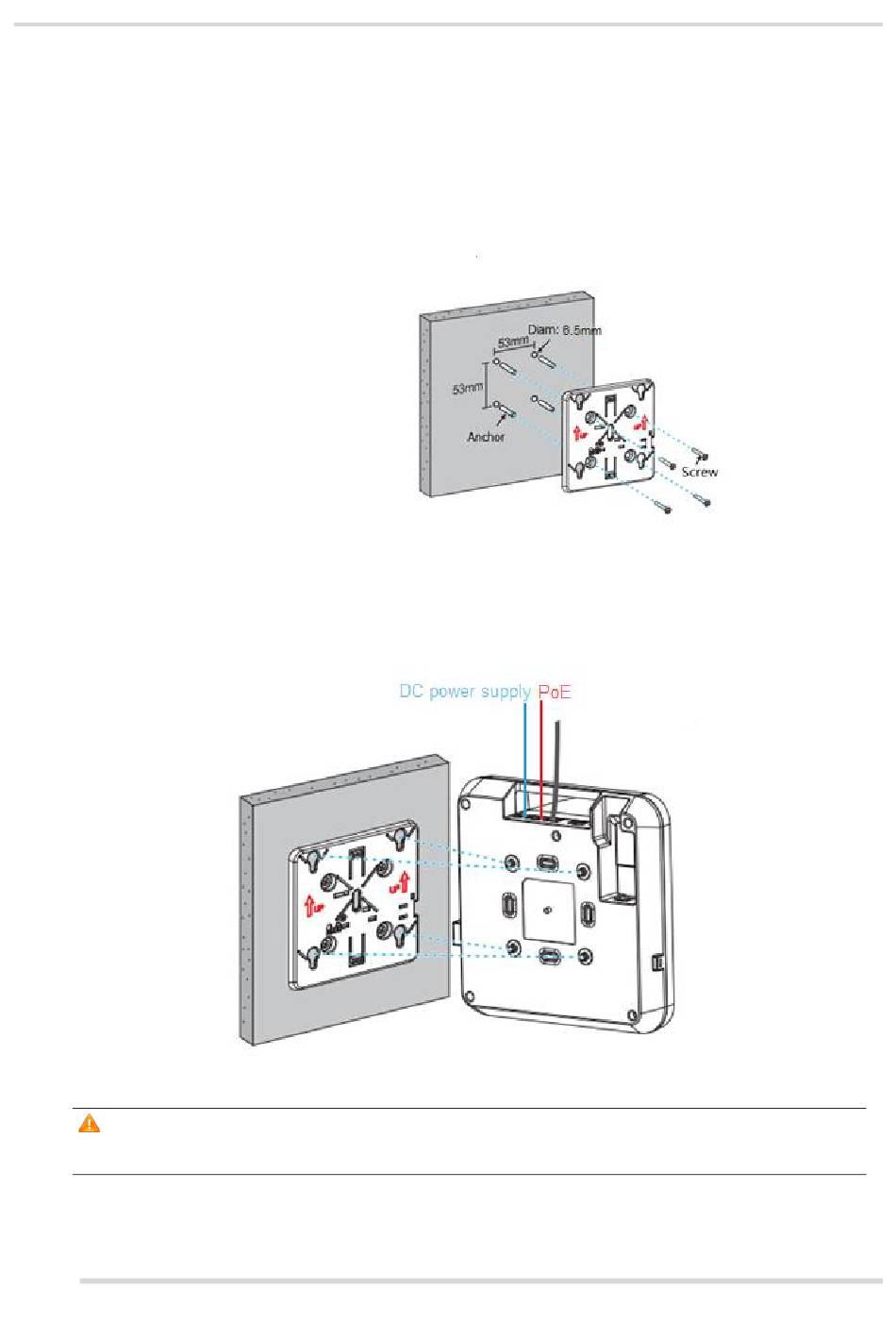

Figure 3-5 Attaching the Mounting Bracket to the Wall
(2) Align the square feet on the rear of the AP with the mounting holes on the bracket.
Figure 3-6 Aligning the Square Feet with the Mounting Holes
Caution
Install the Ethernet cables before mounting the AP on the bracket.
(3) Slide the AP into the holes in the opposite direction of the arrows on the mounting bracket
until it clicks into place.
