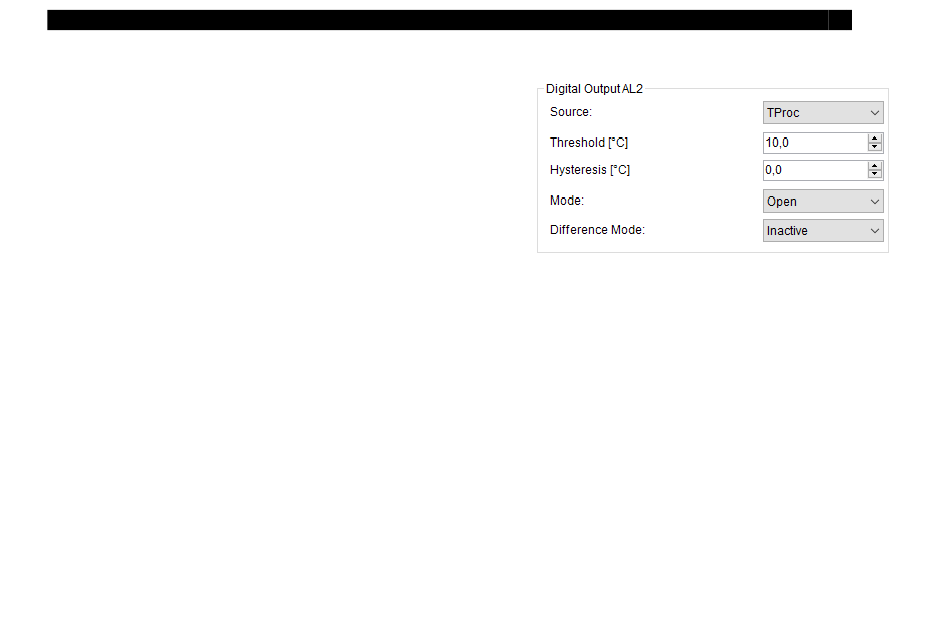

3.2.3. Digital Output AL2

The electronic box has an AL2 pin that can be
configured as an open-collector output (24 V/ 50
mA) under Digital Output AL2.
As source T , T or T
Proc Int
Under Threshold
triggering the alarm is defined.
Hysteresis: Setting the minimum hysteresis
Selecting Open/Closed under Mode defines the output as High or Low alarm.
Difference mode: When activated, no absolute value is used for the alarm threshold, but the difference
between process temperature and ambient temperature (TProc-TAmb).
can be selected.
Box
the threshold value for
-
