Summary of Contents for optris LaserSight

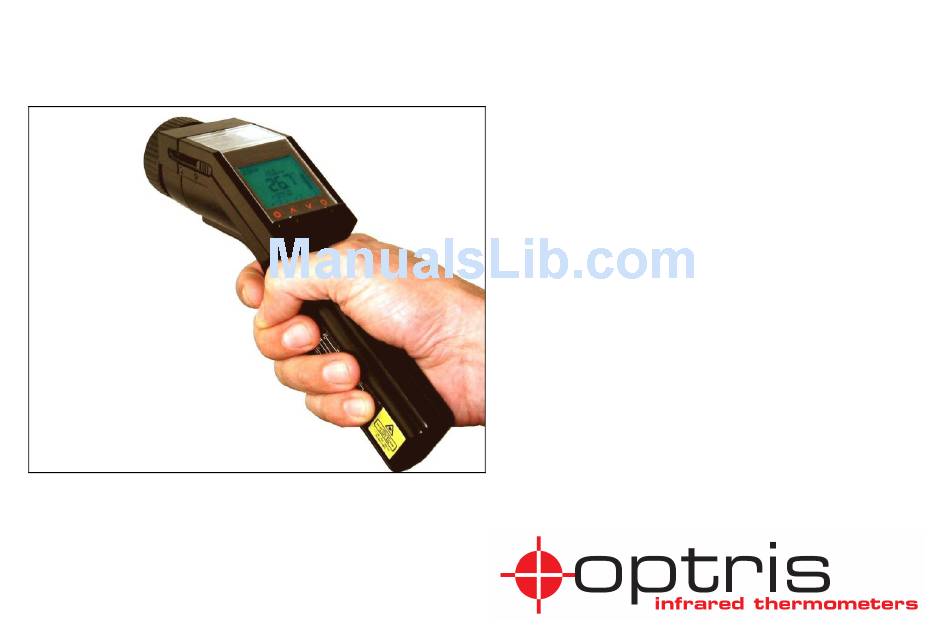

- Page 1 ® LaserSight optris ¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯ Operators manual...
- Page 3 Internet: www.optris.com hard case operators manual You will find the serial number on the unit. Always use this number when you contact the customer service concerning maintenance, additional order of components, spare parts or repairs. optris LS – E2006-01-A...

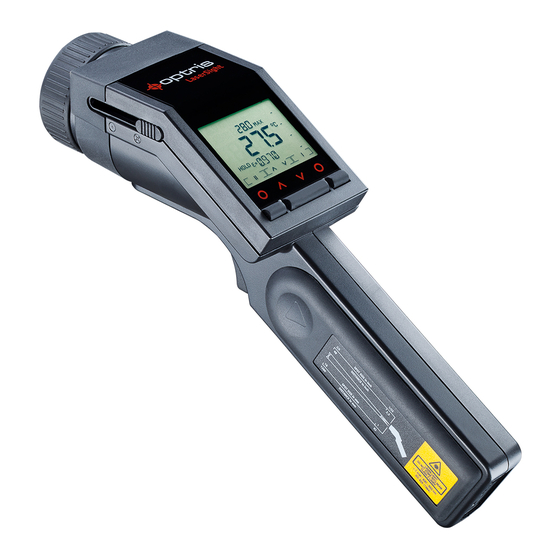

- Page 4 ® Thank you for choosing the optris LaserSight infrared thermometer. Comments on this manual Read the manual carefully before the initial start-up. The producer reserves the right to change the herein described specifications in case of technical advance of the product.
-
Page 5: Table Of Contents
Setup Menu 2 Factory Default Setting Temperature Unit Troubleshooting Buzzer Maintenance Flip-Display Principle of Operation Ambient Temperature Compensation Emissivity Reset Appendix A – Emissivity Table Metals Data Logger Appendix B – Emissivity Table Non Metals Storing Data optris LS – E2006-01-A... -
Page 6: Basic Operation
Your new LaserSight is already equipped with batteries, which are protected with a plastic strip against discharge during the transport (please remove). If the batteries are low the battery symbol will appear in the display. -
Page 7: Display
Lower display: HOLD, emissivity, probe temperature, Tamb-value, material and location name Assignment of buttons: Mode I I , Mode II II , Up Λ and Down V Bar graph display Up and Down buttons Mode buttons optris LS – E2006-01-A... -
Page 8: Measurement
[2] are turned by 180° [► Flip-Display]. Please note, that at vertical use (Flip mode) in context with a switched display also the assignment of the Mode buttons (I and II) will change. optris LS – E2006-01-A... -
Page 9: Measurement Functions
After taking a measurement the following functions can be displayed in turn by pressing the Λ -button (starting from the HOLD mode): Maximum reading [MAX] Minimum reading [MIN] Average reading [AVG] Difference reading [DIF] optris LS – E2006-01-A... -
Page 10: Display Backlight
Laser Sighting then Pull the Trigger (keep it pressed) and the II -button to activate/ deactivate the laser. The laser symbol in the display (only if the trigger is pulled) indicates the active laser. Default setting: optris LS – E2006-01-A... -
Page 11: Optics
(Diameter: 1mm). To switch between SF and CF mode please shift the Optic switch which is located beside the display, to the corresponding position (see right figure). optris LS – E2006-01-A... - Page 12 D = Distance from front of the unit to the object S = Spotsize depends on the distance. For a correct measurement the spot size should have at least the same size like the object or should be smaller than that at all times. optris LS – E2006-01-A...
-
Page 13: Setup Menu 1
It can range between 0 and 1 (0 and 100 %) [► Emissivity]. Setting range: 0,100...1,100 (values > 1,000 = amplification) Default setting: 0,950 HOLD⇒ II ⇒ε flashes⇒ Λ ⇒ ε INCREASE ⇒ V ⇒ ε DECREASE optris LS – E2006-01-A... -
Page 14: High Alarm
[► Buzzer] will be generated: Setting range: -35...900°C Default setting: -35°C HOLD⇒ II ⇒2x I ⇒L flashes ⇒ Λ ⇒ INCREASE ALUE ⇒ V ⇒ DECREASE ALUE ⇒ II ⇒A ⇒alarm symbol [beside L] on/ off CTIVATION EACTIVATION optris LS – E2006-01-A... -
Page 15: Long-Term Measurement (Lock Mode)
You can deactivate the Lock function in the same order, but starting from Measurement mode+Lock. The data logger functions are also available in the Lock mode [► Data Logger]. For a long-term temperature measurement of an object it is recommended to mount the unit on a tripod. optris LS – E2006-01-A... -
Page 16: Setup Menu 2
With this function you can switch the temperature unit in the display between °C und °F. Setting range: °C/ °F Default setting: °C 2. Menu⇒ II ⇒Temperature unit flashes ⇒ Λ ⇒°C/ °F ⇒ V ⇒°C/ °F optris LS – E2006-01-A... -
Page 17: Buzzer
(preferably in combination with the CF mode), the ability to switch allows a comfortable operation in both positions. Setting range: Auto/ Off/ On Default setting: Auto 2. Menu⇒ II ⇒2x I ⇒current setting ⇒ Λ ⇒A ⇒ V ⇒A optris LS – E2006-01-A... -
Page 18: Ambient Temperature Compensation
An activation of this function on the LS for the first time is only possible with the supplied software [► Device Setup]. 2. Menu⇒ II ⇒3x I ⇒Tamb ⇒ Λ ⇒ INCREASE ALUE ⇒ V ⇒ DECREASE ALUE ⇒ II ⇒ ACTIVATE DEACTIVATE optris LS – E2006-01-A... -
Page 19: Reset
I ⇒RES⇒ II ⇒RES flashes ⇒ II ⇒R ESET ⇒ I ⇒HOLD ⇒Trigger⇒Measure mode depends on the status of Tamb function The stored values in the data logger will not be deleted with the reset function. optris LS – E2006-01-A... -
Page 20: Data Logger
If the storage mode is started the next free position will automatically be shown. If you select an occupied position, the P flashes in the upper display. The storage function can also be executed after recall of the last value [► Recall (Last Value)]. optris LS – E2006-01-A... -
Page 21: Material And Location Names
Disc symbol + choosen position [Pxx] ⇒2x II ⇒1. character flashes ⇒ Λ ⇒ CHANGE ALUE ⇒ V ⇒ CHANGE ALUE ⇒ II ⇒next character flashes ⇒ Λ ⇒ CHANGE ALUE ⇒ V ⇒ CHANGE ALUE ⇒ I ⇒S after input of all characters: optris LS – E2006-01-A... -
Page 22: Data Logger Recall
P -1⇐ V ⇐P xx⇒ Λ ⇒P +1 TObj Material and location name ⇑ ⇓ ⇑ TObj Emissivity ⇑ ⇑ ⇓ Trigger+ Λ Λ ⇓ ⇓ MAX/ TObj TObj/ MAX/ MIN/ AVG/ DIF TExt [probe temperature] 3 + 4 optris LS – E2006-01-A... -
Page 23: Thermocouple Probe
If, in addition, the Tamb-function is activated, the lower display will toggle between Tamb value Emissivity, t/c probe temperature and [► Ambient Temperature Compensation] The t/c probe in combination with the LS can be used to determine an unknown emissivity value [► Emissivity]. optris LS – E2006-01-A... -
Page 24: Software Optrisconnect
Please connect the LS with your computer by using the special USB adapter cable. After you have started the software and the communication has been established the status line (below the time axis) will show the following information: optris LS – E2006-01-A... - Page 25 If you cannot establish a communication in spite of correct connection between LS and computer please choose the correct COM port under Menu: Setup\ Interface. If the USB adapter cable is connected this port is marked [Infrared Thermometer Adapter]: Language You can select the desired language under Menu: Setup\ Language. optris LS – E2006-01-A...
-
Page 26: Data Logger Functions
Logger temperatures, on which the set High-Alarm value has been exceeded, will be shown in the table red and bold. Logger temperatures, on which the set Low-Alarm value has been fallen below, will be shown in the table blue and bold. optris LS – E2006-01-A... -
Page 27: Time Stamp
Material- and Location Names You can assign descriptions to each logger position by choosing between 20 predefined descriptions or defining own descriptions. The table of the predefined descriptions can be edited with the software. optris LS – E2006-01-A... -
Page 28: Digital Displays
If the LS is connected to your computer and you start the software, the current temperature TObj will be shown as digital display (top right). You can add additional displays for the internal temperature TInt and the temperature of a connected t/c probe TExt [Menu: View\ Digital displays]. optris LS – E2006-01-A... -
Page 29: Diagram Functions
To start a measurement, please press the Start button in the tool bar [Menu: Measurement\ Start]. Control elements of the time axis: Scroll bar Zoom in (increase) Zoom out (decrease) Whole range H: Hold/ C: Continue optris LS – E2006-01-A... - Page 30 This option enables an optimum display of the temperature graph. A manual scaling can be done at any time using the control elements of the temperature axis. Activation of the desired option: Control elements (temperature axis) or [Menu: Diagram]. optris LS – E2006-01-A...
- Page 31 If none of both options is activated, a new measurement will be started after termination of one measurement and pressing of the Start button. In this case the former data are deleted! optris LS – E2006-01-A...
- Page 32 [TObj, TInt, TExt] Pen Width Pen width of the temperature graphs [1...5] Color Color of the temperature graph and digital displays Initial time Time frame on the x-axis, which should be displayed at the beginning of a measurement optris LS – E2006-01-A...
- Page 33 Max data count and Recording interval A change of the parameter Max data count will have influence on the Memory and Recording time. A change of the parameter Recording interval will have influence on the Recording time only. optris LS – E2006-01-A...
-
Page 34: Device Setup
To load the factory default settings into the unit please press the Factory Default button (same functionality as ► Reset). An additional query avoids a reset of the unit by mistake. immediately A change of parameters will be taken over from the connected unit and vice versa. optris LS – E2006-01-A... -
Page 35: Device Information
Device type Description from the manufacturer Firmware Rev. Revision number of the internal software Hardware Rev. Revision number of the internal hardware Serial No. Serial number of the unit IR Temperature range Measurement range (IR) optris LS – E2006-01-A... -
Page 36: Specification
(red/ blue) Bar graph display: auto scaling Laser: <1mW, class II, 630-650 nm SF: patented crosshair laser (size of crosshairs = spot size@ any distance) CF: two point laser (laser dot size = spot size@ focus distance) optris LS – E2006-01-A... - Page 37 420 g Vibration: IEC 68-2-6: 3G, 11 – 200Hz, any axis Shock: IEC 68-2-27: 50G, 11ms, any axis Tripod mounting: ¼ - 20 UNC at 23°C ambient temperature and object temperature: 20…900°C below 20°C and above 30°C optris LS – E2006-01-A...
-
Page 38: Factory Default Setting
LS – E2006-01-A... -
Page 39: Maintenance
20 minutes for thermal stabilization before the use to prevent the possibility of inaccurate temperature readings. In case of problems or questions, which may arise when you use the optris ® LS, please contact our service department. -
Page 40: Principle Of Operation
The specifications of the lens decisively determine the optical path of the infrared thermometer, which is characterized by the ratio Distance-to-Spot-size. The spectral filter selects the wavelength range, which is relevant for the temperature measurement. The detector in cooperation with the processing electronics transforms the emitted infrared radiation into electrical signals. optris LS – E2006-01-A... -
Page 41: Emissivity
Now set the emissivity to 0,95 and take the temperature of the sticker. Afterwards, determine the temperature of the adjacent area on the measuring object and adjust the emissivity according to the value of the temperature of the sticker. optris LS – E2006-01-A... - Page 42 (Appendix A and B). These are average values, only. The actual emissivity of a material depends on the following factors: temperature measuring angle geometry of the surface thickness of the material constitution of the surface (polished, oxidized, rough, sandblast) spectral range of the measurement transmissivity (e.g. with thin films) optris LS – E2006-01-A...
-
Page 43: Appendix A - Emissivity Table Metals
0,7-0,9 Iron non oxidized 0,05-0,2 non oxidized 0,05 rusted 0,5-0,7 Titanium polished 0,05-0,2 oxidized 0,5-0,9 oxidized 0,5-0,6 forged, blunt Wolfram polished 0,03-0,1 Iron, casted non oxidized Zinc polished 0,02 oxidized 0,6-0,95 oxidized Lead polished 0,05-0,1 optris LS – E2006-01-A... -
Page 44: Appendix B - Emissivity Table Non Metals
Glass 0,85 Grit 0,95 Gypsum 0,8-0,95 0,98 Limestone 0,98 Paint non alkaline 0,9-0,95 Paper any color 0,95 Plastic >50 µm non transparent 0,95 Rubber 0,95 Sand Snow Soil 0,9-0,98 Textiles 0,95 Water 0,93 Wood natural 0,9-0,95 optris LS – E2006-01-A...
