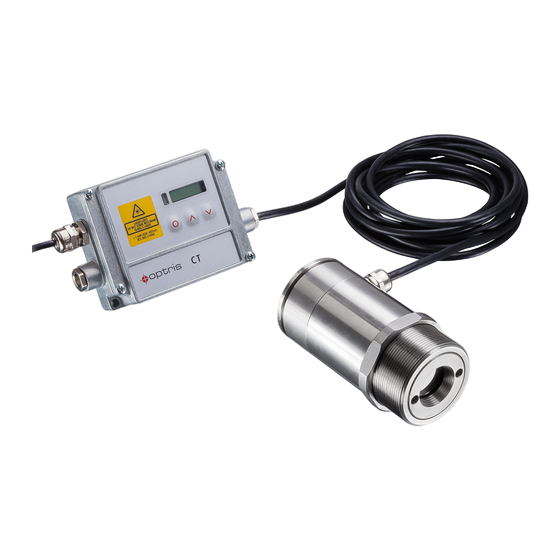

Operator's Manual
optris
®
CTlaser
LT/ LTF/ 05M/ 1M/ 2M/ 3M/ 4M/ MT/ F2/ F6/ G5/ G7/ P7
Infrared thermometer
1.800.561.8187
information@itm.com
www.
.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTlaser LT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for optris CTlaser LT

Summary of Contents for optris CTlaser LT

  • Page 1 Operator’s Manual optris ® CTlaser LT/ LTF/ 05M/ 1M/ 2M/ 3M/ 4M/ MT/ F2/ F6/ G5/ G7/ P7 Infrared thermometer 1.800.561.8187 information@itm.com www. .com...

  • Page 2: Table Of Contents

    Table of contents Table of contents Table of contents .............................. 3 General Notes ............................9 Intended use ............................9 Warranty ............................10 Scope of delivery ..........................10 Maintenance ............................. 11 Model Overview ..........................12 Technical Data ............................14 Factory settings ..........................14 General specifications ........................
  • Page 3 Measurement specifications [LT models] ..................20 Measurement specifications [05M model] ..................21 Measurement specifications [1M models] ..................22 Measurement specifications [2M models] ..................23 Measurement specifications [3M models] ..................24 Measurement specifications [4M/ MT models] ................. 25 2.10 Measurement specifications [F2/ F6/ P7 models]................26 2.11 Measurement specifications [G5/ G7 models] ..................
  • Page 4 Table of contents 3.1.3 Water cooled housing ....................... 51 3.1.4 Rail mount adapter for electronic box ..................52 3.1.5 CoolingJacket Advanced ......................53 3.1.6 Outdoor protective housing ....................... 53 3.1.7 IR app Connector ........................55 Electrical Installation ..........................56 Connection of the cables ........................56 4.1.1 Basic version..........................
  • Page 5 Power supply ............................ 62 Cable assembling ..........................62 Ground connection ........................... 64 4.4.1 05M, 1M, 2M, 3M models ......................64 4.4.2 4M model ..........................65 4.4.3 LT, LTF, MT, F2, F6, G5, G7, P7 models ................. 66 Exchange of the sensing head ......................67 Exchange of the head cable ......................
  • Page 6 Table of contents 4.7.5 I/O Pins (only for CTlaser 4M) ....................74 4.7.6 Alarms ............................76 4.7.7 Open collector output / AL2 ...................... 78 Operation ..............................79 Sensor setup ............................. 79 Aiming laser ............................91 Error messages ..........................93 IRmobile app ............................94 Software CompactConnect/ CompactPlus Connect ................
  • Page 7 7.2.3 ASCII-Protocol .......................... 99 7.2.4 Save parameter settings ......................100 Basics of Infrared Thermometry ......................101 Emissivity .............................. 102 Definition ............................102 Determination of unknown emissivity ..................... 103 Characteristic emissivity ......................... 104 Appendix A – Table of emissivity for metals ..................... 105 Appendix B –...

  • Page 8: General Notes

    1.1 Intended use Thank you for choosing the optris® CTlaser infrared thermometer. The sensors of the optris CTlaser series are noncontact infrared temperature sensors. They calculate the surface temperature based on the emitted infrared energy of objects [►8 Basics of Infrared Thermometry].

  • Page 9: Warranty

    ► All accessories can be ordered according to the referred part numbers in brackets [ ]. 1.2 Warranty Each single product passes through a quality process. Nevertheless, if failures occur contact the customer service at once. The warranty period covers 24 months starting on the delivery date. After the warranty is expired the manufacturer guarantees additional 6 months warranty for all repaired or substituted product components.

  • Page 10: Maintenance

    General Notes 1.4 Maintenance Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid tissue (moistened with water) or a lens cleaner (e.g. Purosol or B+W Lens Cleaner). Never use cleaning compounds which contain solvents (neither for the lens nor for the housing). 1.800.561.8187 information@itm.com www.

  • Page 11: Model Overview

    The sensors of the CTlaser series are available in the following basic versions: Model Model code Measurement range Spectral response Typical applications CTlaser LT -50 to 975 °C 8-14 µm non-metallic surfaces CTlaser F -50 to 975 °C 8-14 µm...
  • Page 12 General Notes 400 to 1650 °C 200 to 1450 °C CTlaser F2 4.24 µm measurement of CO -flame gases 400 to 1650 °C 200 to 1450 °C CTlaser F6 4.64 µm measurement of CO-flame gases 400 to 1650 °C 100 to 1200 °C 250 to 1650 °C CTlaser G5 5,0 µm...

  • Page 13: Technical Data

    2 Technical Data 2.1 Factory settings Smart Averaging means a dynamic average adaptation at high signal edges. [Activation via software only]. [►Appendix C – Smart Averaging] Signal output object temperature 0 – 5 V Emissivity 0.970 [LT/ LTF/ MT/ F2/ F6/ G5/ G7/ P7] 1.000 [05M/ 1M/ 2M/ 3M/ 4M] Transmissivity 1.000...
  • Page 14 Technical Data LT/ LTF 1MH1 2MH1 3MH1 3MH2 3MH3 Lower limit temperature 1000 range [°C] Upper limit temperature 2000 1050 1800 2200 1600 2000 1000 1500 1800 range [°C] 1200 1200 Lower alarm limit [°C] (Normally closed) Upper alarm limit [°C] 1600 1400 1600...
  • Page 15 G5HF Lower limit temperature range [°C] Upper limit temperature 1450 1650 1450 1650 1450 1650 1200 1200 range [°C] Lower alarm limit [°C] (Normally closed) Upper alarm limit [°C] 1200 1400 1200 1400 1200 1400 (Normally open) Lower limit signal output Upper limit signal output Temperature unit °C...

  • Page 16: General Specifications

    Technical Data 2.2 General specifications Sensing head Electronic box Environmental rating IP65 (NEMA-4) Ambient temperature -20...85 °C (4ML: -20…70 °C) Storage temperature -40...85 °C (3M: -40…125 °C) -40...85 °C Relative humidity 10...95 %, noncondensing Material Stainless steel Die casting zinc Dimensions 100 mm x 50 mm, M48x1.5 89 mm x 70 mm x 30 mm...

  • Page 17: Electrical Specifications

    Shock IEC 60068-2-27 (25G and 50G) Software (optional) CompactConnect Laser will turn off automatically at ambient temperatures >50 °C. The functionality of the LCD display can be limited at ambient temperatures below 0 °C. 2.3 Electrical specifications Power supply 8–36 VDC (4M: 8-30 VDC / 5 V USB / max. 1,2 W) Current draw Max.
  • Page 18 Technical Data Min. 100 kΩ load impedance Thermocouple 20 Ω Digital interfaces USB, RS232, RS485, Profibus DP, Modbus RTU, Ethernet (optional plug-in modules) Relay outputs 2 x 60 VDC/ 42 VAC , 0.4 A; optically isolated (optional plug-in module) Functional inputs F1-F3;...

  • Page 19: Measurement Specifications [Lt Models]

    2.4 Measurement specifications [LT models] Temperature range (scalable) -50...975 °C Spectral range 8...14 µm Optical resolution 75:1 50:1 System accuracy ±1 °C or ±1 % ±1,5 °C or ±1,5 % 1) 2) 3) Repeatability ±0.5 °C or ±0.5 % ±1 °C or ±1 % 1) 3) Temperature coefficient ±0,05 K/ K or ±0,05 %/ K...

  • Page 20: Measurement Specifications [05M Model]

    Technical Data 2.5 Measurement specifications [05M model] Temperature range (scalable) 1000…2000 °C Spectral range 0.525 µm Optical resolution 150:1 System accuracy ± 1 % T (≤ 1100 °C) 1) 2) 3) Meas ± (0.3 % T + 2 °C) (>1100 °C) Meas Repeatability ±...

  • Page 21: Measurement Specifications [1M Models]

    2.6 Measurement specifications [1M models] 1MH1 Temperature range (scalable) 485...1050 °C 650...1800 °C 800...2200 °C Spectral range 1,0 µm Optical resolution 150:1 300:1 System accuracy ±(0.3 % T +2 °C) 1) 2) 3) Meas Repeatability ±(0.1 % T +1 °C) 1) 3) Meas Temperature coefficient...

  • Page 22: Measurement Specifications [2M Models]

    Technical Data 2.7 Measurement specifications [2M models] 2MH1 Temperature range (scalable) 250...800 °C 385...1600 °C 490...2000 °C Spectral range 1.6 µm Optical resolution 150:1 300:1 System accuracy ±(0.3 % T +2 °C) 1) 2) 3) Meas Repeatability ±(0.1 % T +1 °C) 1) 3) Meas...

  • Page 23: Measurement Specifications [3M Models]

    2.8 Measurement specifications [3M models] 3MH1 3MH2 3MH3 Temperature range (scalable) 50...400 °C 100...600 °C 150...1000 °C 200...1500 °C 250...1800 °C Spectral range 2,3 µm Optical resolution 60:1 100:1 300:1 System accuracy ±(0,3 % T +2 °C) 3) 4) 5) Mess Repeatability ±(0,1 % T...

  • Page 24: Measurement Specifications [4M/ Mt Models]

    Technical Data 2.9 Measurement specifications [4M/ MT models] Temperature range (scalable) 0...500 °C 200...1450 °C 400...1650 °C Spectral range 2,2-6 µm 3,9 µm Optical resolution 33:1 45:1 System accuracy ±(0,3 % T +2 °C) ±1 % 1) 2) Mess Repeatability ±(0,1 % T +1 °C) ±0,5 % or 0,5 °C...

  • Page 25: Measurement Specifications [F2/ F6/ P7 Models]

    2.10 Measurement specifications [F2/ F6/ P7 models] Temperature range (scalable) 200...1450 °C 400...1650 °C 200...1450 °C 400...1650 °C 0…710 °C Spectral range 4,24 µm 4,64 µm 7,9 µm Optical resolution 45:1 System accuracy ±1 % ±1,5 °C or ±1 % 1), 2) Repeatability ±0,5 °C or ±0,5 %...

  • Page 26: Measurement Specifications [G5/ G7 Models]

    Technical Data 2.11 Measurement specifications [G5/ G7 models] G5HF G5H1F Temperature range (scalable) 100...1200 °C 250...1650 °C 200...1450 °C 400...1650 °C 100…1200 °C Optical resolution 5,0 µm 7,9 µm System accuracy 45:1 70:1 45:1 1) 2), 3) Repeatability ±1,5 °C or ±1 % 1) 3) Temperature coefficient ±0,05 K/ K or ±0,05 %/ K...

  • Page 27: Optical Charts

    As an alternative to the optical diagrams, the spot size calculator can also be used on the Optris website or via the Optris calculator app. The app can be downloaded for free from the Google Play store (see QR code). D = Distance from front of the...
  • Page 28 Technical Data Optics: SF D:S (focus distance) = 75:1/ 16mm@1200mm D:S (far field) = 24:1 Optics: CF1 D:S (focus distance) = 75:1/ 0.9mm@70mm D:S (far field) = 3.5:1 1.800.561.8187 information@itm.com www. .com...
  • Page 29 Optics: CF2 D:S (focus distance) = 75:1/ 1.9mm@150mm D:S (far field) = 7:1 Optics: CF3 D:S (focus distance) = 75:1/ 2.75mm@200mm D:S (far field) = 9:1 1.800.561.8187 information@itm.com www. .com...
  • Page 30 Technical Data Optics: CF4 D:S (focus distance) = 75:1/ 5.9mm@450mm D:S (far field) = 18:1 Optics: SF D:S (focus distance) = 50:1/ 24mm@1200mm D:S (far field) = 20:1 1.800.561.8187 information@itm.com www. .com...
  • Page 31 Optics: CF1 D:S (focus distance) = 50:1/ 1.4mm@70mm D:S (far field) = 3.5:1 Optics: CF2 D:S (focus distance) = 50:1/ 3mm@150mm D:S (far field) = 6:1 1.800.561.8187 information@itm.com www. .com...
  • Page 32 Technical Data Optics: CF3 D:S (focus distance) = 50:1/ 4mm@200mm D:S (far field) = 8:1 Optics: CF4 D:S (focus distance) = 50:1/ 9mm@450mm D:S (far field) = 16:1 1.800.561.8187 information@itm.com www. .com...
  • Page 33 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: FF D:S (focus distance) = 300:1/ 12mm@ 3600mm D:S (far field) = 115:1 05M/ 1ML/ 2ML Optics: FF D:S (focus distance) = 150:1/ 24mm@ 3600mm D:S (far field) = 84:1 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: SF D:S (focus distance) = 300:1/ 3,7mm@ 1100mm D:S (far field) = 48:1...
  • Page 34 Technical Data 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: CF2 D:S (focus distance) = 300:1/ 0,5mm@ 150mm D:S (far field) = 7,5:1 1ML/ 2ML Optics: CF2 D:S (focus distance) = 150:1/ 1mm@ 150mm D:S (far field) = 7:1 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: CF3 D:S (focus distance) = 300:1/ 0,7mm@ 200mm D:S (far field) = 10:1...
  • Page 35 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: CF4 D:S (focus distance) = 300:1/ 1,5mm@ 450mm D:S (far field) = 22:1 1ML/ 2ML Optics: CF4 D:S (focus distance) = 150:1/ 3mm@ 450mm D:S (far field) = 20:1 Optics: FF D:S (focus distance) = 100:1/ 36mm@ 3600mm D:S (far field) = 65:1 1.800.561.8187 information@itm.com...
  • Page 36 Technical Data Optics: FF D:S (focus distance) = 60:1/ 60mm@ 3600mm D:S (far field) = 45:1 Optics: SF D:S (focus distance) = 100:1/ 11mm@ 1100mm D:S (far field) = 38:1 Optics: SF D:S (focus distance) = 60:1/ 18.3mm@ 1100mm D:S (far field) = 30:1 1.800.561.8187 information@itm.com www.
  • Page 37 Optics: CF1 D:S (focus distance) = 100:1/ 0.85mm@ 85mm D:S (far field) = 4:1 Optics: CF1 D:S (focus distance) = 60:1/ 1.4mm@ 85mm D:S (far field) = 4:1 Optics: CF2 D:S (focus distance) = 100:1/ 1.5mm@ 150mm D:S (far field) = 7:1 Optics: CF2 D:S (focus distance) = 60:1/ 2.5mm@ 150mm D:S (far field) = 6:1...
  • Page 38 Technical Data Optics: CF3 D:S (focus distance) = 100:1/ 2mm@ 200mm D:S (far field) = 9:1 Optics: CF3 D:S (focus distance) = 60:1/ 3.4mm@ 200mm D:S (far field) = 8:1 Optics: CF4 D:S (focus distance) = 100:1/ 4.5mm@ 450mm D:S (far field) = 19:1 Optics: CF4 D:S (focus distance) = 60:1/ 7.5mm@ 450mm D:S (far field) = 17:1...
  • Page 39 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ G5H1F/ G7/ P7 Optics: SF D:S (focus distance) = 45:1/ 27mm@1200mm D:S (far field) = 25:1 Optics: SF D:S (focus distance) = 70:1/ 17mm@1200mm D:S (far field) = 33:1 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ G5H1F/ G7/ P7 Optics: CF1 D:S (focus distance) = 45:1/ 1.6mm@70mm...
  • Page 40 Technical Data MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ G5H1F/ G7/ P7 Optics: CF2 D:S (focus distance) = 45:1/ 3.4mm@150mm D:S (far field) = 6:1 Optics: CF2 D:S (focus distance) = 70:1/ 2.2mm@150mm D:S (far field) = 6.8:1 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ G5H1F/ G7/ P7 Optics: CF3 D:S (focus distance) = 45:1/ 4.5mm@200mm...
  • Page 41 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ G5H1F/ G7/ P7 Optics: CF4 D:S (focus distance) = 45:1/ 10mm@450mm D:S (far field) = 15:1 Optics: CF4 D:S (focus distance) = 70:1/ 6.5mm@450mm D:S (far field) = 17.7:1 Optics: FF D:S (focus distance) = 30:1/ 120mm@3600mm D:S (far field) = 25:1 1.800.561.8187 information@itm.com...
  • Page 42 Technical Data Optics: SF D:S (focus distance) = 30:1/ 36,7mm@1100mm D:S (far field) = 20:1 Optics: CF1 D:S (focus distance) = 30:1/ 2,4mm@70mm D:S (far field) = 3:1 1.800.561.8187 information@itm.com www. .com...
  • Page 43 Optics: CF2 D:S (focus distance) = 30:1/ 5mm@150mm D:S (far field) = 6:1 Optics: CF3 D:S (focus distance) = 30:1/ 6,7mm@200mm D:S (far field) = 8:1 1.800.561.8187 information@itm.com www. .com...
  • Page 44 Technical Data Optics: CF4 D:S (focus distance) = 30:1/ 15mm@450mm D:S (far field) = 15:1 1.800.561.8187 information@itm.com www. .com...

  • Page 45: Mechanical Installation

    3 Mechanical Installation • Keep the optical path free of any obstacles. • For an exact alignment of the head to the object activate the integrated double laser. [►5.2 Aiming laser] The CTlaser is equipped with a metric M48x1.5 thread and can be installed either directly via the sensor thread or with help of the supplied mounting nut (standard) and fixed mounting bracket (standard) to a mounting device available.
  • Page 46 Mechanical Installation Figure 2: Mounting bracket, adjustable in one axis [Order No. - ACCTLFB] – standard scope of supply 1.800.561.8187 information@itm.com www. .com...
  • Page 47 Figure 3: Electronic box 1.800.561.8187 information@itm.com www. .com...

  • Page 48: Accessories

    Mechanical Installation 3.1 Accessories 3.1.1 Air purge collar • Use oil-free, technically clean air only. • The needed amount of air (approx. 40...120 l/ min.) and pressure (approx. 1,1...8 bar) depends on the application and the installation conditions on-site. The lens must be kept clean at all times from dust, smoke, fumes and other contaminants in order to avoid reading errors.

  • Page 49: Mounting Bracket

    3.1.2 Mounting bracket This adjustable mounting bracket allows an adjustment of the sensor head in two axes. Figure 5: Mounting bracket, adjustable in two axes [Order No.: ACCTLAB] 1.800.561.8187 information@itm.com www. .com...

  • Page 50: Water Cooled Housing

    Mechanical Installation 3.1.3 Water cooled housing To avoid condensation on the optics an air purge collar is recommended. The sensing head is for application at ambient temperatures up to 85 °C. For applications at higher ambient temperatures we recommend the usage of the optional water cooled housing (operating temperature up to 175 °C) and the optional high temperature cable (operating temperature up to 180 °C).

  • Page 51: Rail Mount Adapter For Electronic Box

    3.1.4 Rail mount adapter for electronic box With the rail mount adapter the CTlaser electronics can be mounted easily on a DIN rail (TS35) according EN50022. Figure 7: Rail mount adapter [Order No.: ACCTRAIL] 1.800.561.8187 information@itm.com www. .com...

  • Page 52: Coolingjacket Advanced

    Order No.: ACCXLCJA For detailed information see installation manual. 3.1.6 Outdoor protective housing The CTlaser LT models and the USB server can also be used for outdoor applications by using the outdoor protective housing (Order No.: ACCTLOPH24ZNS). 1.800.561.8187 information@itm.com www.
  • Page 53 Figure 8: Outdoor protective housing for CTlaser LT with Figure 9: Outdoor protective housing with wall mount integrated heater, incl. prot. window (ZnS) and air purge collar/ 24 V DC For detailed information see installation manual. 1.800.561.8187 information@itm.com www. .com...

  • Page 54: Ir App Connector

    Mechanical Installation 3.1.7 IR app Connector The IR App Connector is used to connect the sensor to a smartphone or tablet (► 6 IRmobile app). The connector cable can be also used for the connection to your PC in combination with the software CompactConnect which can be downloaded for free under Figure 10: IR app Connector: USB programming adaptor [Order No.: ACCTIAC (for CTlaser 4M: ACCTMIAC)] 1.800.561.8187...

  • Page 55: Electrical Installation

    4 Electrical Installation 4.1 Connection of the cables • For the Cooling jacket the connector version is needed. • Connector Kit: Subsequent conversion of a standard CTlaser sensor into the connector version (Order No.: ACCTLCONK). 4.1.1 Basic version The basic version is supplied with a connection cable (connection sensing head-electronics).

  • Page 56: Connector Version

    Electrical Installation 4.1.2 Connector version Use the original ready-made, fitting connection cables which are optionally available. Consider the pin assignment of the connector (see Figure 13). This version has a connector plug integrated in the sensor backplane Figure 12: Connector version 1.800.561.8187 information@itm.com www.

  • Page 57: Pin Assignment Of Connector Plug (Connector Version Only)

    4.1.3 Pin assignment of connector plug (connector version only) Designation Wire color (original sensor cable) Detector signal (+) Yellow Temperature probe head Brown Temperature probe head White Detector signal (–) Green Ground Laser (–) Grey Figure 13: Connector plug Power supply Laser (+) Pink (exterior view) Not used...

  • Page 58: Designation [Models Lt/ Ltf/ Mt/ F2/ F6/ G5/ G7/ P7]

    Electrical Installation 4.1.4 Designation [models LT/ LTF/ MT/ F2/ F6/ G5/ G7/ P7] +8...36 VDC Power supply Ground (0 V) of power supply Ground (0 V) of internal in- and outputs OUT-AMB Analog output head temperature (mV) OUT-TC Analog output thermocouple (J or K) OUT-mV/mA Analog output object temperature (mV or mA) F1-F3...

  • Page 59: Designation [Models 05M/ 1M/ 2M/ 3M]

    4.1.5 Designation [models 05M/ 1M/ 2M/ 3M] +8…36 VDC Power supply Ground (0 V) of power supply Ground (0 V) of internal in- and outputs Alarm 2 (Open collector output) OUT-TC Analog output thermocouple (J or K) OUT-mV/mA Analog output object temperature (mV or mA) F1-F3 Functional inputs Ground (0 V)

  • Page 60: Designation [Models 4M]

    Electrical Installation 4.1.6 Designation [models 4M] +8…30 VDC Power supply Ground (0 V) of power supply Ground (0 V) of internal in- and outputs Alarm 2 (Open collector output) OUT-1 Analog output mA, mV, TCK OUT-2 Analog output mA, mV, TCK I/O1-I/O3 In- and outputs Ground (0 V)

  • Page 61: Power Supply

    4.2 Power supply Do never connect a supply voltage to the analog outputs as this will destroy the output! The CTlaser is not a 2-wire sensor! Use a separate, stabilized power supply unit with an output voltage in the range of 8–36 VDC (CTlaser 4M: 8–30 VDC) which can supply 160 mA.
  • Page 62 Electrical Installation 3. Spread the strands and fix the shield between two of the metal washers. 4. Insert the cable into the cable gland until the limit stop and screw the cap tight. Every single wire may be connected to the according screw clamps according to their colors. Figure 17: Cable assembling 1.800.561.8187 information@itm.com...

  • Page 63: Ground Connection

    4.4 Ground connection 4.4.1 05M, 1M, 2M, 3M models At the bottom side of the mainboard PCB you will find a connector (jumper) which has been placed from factory side as shown in the picture [bottom and middle pin connected]. In this position the ground connections (GND power supply/ outputs) are connected with the ground of the electronics housing.

  • Page 64: Model

    Electrical Installation 4.4.2 4M model On the left side of the mainboard PCB you will find a black switch which is connecting factory-default the ground connections (GND power supply/ outputs) with the ground of the electronics housing. To avoid ground loops and related signal interferences in industrial environments it might be necessary to interrupt this connection.

  • Page 65: Ltf, Mt, F2, F6, G5, G7, P7 Models

    4.4.3 LT, LTF, MT, F2, F6, G5, G7, P7 models At the bottom side of the mainboard PCB you will find a connector (jumper) which has been placed from factory side as shown in the picture [left and middle pin connected].

  • Page 66: Exchange Of The Sensing Head

    Electrical Installation 4.5 Exchange of the sensing head • After exchanging a head the calibration code of the new head must be entered into the electronics. • After modification of the code a reset is necessary to activate the changes. [►5 Operation] •...

  • Page 67: Exchange Of The Head Cable

    To enter the code press the Up and Down key (keep pressed) and then the Mode key. The display shows HCODE and then the 4 signs of the first block. With Up and Down each sign can be changed. Mode switches to the next sign or next block.

  • Page 68: Outputs And Inputs

    Electrical Installation 1. For a dismantling on the head side open the cover plate on the back side of the head first. Then remove the terminal block and loose the connections. 2. After the new cable has been installed proceed in reversed order. Be careful the cable shield is properly connected to the head housing.
  • Page 69 Output signal Range Connection pin on CTlaser board Voltage 0 ... 5 V OUT-mV/mA Voltage 0 ... 10 V OUT-mV/mA Current 0 ... 20 mA OUT-mV/mA Current 4 ... 20 mA OUT-mV/mA Thermocouple TC J OUT-TC Thermocouple TC K OUT-TC Output channel 2 [on LT/ G5/ G7/ P7 only] The connection pin OUT AMB is used for output of the head temperature [-20–180 °C as 0–5 V or 0–10 V signal].

  • Page 70: Digital Interfaces

    Electrical Installation 4.7.2 Digital Interfaces The Ethernet interface requires a minimum 12 V supply voltage. Pay attention to the notes on the according interface manuals. CTlaser sensors can be optionally equipped with an USB-, RS232-, RS485-, Profibus DP-*, Modbus RTU-* or Ethernet-interface.

  • Page 71: Relay Outputs

    4.7.3 Relay outputs • The switching thresholds are in accordance with the values for alarm 1 and 2 [►4.7.6 Alarms]. The alarm values are set according to the ►2.1 Factory settings. For advanced settings (change of low- and high alarm) a digital interface (USB, RS232) and the software is needed.

  • Page 72: Functional Inputs (Not For Ctlaser 4M)

    Electrical Installation 4.7.4 Functional inputs (not for CTlaser 4M) The three functional inputs F1 – F3 can be programmed with the CompactConnect software, only. F1 (digital): trigger (a 0 V level on F1 resets the hold functions) F2 (analog): external emissivity adjustment [0–10 V: 0 V ►  = 0.1; 9 V ►  = 1; 10 V ►  = 1,1] F3 (analog): external compensation of ambient temperature/ the range is scalable via software [0–10 V ►...

  • Page 73: I/O Pins (Only For Ctlaser 4M)

    4.7.5 I/O Pins (only for CTlaser 4M) The CT 4M has three digital pins which can be programmed as outputs (digital) or as inputs (digital or analog) using the CompactPlus Connect software. The following functions are available: Function I/O pin acts Description Alarm Output digital...
  • Page 74 Electrical Installation Hold Reset Low Input digital Reset of Peak or valley hold (High-Low signal) Hold Reset High Input digital Reset of Peak or valley hold (Low-High signal) Emissivity external Input analog The emissivity value can be adjusted via a 0-10 V signal on the I/O pin (scaling possible via software).

  • Page 75: Alarms

    4.7.6 Alarms All alarms (alarm 1, alarm 2, output channel 1 and 2 if used as alarm output) have a fixed hysteresis of 2 K. The CTlaser has the following Alarm features: Output channel 1 and 2 [channel 2 on LT/ G5/ G7/ P7 only] To activate, the according output channel has to be switched into digital mode.
  • Page 76 Electrical Installation Both alarms affect the color of the LCD display: BLUE: alarm 1 active RED: alarm 2 active GREEN: no alarm active Alarm 1 Normally closed/ Low-Alarm Alarm 2 Normally open/ High-Alarm For extended setup like definition as low or high alarm [via change of normally open/ closed], selection of the signal source [T ] a digital interface (e.g.

  • Page 77: Open Collector Output / Al2

    4.7.7 Open collector output / AL2 • The transistor acts as a switch. In case of alarm, the contact is closed. • A load/consumer (Relay, LED or a resistor) must always be connected. • The alarm voltage (here 24V) must not be connected directly to the alarm output (short circuit).

  • Page 78: Operation

    Operation 5 Operation After power up the unit the sensor starts an initializing routine for some seconds. During this time the display will show INIT. After this procedure the object temperature is shown in the display. The display backlight color changes accordingly to the alarm settings [►4.7.6 Alarms]. 5.1 Sensor setup •...
  • Page 79 Display Mode [Sample] Adjustment Range S ON Laser Sighting [On] ON/ OFF 142.3C Object temperature (after signal processing) [142,3 °C] fixed 127CH Head temperature [127 °C] fixed 25CB Box temperature [25 °C] fixed 142CA Current object temperature [142 °C] fixed ð...
  • Page 80 Operation Activating (ON) and Deactivating (OFF) of the Sighting Laser. By pressing Up or Down S ON the laser can be switched on and off. Selection of the Output signal. By pressing Up or Down the different output signals can ð...
  • Page 81 After the hold time the signal will drop down to the second highest value or will descend by 1/8 of the difference between the previous peak and the minimum value during the hold time. This value will be held again for the specified time. After this the signal will drop down with slow time constant and will follow the current object temperature.
  • Page 82 Operation Signal graph with P---- ▬ T with Peak Hold (Hold time = 1s) Process ▬ T without post processing Actual Setup of the Lower limit of temperature range. The minimum difference between lower and upper limit is 20 K. If you set the lower limit to a value ≥ upper limit the upper limit will be adjusted to [lower limit + 20 K] automatically.
  • Page 83 n 500.0 Setup of the Upper limit of the temperature range. The minimum difference between upper and lower limit is 20 K. The upper limit can only be set to a value = lower limit + 20 K. [ 0.00 Setup of the Lower limit of the signal output.
  • Page 84 Operation XHEAD Especially if there is a big difference between the ambient temperature at the object and the head temperature the use of ambient temperature compensation is recommended. Setup of the Ambient temperature compensation. In dependence on the emissivity value of the object a certain amount of ambient radiation will be reflected from the object surface.
  • Page 85 CTlaser 4M Mode [Sample] Display Display TPROC 320.9 Process temperature (after signal processing) [320,9 °C] fixed T INT 50.1 Detector Temperature [50,1 °C] fixed T BOX 38.6 Electronic box Temperature [38,6 °C] fixed EMISS 1.000 Emissivity [1,000] 0,100 ... 1,100 TRANS 1.000 Transmission [1,000] 0,100 ...
  • Page 86 Operation setting is 1.000 = 100 % (if no protective window etc. is used). AVG 0.020 Setup of Average time. In this mode an arithmetic algorithm will be performed to smoothen the signal. The set time is the time constant. This function can be combined with all other post processing functions.
  • Page 87 hold. The sensor waits for local minima. Minimum values which are higher than their predecessors will only be taken over if the temperature has exceeded the Threshold value beforehand. If Hysteresis is activated a minima in addition must increase by the value of the hysteresis before the algorithm takes it as a new minimum value.
  • Page 88 Operation Signal Graphs ▬ T with Peak Hold (Hold time = 1s) Proc ▬ T without post processing 1.800.561.8187 information@itm.com www. .com...
  • Page 89 ▬ T with Advanced peak hold (Threshold = 80 °C/ Hysteresis = 20 °C) Proc ▬ T without post processing 1.800.561.8187 information@itm.com www. .com...

  • Page 90: Aiming Laser

    Operation 5.2 Aiming laser The CTlaser has an integrated double laser aiming which helps for the alignment of the sensor. Within the two laser points lies the measurement spot. At the focus point of the according optics [►2.12 Optical charts] both lasers are crossing and showing as one dot the minimum spot.
  • Page 91 Figure 24: Identification of the laser The laser can be activated/ deactivated via the programming keys on the unit or via the software. If the laser is activated a yellow LED is shining (beside temperature display). 1.800.561.8187 information@itm.com www. .com...

  • Page 92: Error Messages

    Operation 5.3 Error messages The display of the sensor can show the following error messages: LT/ LTF/ MT/ F2/ F6/ G5/ G7/ P7 models: 05M/ 1M/ 2M/ 3M models: OVER Object temperature too high 1. Digit: UNDER Object temperature too low No error ^^^CH Head temperature too high...

  • Page 93: Irmobile App

    6 IRmobile app The CTlaser sensor has a direct connection to an Android smartphone or tablet. All you have to do is download the IRmobile app for free in the Google Play store. This can also be done via the QR code. An IR app connector is required for connection to the device (Part- No.: ACCTIAC).
  • Page 94 ➢ Integrated simulator Supported for: ➢ Optris pyrometers: Compact series, high performance series and video thermometers ➢ Optris IR cameras: PI and Xi series ➢ For android devices running 5.0 or higher with a micro USB or USB-C port supporting USB-OTG (On The Go) 1.800.561.8187...

  • Page 95: Software Compactconnect/ Compactplus Connect

    7 Software CompactConnect/ CompactPlus Connect Minimum system requirements: • Windows 7, 8, 10 • USB interface • Hard disc with at least 30 MByte of free space • At least 128 MByte RAM • CD-ROM drive • A detailed description is provided on the downloaded software package. •...
  • Page 96 Software CompactConnect/ CompactPlus Connect Main Features: ▪ Graphic display temperature trends automatic data logging analysis documentation ▪ Complete sensor setup and remote controlling ▪ Adjustment of signal processing functions ▪ Programming of outputs and functional inputs CompactConnect CompactPlus Connect 1.800.561.8187 information@itm.com www.

  • Page 97: Communication Settings

    7.2 Communication settings For further information see protocol and command description on the software package CompactConnect or CompactPlus Connect in the directory: \Commands. 7.2.1 Serial Interface Baud rate: 9.6...115.2 kBaud (adjustable on the unit or via software) CTlaser 4M: 115,2 or 921,6 kBaud (adjustable on the unit or via software) Data bits: Parity: none...

  • Page 98: Ascii-Protocol

    Software CompactConnect/ CompactPlus Connect 7.2.3 ASCII-Protocol To switch to the ASCII protocol, use the following command: Decimal: HEX: 0x83 Data, Answer: byte 1 Result: 0 – Binary protocol 1 – ASCII protocol 1.800.561.8187 information@itm.com www. .com...

  • Page 99: Save Parameter Settings

    7.2.4 Save parameter settings After switch-on of the CTlaser sensor the flash mode is active. This means, changed parameter settings will be saved in the internal Flash-EEPROM and will be kept also after the sensor is switched off. If the settings need to change continuously the flash mode can be switched off by using the following command: Decimal: HEX:...

  • Page 100: Basics Of Infrared Thermometry

    Basics of Infrared Thermometry Basics of Infrared Thermometry Depending on the temperature each object emits a certain amount of infrared radiation. A change in the temperature of the object is accompanied by a change in the intensity of the radiation. For the measurement of “thermal radiation”...

  • Page 101: Emissivity

    9 Emissivity 9.1 Definition The intensity of infrared radiation, which is emitted by each body, depends on the temperature as well as on the radiation features of the surface material of the measuring object. The emissivity (ε – Epsilon) is used as a material constant factor to describe the ability of the body to emit infrared energy.

  • Page 102: Determination Of Unknown Emissivity

    Emissivity 9.2 Determination of unknown emissivity ► First determine the actual temperature of the measuring object with a thermocouple or contact sensor. Second, measure the temperature with the infrared thermometer and modify the emissivity until the displayed result corresponds to the actual temperature. ►...

  • Page 103: Characteristic Emissivity

    9.3 Characteristic emissivity In case none of the methods mentioned above help to determine the emissivity you may use the emissivity table ►Appendix A and Appendix B. These are average values only. The actual emissivity of a material depends on the following factors: •...

  • Page 104: Appendix A - Table Of Emissivity For Metals

    Appendix A – Table of emissivity for metals Appendix A – Table of emissivity for metals Material typical Emissivity Spectral response 1,0 µm 1,6 µm 5,1 µm 8-14 µm Aluminium non oxidized 0,1-0,2 0,02-0,2 0,02-0,2 0,02-0,1 polished 0,1-0,2 0,02-0,1 0,02-0,1 0,02-0,1 roughened 0,2-0,8...
  • Page 105 Material typical Emissivity Spectral response 1,0 µm 1,6 µm 5,1 µm 8-14 µm Lead polished 0,35 0,05-0,2 0,05-0,2 0,05-0,1 roughened 0,65 oxidized 0,3-0,7 0,2-0,7 0,2-0,6 Magnesium 0,3-0,8 0,05-0,3 0,03-0,15 0,02-0,1 Mercury 0,05-0,15 0,05-0,15 0,05-0,15 Molybdenum non oxidized 0,25-0,35 0,1-0,3 0,1-0,15 oxidized 0,5-0,9 0,4-0,9...

  • Page 106: Appendix B - Table Of Emissivity For Non-Metals

    Appendix B – Table of emissivity for non-metals Appendix B – Table of emissivity for non-metals Material typical Emissivity Spectral response 1,0 µm 2,2 µm 5,1 µm 8-14 µm Asbestos 0,95 Asphalt 0,95 0,95 Basalt Carbon non oxidized 0,8-0,9 0,8-0,9 0,8-0,9 graphite 0,8-0,9...

  • Page 107: Appendix C - Smart Averaging

    Appendix C – Smart Averaging The average function is generally used to smoothen the output signal. With the adjustable parameter time this function can be optimal adjusted to the respective application. One disadvantage of the average function is that fast temperature peaks which are caused by dynamic events are subjected to the same averaging time.

  • Page 108: Appendix D - Declaration Of Conformity

    Appendix D – Declaration of Conformity Appendix D – Declaration of Conformity 1.800.561.8187 information@itm.com www. .com...

This manual is also suitable for:

Ctlaser ltfCtlaser 05mCtlaser 1mCtlaser 2mCtlaser 3mCtlaser 4m ... Show all
