2.6.3. Calibration

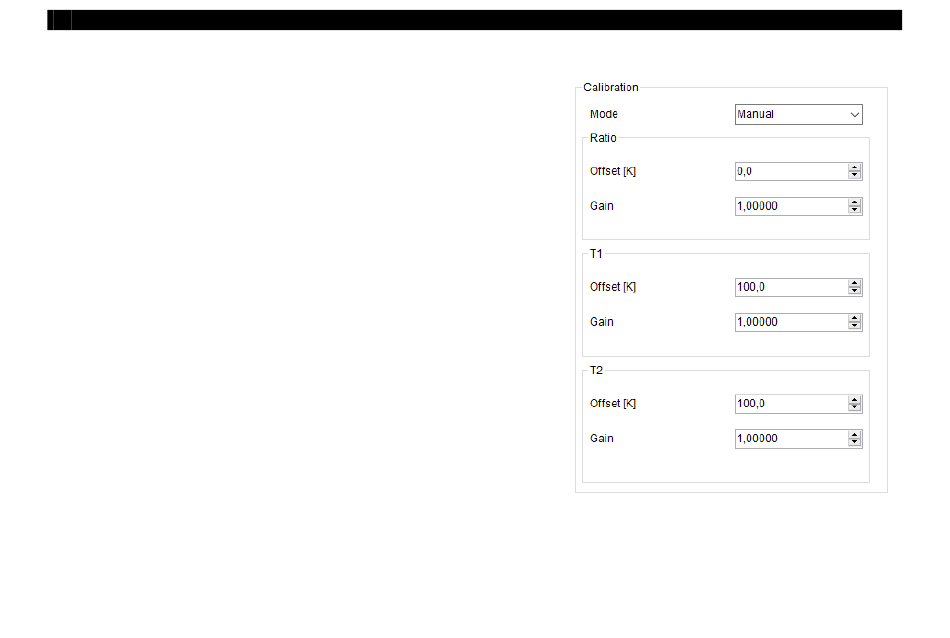

In the Advanced Settings tab, three different modes can be
selected to perform a calibration of the device:
▪
Manual
▪
1 Point (Calibration)
▪
2 Point (Calibration)
These amplification factors can be entered for the Ratio, T1
and T2 temperature.
Manual Calibration
For certain applications or under certain circumstances a
temperature offset or a change of the gain for the temperature
curve may be useful.
The factory default settings for Offset and Gain are:
▪ Offset:
0,0 K
▪ Gain:
1,000
A changed Offset causes a parallel shifting of the temperature curve and therewith it has a linear effect on
the temperature reading (change constant independent on process temperature). A change of the Gain will
have a non-linear effect on the temperature reading (change depends on process temperature).
-
