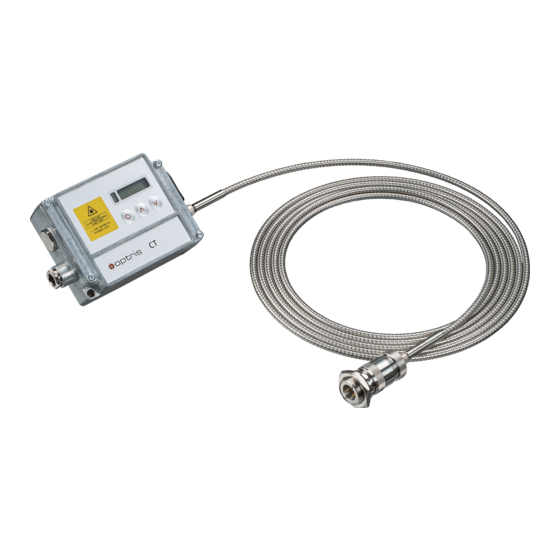

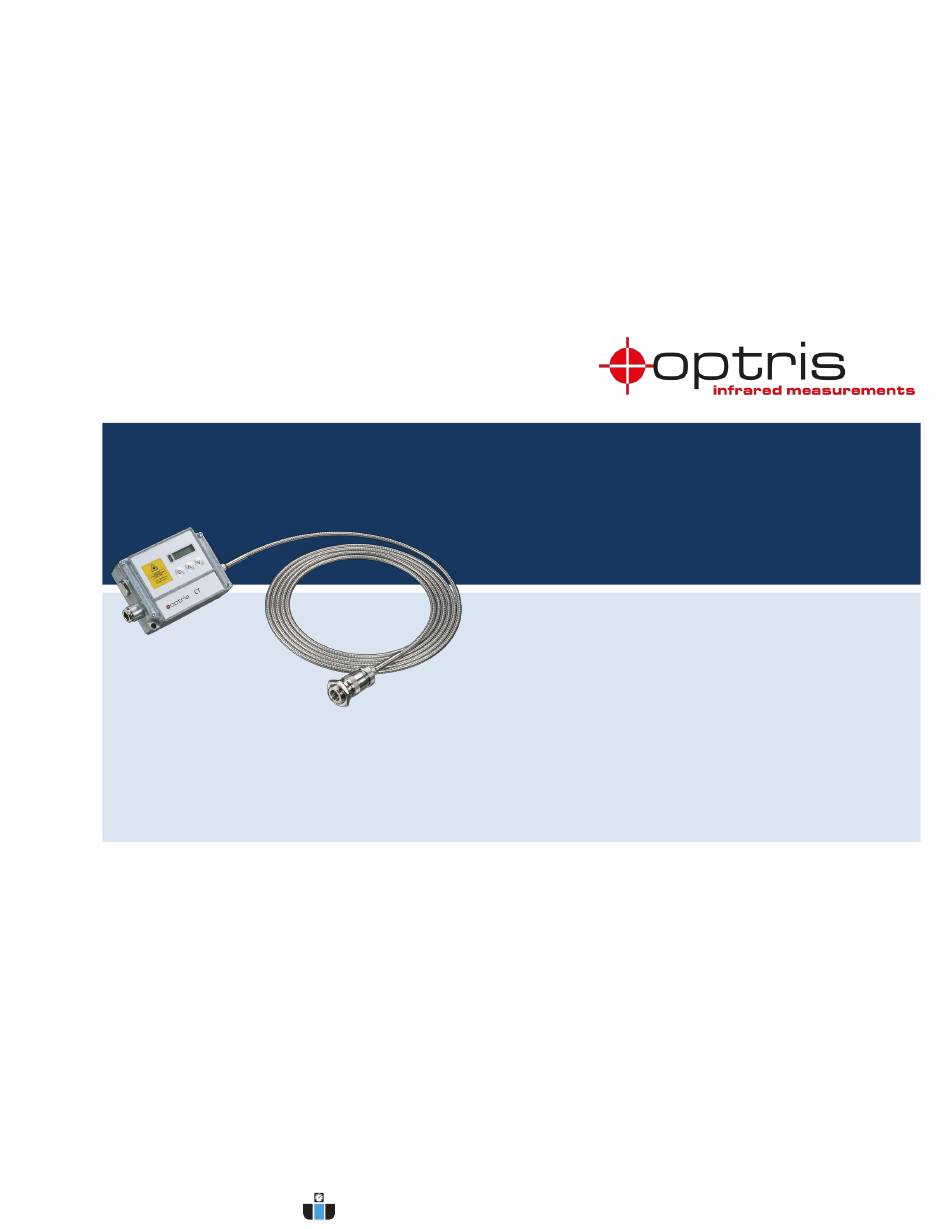

- Page 1 Operator‘s Manual ® optris CTratio 1M/ 2M Fiber Optics Ratio Thermometer 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Table of Contents ............................. 3 General Information ..........................7 Description ............................7 Warranty ............................9 Scope of Supply ..........................9 Maintenance ........................... 10 Safety Note ............................. 10 Cautions ............................10 Factory Default Settings ......................... 11 Technical Data ............................ - Page 3 Measurement Specifications [2M models] ..................16 Optics ............................. 17 Mechanical Installation .......................... 20 Accessories ............................ 25 Laser Sighting ..........................29 Electrical Installation ..........................30 Cable Connections ......................... 30 Ground Connection ........................33 Outputs and Inputs ..........................34 Analog Output ..........................34 I/O pins ............................
- Page 4 Table of Contents Operating ..............................39 Sensor Setup ..........................39 IRmobile app ............................43 Software CompactPlus Connect ......................45 Installation ............................45 Communication Settings ........................ 47 8.2.1 Serial Interface ........................... 47 8.2.2 Protocol ............................47 Basics of Infrared Thermometry......................48 The Ratio Principle .........................
- Page 5 10.4 Characteristic Slope Values ......................53 10.5 Determination of unknown Slope values ..................53 10.6 Attenuation ............................. 53 Appendix A – Emissivity Table Metals ......................55 Appendix B – Emissivity Table Non Metals ....................57 Appendix C – Smart Averaging ........................58 Appendix D –...
-
Page 6: General Information
1.1 Description Thank you for choosing the optris® CTratio infrared thermometer. The sensors of the optris CTratio series are noncontact infrared temperature sensors. They calculate the surface temperature based on the emitted infrared energy of objects. The CTratio can work in the 1-color-mode as well as in the ratio- or 2-color-mode [►9 Basics of Infrared Thermometry]. - Page 7 The CTratio sensing head is a sensitive optical system. Please use only the thread for mechanical installation. • Avoid abrupt changes of the ambient temperature. • Avoid mechanical violence on the head – this may destroy the system (expiry of warranty). •...
-
Page 8: Warranty
General Information 1.2 Warranty Each single product passes through a quality process. Nevertheless, if failures occur please contact the customer service at once. The warranty period covers 24 months starting on the delivery date. After the warranty is expired the manufacturer guarantees additional 6 months warranty for all repaired or substituted product components. -
Page 9: Maintenance
1.4 Maintenance Lens cleaning: Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid tissue (moistened with water) or a lens cleaner (e.g. Purosol or B+W Lens Cleaner). Never use cleaning compounds which contain solvents (neither for the lens nor for the housing). 1.5 Safety Note The CTratio is equipped with an integrated laser that serves to align the optics with the target. -
Page 10: Factory Default Settings
General Information 1.7 Factory Default Settings The unit has the following presetting at time of delivery: Output 1 Analog: TProc/ max. temperature range (according to model) = 4-20 mA Output 2 Analog: Attenuation/ 0-100 % = 0-20 mA Emissivity 1,000 Slope 1,000 Averaging (AVG) - Page 11 Smart Averaging means a dynamic average adaptation at high signal edges [activation via software only]. ►Appendix C – Smart Averaging 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 12: Technical Data
Technical Data 2 Technical Data 2.1 General Specifications Sensing head Electronic box Environmental rating IP65 (NEMA-4) 0...50 °C (2M) / 0…60 °C (1M) Ambient Temperature -20...200 °C (optional to 315 °C) Storage temperature -40...200 °C -40...85 °C Relative humidity 10...95%, non condensing Material stainless steel die casting zinc... -
Page 13: Electrical Specifications
2.2 Electrical Specifications Power Supply 8–30 VDC Power max. 5 W Aiming laser 520 nm, <1 mW, On/ Off via programming keys or software Outputs/ analog 2x 0/ 4–20 mA (12 bit) / optional: 2x 0/ 4–20 mA (16 bit) isolated Digital I/O pins 3 programmable in-/ outputs, usable as: •... -
Page 14: Measurement Specifications [1M Models]
Technical Data 2.3 Measurement Specifications [1M models] 1MH1 1 color: 900…3000 °C Temperature range (scalable) 1 color: 450...1400 °C 1 color: 650...2000 °C 2 color: 1000…3000 °C 2 color: 525...1400 °C 2 color: 700...2000 °C Spectral range 0,8 - 1,1 µm Optical resolution 38:1 100:1... -
Page 15: Measurement Specifications [2M Models]
2.4 Measurement Specifications [2M models] 2MH1 1 color: 500…3000 °C Temperature range (scalable) 1 color: 250...1000 °C 1 color: 375...1500 °C 2 color: 550…3000 °C 2 color: 275...1000 °C 2 color: 400...1500 °C Spectral range 1,45 - 1,75 µm Optical resolution 38:1 50:1 100:1... -
Page 16: Optics
As an alternative to the optical diagrams, the spot size calculator can also be used on the Optris website or via the Optris calculator app. The app can be downloaded for free from the Google Play Store (see QR code). - Page 17 1ML / 2ML: SF optics (D:S=38:1) Spot size 13,2 19,7 26,3 39,5 52,6 65,8 131,6 Measurement distance 1000 1500 2000 2500 5000 2MH: SF optics (D:S=50:1) Spot size Measurement distance 1000 1500 2000 2500 5000 1MH / 1MH1 / 2MH1: SF optics (D:S=100:1) Spot size Measurement distance 1000...
- Page 18 Technical Data Sensor placement [1C mode] The size of the measuring object and the optical resolution of the infrared thermometer determine the maximum distance between sensing head and measuring object. In order to prevent measuring errors the object should fill out the field of view of the optics completely. Consequently, the spot should at all times have at least the same size like the object or should be smaller than that.
-
Page 19: Mechanical Installation
3 Mechanical Installation The CTratio sensing heads are equipped with a metrical M18x1-thread and can be installed either directly via the sensor thread or with help of the hex nuts (1 piece included in scope of supply) to the mounting bracket available. - Page 20 Mechanical Installation • Please make sure that the minimum bending radius of the fiber optics of 29 mm for 1MH/ 1MH1/ 2MH1, 54 mm for 2MH and 80 mm for 1ML/ 2ML will be considered during installation. • If the fiber or measuring head is defective, the device must be sent in. A recalibration is necessary.
- Page 21 Electronic box The electronic box is also available with closed cover (display and programming keys with no access from outside) [ACCTCOV]. 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 22 Mechanical Installation Fiber connection at sensor head and electronic box When mechanically connecting the fiber to the sensor head and the electronics box, the correct sequence must be ensured. Both connections are labeled with the corresponding side ("Head" and “Box"). Fiber connection sensor head „Head“...
- Page 23 Focusing of the sensor head The CTratio pyrometer is equipped with a vario optics. This enables you to focus the device from a distance of 300 mm to infinity. To focus the sensor, loosen the knurled screw (1) on the head. Now you can focus the device on the head (2).
-
Page 24: Accessories
Mechanical Installation 3.1 Accessories Mounting bracket, adjustable in one axis Air purge collar [ACCTAPMH] [ACCTFBMH] The lens must be kept clean at all times from dust, smoke, fumes and other contaminants in order to avoid reading errors (in the 1-color-mode). These effects can be reduced by using an air purge collar. Make sure to use oil-free, technically clean air, only. - Page 25 Rail Mount Adapter for Electronic box With the rail mount adapter the CTratio electronics can be mounted easily on a DIN rail (TS35) according EN50022. ACCTRAIL 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 26 Mechanical Installation Spare fibers For a fast field exchange max. two spare fibers of the same length including optical sensing head can be ordered together with the main CTratio unit. As they will be adjusted together with the CTratio a subsequent order of spare fibers is not possible.
- Page 27 For entering the code please press the Up and Down key (keep pressed) and then the Mode key. The display shows OPTIC SET. With Up and Down the number can be changed. To change the spare fiber in the CompactPlus Connect software, go to the Setup menu and to the Advanced Settings tab.
-
Page 28: Laser Sighting
Mechanical Installation 3.2 Laser Sighting The integrated laser sighting supports the alignment and focusing of the optics. The size of the laser dot is equal to the real measurement spot size at any distance. The laser can be activated/ deactivated via the programming keys on the unit or via the software. -
Page 29: Electrical Installation
4 Electrical Installation 4.1 Cable Connections The supplied USB cable can be connected to the side of the electronics box. The device can be operated directly via the CompactPlus Connect software or the IRmobile App. For the electrical installation of further interfaces and when using the in- /outputs please open at first the cover of the electronic box (4 screws). - Page 30 Electrical Installation Please do never connect a supply voltage to the analog outputs as this will destroy the output! The CTratio is not a 2-wire sensor! The USB socket built into the side is only intended for setting up the sensor and any subsequent changes to the settings.
- Page 31 Place the pressing screw, the rubber washer and the metal washers of the cable gland one after the other onto the prepared cable end. Spread the strands and fix the shield between two of the metal washers. Insert the cable into the cable gland until the limit stop. Screw the cap tight. Every single wire may be connected to the according screw clamps according to their colors.
-
Page 32: Ground Connection
Electrical Installation 4.2 Ground Connection On the left side of the mainboard PCB you will find a black switch which is connecting factory-default the ground connections (GND power supply/ outputs) with the ground of the electronics housing. To avoid ground loops and related signal interferences in industrial environments it might be necessary to interrupt this connection. -
Page 33: Outputs And Inputs
5 Outputs and Inputs The CTratio has two analog output and three digital I/O pins (programmable as in- or output). 5.1 Analog Output The selection of the signal on output channel 1 and 2 (0/4-20 mA) can be done via the software CompactPlus Connect [►8 Software CompactPlus Connect] or the IRmobile app [►7 IRmobile app]. -
Page 34: I/O Pins
Outputs and Inputs 5.2 I/O pins The CTratio has three digital pins which can be programmed as outputs (digital) or as inputs (digital or analog) using the CompactPlus Connect software. The following functions are available: Function I/O pin acts as Description Alarm output digital... -
Page 35: Programming Interface
5.3 Programming Interface The CTratio has on the side of the electronic box a USB interface for programming and running the sensor. The USB cable is included in the scope of supply. This interface is not recommended for permanent use. As an option, the device can also be equipped with an USB, RS232, RS485, Modbus RTU or Ethernet interface, which is mounted directly on the board. -
Page 36: Relay Outputs
Outputs and Inputs 5.4 Relay Outputs The CTratio can be optionally equipped with a relay output. The relay board will be installed the same way as the programming interface. The relay board provides two fully isolated switches, which have the capability to switch max. -
Page 37: Alarms
5.5 Alarms The CTratio has the following Alarm All alarms have a fixed hysteresis of 2 K. features: Visual Alarms These alarms will cause a change of the color of the LCD display. Digital Alarm 1, 2, 3 All the I/O pins can be programmed as alarm output. In this case the pin acts as an open collector output (24 V/ 1 A). -
Page 38: Operating
Operating 6 Operating After power up the unit the sensor starts an initializing routine for some seconds. During this time the display will show INIT. After this procedure the process temperature is shown in the display. The display backlight color changes according to the alarm settings [►5.5 Alarms]. 6.1 Sensor Setup The programming keys Mode, Up and Down enable the user to set the sensor on-site. - Page 39 Display Mode [Sample] Adjustment Range S OFF Laser Sighting ON/ OFF T RAT 878.9 Ratio temperature after signal processing) [878,9 °C] fixed T1 897,1 1 channel temperature [879,1 °C] fixed T2 879,0 2 channel temperature [879,0 °C] fixed ATT 0.0 Attenuation[0,0 %] fixed T DET 50.1...
- Page 40 Operating the laser can be switched on and off. The Slope is the quotient of the emissivity’s of both of the overlapping wavelengths and SLOPE therewith the deciding parameter for measurements in 2-color-mode. EMISS 1.000 Setup of Emissivity. Pressing Up increases the value, Down decreases the value (also valid for all further functions).
- Page 41 has fallen below the Threshold value beforehand. If Hysteresis is activated a peak in addition must decrease by the value of the hysteresis before the algorithm takes it as a new peak value. AVALL (Advanced Valley Hold): This mode is the inverted function of Advanced Peak hold.
-
Page 42: Irmobile App
IRmobile app 7 IRmobile app The CTratio sensor has a direct connection to an Android smartphone or tablet. All you have to do is download the IRmobile app for free in the Google Play store. This can also be done via the QR code. The supplied USB cables can be used for connection to the device. With IRmobile you are able to monitor and analyse your infrared temperature measurement on a connected smartphone or tablet. - Page 43 ➢ Integrated simulator Supported for: ➢ Optris pyrometers: Compact series, high performance series and video thermometers ➢ Optris IR cameras: PI and Xi series ➢ For android devices running 5.0 or higher with a micro USB or USB-C port supporting USB-OTG (On The Go) 1.888.610.7664...
-
Page 44: Software Compactplus Connect
▪ Hard disc with at least 30 MByte free space ▪ At least 128 MByte RAM The software can also be downloaded via the Optris website under the following link: The installation wizard will place a launch icon on the desktop and in the start menu: [Start]\Programs\ CompactPlus Connect. - Page 45 Main Features: ▪ Graphic display for temperature trends and automatic data logging analysis documentation ▪ Complete sensor setup and remote controlling ▪ Adjustment of signal processing functions ▪ Programming of outputs and functional inputs 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 46: Communication Settings
Software CompactPlus Connect 8.2 Communication Settings 8.2.1 Serial Interface Baudrate: 115,2 / 921,6 kBaud Data bits: Parity: none Stop bits: Flow control: 8.2.2 Protocol All sensors of the CTratio series are using a binary protocol. 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 47: Basics Of Infrared Thermometry
9 Basics of Infrared Thermometry Depending on the temperature each object emits a certain amount of infrared radiation. A change in the temperature of the object is accompanied by a change in the intensity of the radiation. For the measurement of “thermal radiation”... -
Page 48: The Ratio Principle
Basics of Infrared Thermometry 9.1 The Ratio Principle The 2-color ratio technology makes possible accurate and repeatable temperature measurements that are free from dependence on absolute radiated energy values. In use, a 2-color sensor determines temperature from the ratio of the radiated energies in two separate wavelength bands (colors). The benefits of 2-color sensors are that accurate measurements can be made under the following conditions: ►... - Page 49 1-color sensors see polluted atmosphere and dirty windows and lenses as a reduction in energy and give much lower than actual temperature readings. Targets Smaller Than Field of View When a target is not large enough to fill the field of view, or if the target is moving within the field of view, radiated energies are equally reduced, but the ratio of the energies is unaffected and measured temperatures remain accurate.
-
Page 50: Emissivity
Emissivity 10 Emissivity 10.1 Definition The intensity of infrared radiation, which is emitted by each body, depends on the temperature as well as on the radiation features of the surface material of the measuring object. The emissivity (ε – Epsilon) is used as a material constant factor to describe the ability of the body to emit infrared energy. -
Page 51: Characteristic Emissivity
and take the temperature of the sticker. Afterwards, determine the temperature of the adjacent area on the measuring object and adjust the emissivity according to the value of the temperature of the sticker. ► Cove a part of the surface of the measuring object with a black, flat paint with an emissivity of 0,98. Adjust the emissivity of your infrared thermometer to 0,98 and take the temperature of the colored surface. -
Page 52: Characteristic Slope Values
Emissivity 10.4 Characteristic Slope Values The slope is the quotient of the emissivity of both of the overlapping wavelength bands. The factory default value for the slope is 1,000. The following slopes are typical reference values. The real slope can vary depending on the metal alloy and surface finish. - Page 53 This figure is showing the typical temperature reading of a ratio thermometer optris CTratio in both the 1- color- and the 2-color-mode in addiction of increasing contamination of the optical transmission path in- between the target and the ratio thermometer. Due to the ratio principle the 2 channel signal (upper curve) stays very stable over a wide range of attenuation up to over 90 %.
-
Page 54: Appendix A - Emissivity Table Metals
Appendix A – Emissivity Table Metals Appendix A – Emissivity Table Metals Material typical Emissivity Spectral response 1,0 µm 1,6 µm 5,1 µm 8-14 µm Aluminium non oxidized 0,1-0,2 0,02-0,2 0,02-0,2 0,02-0,1 polished 0,1-0,2 0,02-0,1 0,02-0,1 0,02-0,1 roughened 0,2-0,8 0,2-0,6 0,1-0,4 0,1-0,3 oxidized... - Page 55 Material typical Emissivity Spectral response 1,0 µm 1,6 µm 5,1 µm 8-14 µm Lead polished 0,35 0,05-0,2 0,05-0,2 0,05-0,1 roughened 0,65 oxidized 0,3-0,7 0,2-0,7 0,2-0,6 Magnesium 0,3-0,8 0,05-0,3 0,03-0,15 0,02-0,1 Mercury 0,05-0,15 0,05-0,15 0,05-0,15 Molybdenum non oxidized 0,25-0,35 0,1-0,3 0,1-0,15 oxidized 0,5-0,9 0,4-0,9...
-
Page 56: Appendix B - Emissivity Table Non Metals
Appendix B – Emissivity Table Non Metals Appendix B – Emissivity Table Non Metals Material typical Emissivity Spectral response 1,0 µm 2,2 µm 5,1 µm 8-14 µm Asbestos 0,95 Asphalt 0,95 0,95 Basalt Carbon non oxidized 0,8-0,9 0,8-0,9 0,8-0,9 graphite 0,8-0,9 0,7-0,9 0,7-0,8... -
Page 57: Appendix C - Smart Averaging
Appendix C – Smart Averaging The average function is generally used to smoothen the output signal. With the adjustable parameter time this function can be optimal adjusted to the respective application. One disadvantage of the average function is that fast temperature peaks which are caused by dynamic events are subjected to the same averaging time. -
Page 58: Appendix D - Declaration Of Conformity
Appendix D – Declaration of Conformity Appendix D – Declaration of Conformity optris CTratio-MA-E2021-08-A 1.888.610.7664 www.calcert.com sales@calcert.com...
