CTratio

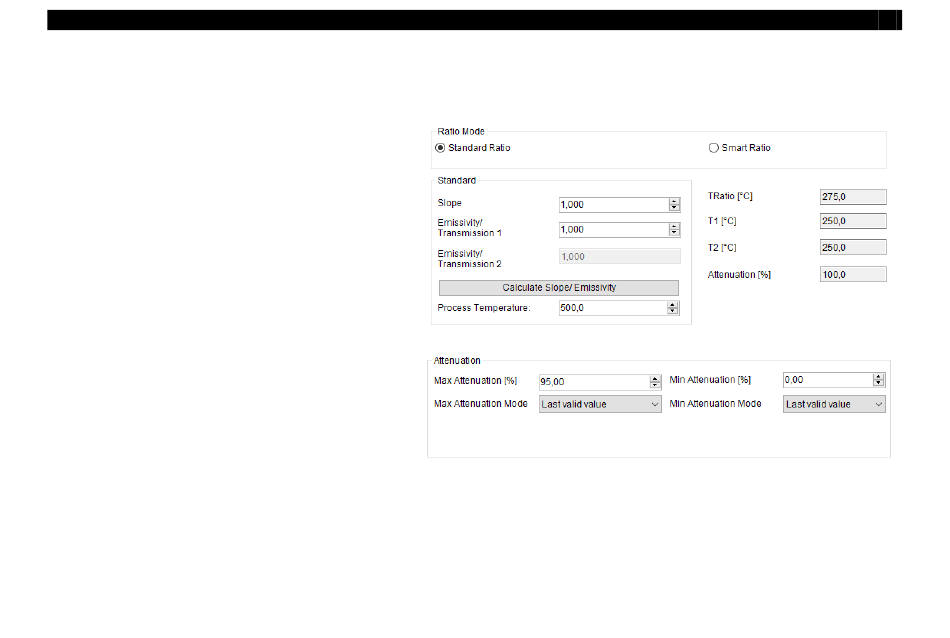

2.2.1. Ratio Mode - Standard Ratio

Emissivity/ Slope/ Attenuation
The Slope is the quotient of the emissivity's
of both of the overlapping wavelengths and
therewith the deciding
measurements in 2-color-mode.
The Emissivity ( – Epsilon) is a material
constant factor to describe the ability of a
body to emit infrared energy. The emissivity
only affects measurements in the 1-color-
mode.
The function Calculate Slope/Emissivity
allows the determination of an unknown
emissivity and slope at a known process
temperature.
Attenuation: The temperature display is fixed if the attenuation exceeds the limit specified here. You can
decide whether the last valid value should be kept or a fixed value entered. This can be selected for
maximum and minimum attenuation.
parameter for
-
