Sensor Setup CTratio – Output
2.3.

2.3.1. Output 1 and 2

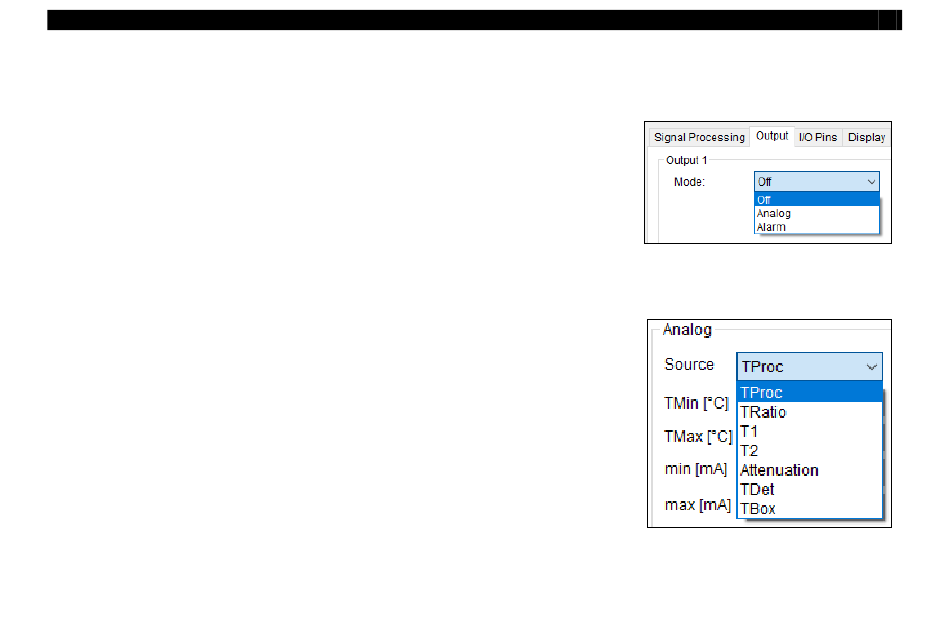

The device has two outputs (OUT 1, OUT 2) which can be configured
as desired. The following options are available under Mode:
•
Off
•
Analog
•
Alarm
When Analog is activated, the following signal sources can be selected in the Source field:
▪ TProc
▪ TRatio
▪ T1
▪ T2
▪ Attenuation
▪ TDet
▪ TBox
Process temperature
Ratio temperature
1 channel temperature
2 channel temperature
Signal attenuation in %
Temperature of detector
Box temperature
-
