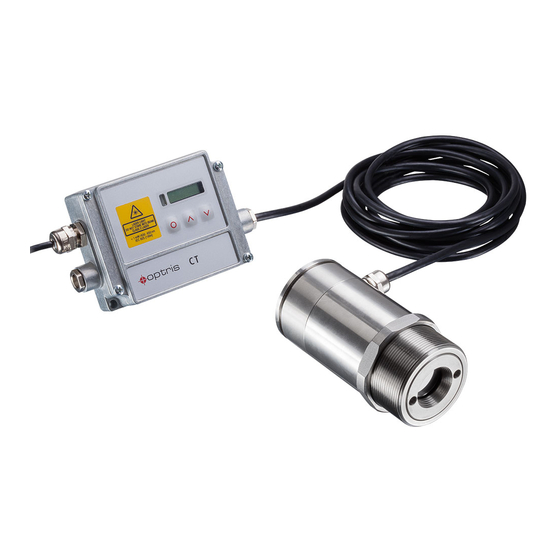

optris CTlaser LT Operator's Manual

Hide thumbs Also See for CTlaser LT:
Table of Contents

Advertisement

Quick Links

Operator's Manual
®
optris
CTlaser
LT/ LTF/ 05M/ 1M/ 2M/ 3M/ MT/ F2/ F6/ G5/ P7
Infrared thermometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTlaser LT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for optris CTlaser LT

Summary of Contents for optris CTlaser LT

  • Page 1 Operator’s Manual ® optris CTlaser LT/ LTF/ 05M/ 1M/ 2M/ 3M/ MT/ F2/ F6/ G5/ P7 Infrared thermometer...
  • Page 2 Optris GmbH Ferdinand-Buisson-Str. 14 13127 Berlin Germany Tel.: +49 30 500 197-0 Fax: +49 30 500 197-10 E-mail: info@optris.global Internet: www.optris.global...

  • Page 3: Table Of Contents

    Table of contents Table of contents Table of contents .............................. 3 General Notes ............................9 Intended use ............................9 Warranty ............................10 Scope of delivery ..........................10 Maintenance ............................. 11 Model Overview ..........................12 Technical Data ............................14 Factory settings ..........................14 General specifications ........................
  • Page 4 Measurement specifications [LT models] ..................20 Measurement specifications [05M model] ..................21 Measurement specifications [1M models] ..................22 Measurement specifications [2M models] ..................23 Measurement specifications [3M models] ..................24 Measurement specifications [3M/ MT/ F2 models] ................25 2.10 Measurement specifications [F2/ F6/ P7 models]................26 2.11 Measurement specifications [G5 models] ..................
  • Page 5 Table of contents 3.1.3 Water cooled housing ....................... 48 3.1.4 Rail mount adapter for electronic box ..................49 3.1.5 CoolingJacket und CoolingJacket Advanced ................50 3.1.6 Outdoor protective housing ....................... 51 3.1.7 IR app Connector ........................52 Electrical Installation ..........................53 Connection of the cables ........................
  • Page 6 Exchange of the head cable ......................63 Outputs and Inputs ........................... 64 4.7.1 Analog outputs .......................... 64 4.7.2 Digital Interfaces ........................66 4.7.3 Relay outputs ..........................67 4.7.4 Functional inputs ........................68 4.7.5 Alarms ............................69 Operation ..............................72 Sensor setup ............................. 72 Aiming laser ............................
  • Page 7 Table of contents Installation ............................84 Communication settings ........................86 7.2.1 Serial Interface .......................... 86 7.2.2 Protocol ............................. 86 7.2.3 ASCII-Protocol .......................... 87 7.2.4 Save parameter settings ......................88 Basics of Infrared Thermometry ......................89 Emissivity ..............................90 Definition ............................90 Determination of unknown emissivity ....................
  • Page 8 Appendix C – Smart Averaging ........................96 Appendix D – Declaration of Conformity ..................... 97...

  • Page 9: General Notes

    1.1 Intended use Thank you for choosing the optris® CTlaser infrared thermometer. The sensors of the optris CTlaser series are noncontact infrared temperature sensors. They calculate the surface temperature based on the emitted infrared energy of objects [►8 Basics of Infrared Thermometry].

  • Page 10: Warranty

    ► All accessories can be ordered according to the referred part numbers in brackets [ ]. 1.2 Warranty Each single product passes through a quality process. Nevertheless, if failures occur contact the customer service at once. The warranty period covers 24 months starting on the delivery date. After the warranty is expired the manufacturer guarantees additional 6 months warranty for all repaired or substituted product components.

  • Page 11: Maintenance

    General Notes 1.4 Maintenance Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid tissue (moistened with water) or a lens cleaner (e.g. Purosol or B+W Lens Cleaner). Never use cleaning compounds which contain solvents (neither for the lens nor for the housing).

  • Page 12: Model Overview

    The sensors of the CTlaser series are available in the following basic versions: Model Model code Measurement range Spectral response Typical applications CTlaser LT -50 to 975 °C 8-14 µm non-metallic surfaces CTlaser F -50 to 975 °C 8-14 µm...
  • Page 13 General Notes 200 to 1450 °C CTlaser F2 4.24 µm measurement of CO -flame gases 400 to 1650 °C 200 to 1450 °C CTlaser F6 4.64 µm measurement of CO-flame gases 400 to 1650 °C 100 to 1200 °C CTlaser G5 5,0 µm measurement of glass 250 to 1650 °C...

  • Page 14: Technical Data

    2 Technical Data 2.1 Factory settings Smart Averaging means a dynamic average adaptation at high signal edges. [Activation via software only]. [►Appendix C – Smart Averaging] Signal output object temperature 0 – 5 V Emissivity 0.970 [LT/ LTF/ MT/ F2/ F6/ G5, P7] 1.000 [05M, 1M/ 2M/ 3M] Transmissivity 1.000...
  • Page 15 Technical Data LT/ LTF 1MH1 2MH1 3MH1 3MH2 Lower limit temperature 1000 range [°C] Upper limit temperature 2000 1050 1800 2200 1600 2000 1000 1500 range [°C] Lower alarm limit [°C] 1200 1200 (Normally closed) Upper alarm limit [°C] 1600 1400 1600 1200...
  • Page 16 3MH3 G5HF Lower limit temperature range [°C] Upper limit temperature 1800 1450 1650 1450 1650 1450 1650 1200 range [°C] Lower alarm limit [°C] (Normally closed) Upper alarm limit [°C] 1200 1200 1400 1200 1400 1200 1400 (Normally open) Lower limit signal output Upper limit signal output Temperature unit °C...

  • Page 17: General Specifications

    Technical Data 2.2 General specifications Electronic box Sensing head Environmental rating IP65 (NEMA-4) Ambient temperature -20...85 °C Storage temperature -40...85 °C (3M: -40…125 °C) -40...85 °C Relative humidity 10...95 %, noncondensing Material Stainless steel Die casting zinc Dimensions 100 mm x 50 mm, M48x1.5 89 mm x 70 mm x 30 mm Weight 600 g...

  • Page 18: Electrical Specifications

    Shock IEC 60068-2-27 (25G and 50G) Software (optional) CompactConnect Laser will turn off automatically at ambient temperatures >50 °C. The functionality of the LCD display can be limited at ambient temperatures below 0 °C. 2.3 Electrical specifications Power supply 8–36 VDC Current draw Max.
  • Page 19 Technical Data Min. 100 kΩ load impedance Thermocouple 20 Ω Digital interfaces USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional plug-in modules) Relay outputs 2 x 60 VDC/ 42 VAC , 0.4 A; optically isolated (optional plug-in module) Functional inputs F1-F3;...

  • Page 20: Measurement Specifications [Lt Models]

    2.4 Measurement specifications [LT models] Temperature range (scalable) -50...975 °C Spectral range 8...14 µm Optical resolution 75:1 50:1 System accuracy (at ambient temp. 23 ±5 °C) ±1 °C or ±1 % ±1,5 °C or ±1,5 % 1), 2) Repeatability (at ambient temp. 23 ±5 °C) ±0.5 °C or ±0.5 % ±1 °C or ±1 % Temperature resolution (NETD)

  • Page 21: Measurement Specifications [05M Model]

    Technical Data 2.5 Measurement specifications [05M model] Temperature range (scalable) 1000…2000 °C Spectral range 0.525 µm Optical resolution 150:1 System accuracy (at ambient temp. 23 ±5°C) ± 1 % T (≤ 1100 °C) 1), 3) Meas ± (0.3 % T + 2 °C) (>1100 °C) Meas Repeatability (at ambient temp.

  • Page 22: Measurement Specifications [1M Models]

    2.6 Measurement specifications [1M models] 1MH1 Temperature range (scalable) 485...1050 °C 650...1800 °C 800...2200 °C Spectral range 1,0 µm Optical resolution 150:1 300:1 System accuracy (at ambient temperature ±(0.3 % T +2 °C) 1), 3) Meas 235 °C) ±(0.1 % T +1 °C) Repeatability (at ambient temperature 235 °C) Meas...

  • Page 23: Measurement Specifications [2M Models]

    Technical Data 2.7 Measurement specifications [2M models] 2MH1 Temperature range (scalable) 250...800 °C 385...1600 °C 490...2000 °C Spectral range 1.6 µm Optical resolution 150:1 300:1 System accuracy (at ambient temperature ±(0.3 % T +2 °C) 1)3) Meas 235 °C) Repeatability (at ambient temperature ±(0.1 % T +1 °C) Meas...

  • Page 24: Measurement Specifications [3M Models]

    2.8 Measurement specifications [3M models] 3MH1 3MH2 Temperature range (scalable) 50...400 °C 100...600 °C 150...1000 °C 200...1500 °C Spectral range 2.3 µm Optical resolution 60:1 100:1 300:1 System accuracy (at ambient ±(0.3 % T +2 °C) 3)5) Meas temperature 235 °C) Repeatability (at ambient temperature ±(0.1 % T +1 °C)

  • Page 25: Measurement Specifications [3M/ Mt/ F2 Models]

    Technical Data 2.9 Measurement specifications [3M/ MT/ F2 models] 3MH3 Temperature range (scalable) 250...1800 °C 200...1450 °C 400...1650 °C 200...1450 °C Spectral range 2.3 µm 3.9 µm 4.24 µm Optical resolution 300:1 45:1 System accuracy (at ambient ±(0.3 % T +2 °C) ±1 % 1), 6)

  • Page 26: Measurement Specifications [F2/ F6/ P7 Models]

    2.10 Measurement specifications [F2/ F6/ P7 models] Temperature range (scalable) 400...1650 °C 200...1450 °C 400...1650 °C 0…710 °C Spectral range 4.24 µm 4.64 µm 7.9 µm Optical resolution 45:1 System accuracy (at ambient ±1 % ±1.5 °C or ±1 % 2), 4) temperature 235 °C) Repeatability...

  • Page 27: Measurement Specifications [G5 Models]

    Technical Data 2.11 Measurement specifications [G5 models] G5HF Temperature range (scalable) 100...1200 °C 250...1650 °C 200...1650 °C Spectral range 5,0 µm Optical resolution 45:1 70:1 45:1 System accuracy (at ambient ±1.5 °C or ±1 % 1), 2), 3) temperature 235 °C) Repeatability (at ambient temperature ±0.5 °C or ±0.5 %...

  • Page 28: Optical Charts

    The spot size refers to 90 % of the radiation energy. The distance is always measured from the front edge of the sensing head. As an alternative to the optical diagrams, the spot size calculator can also be used on the optris website http://www.optris.com/spot-size-calculator.
  • Page 29 Technical Data Optics: SF D:S (focus distance) = 75:1/ 16mm@1200mm D:S (far field) = 24:1 Optics: CF1 D:S (focus distance) = 75:1/ 0.9mm@70mm D:S (far field) = 3.5:1...
  • Page 30 Optics: CF2 D:S (focus distance) = 75:1/ 1.9mm@150mm D:S (far field) = 7:1 Optics: CF3 D:S (focus distance) = 75:1/ 2.75mm@200mm D:S (far field) = 9:1...
  • Page 31 Technical Data Optics: CF4 D:S (focus distance) = 75:1/ 5.9mm@450mm D:S (far field) = 18:1 Optics: SF D:S (focus distance) = 50:1/ 24mm@1200mm D:S (far field) = 20:1...
  • Page 32 Optics: CF1 D:S (focus distance) = 50:1/ 1.4mm@70mm D:S (far field) = 3.5:1 Optics: CF2 D:S (focus distance) = 50:1/ 3mm@150mm D:S (far field) = 6:1...
  • Page 33 Technical Data Optics: CF3 D:S (focus distance) = 50:1/ 4mm@200mm D:S (far field) = 8:1 Optics: CF4 D:S (focus distance) = 50:1/ 9mm@450mm D:S (far field) = 16:1...
  • Page 34 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: FF D:S (focus distance) = 300:1/ 12mm@ 3600mm D:S (far field) = 115:1 05M/ 1ML/ 2ML Optics: FF D:S (focus distance) = 150:1/ 24mm@ 3600mm D:S (far field) = 84:1 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: SF D:S (focus distance) = 300:1/ 3,7mm@ 1100mm D:S (far field) = 48:1...
  • Page 35 Technical Data 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: CF2 D:S (focus distance) = 300:1/ 0,5mm@ 150mm D:S (far field) = 7,5:1 1ML/ 2ML Optics: CF2 D:S (focus distance) = 150:1/ 1mm@ 150mm D:S (far field) = 7:1 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: CF3 D:S (focus distance) = 300:1/ 0,7mm@ 200mm D:S (far field) = 10:1...
  • Page 36 1MH/ 1MH1/ 2MH/ 2MH1/ 3MH1-H3 Optics: CF4 D:S (focus distance) = 300:1/ 1,5mm@ 450mm D:S (far field) = 22:1 1ML/ 2ML Optics: CF4 D:S (focus distance) = 150:1/ 3mm@ 450mm D:S (far field) = 20:1 Optics: FF D:S (focus distance) = 100:1/ 36mm@ 3600mm D:S (far field) = 65:1...
  • Page 37 Technical Data Optics: FF D:S (focus distance) = 60:1/ 60mm@ 3600mm D:S (far field) = 45:1 Optics: SF D:S (focus distance) = 100:1/ 11mm@ 1100mm D:S (far field) = 38:1 Optics: SF D:S (focus distance) = 60:1/ 18.3mm@ 1100mm D:S (far field) = 30:1...
  • Page 38 Optics: CF1 D:S (focus distance) = 100:1/ 0.85mm@ 85mm D:S (far field) = 4:1 Optics: CF1 D:S (focus distance) = 60:1/ 1.4mm@ 85mm D:S (far field) = 4:1 Optics: CF2 D:S (focus distance) = 100:1/ 1.5mm@ 150mm D:S (far field) = 7:1 Optics: CF2 D:S (focus distance) = 60:1/ 2.5mm@ 150mm D:S (far field) = 6:1...
  • Page 39 Technical Data Optics: CF3 D:S (focus distance) = 100:1/ 2mm@ 200mm D:S (far field) = 9:1 Optics: CF3 D:S (focus distance) = 60:1/ 3.4mm@ 200mm D:S (far field) = 8:1 Optics: CF4 D:S (focus distance) = 100:1/ 4.5mm@ 450mm D:S (far field) = 19:1 Optics: CF4 D:S (focus distance) = 60:1/ 7.5mm@ 450mm D:S (far field) = 17:1...
  • Page 40 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ Optics: SF D:S (focus distance) = 45:1/ 27mm@1200mm D:S (far field) = 25:1 Optics: SF D:S (focus distance) = 70:1/ 17mm@1200mm D:S (far field) = 33:1 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ Optics: CF1 D:S (focus distance) = 45:1/ 1.6mm@70mm D:S (far field) = 3:1...
  • Page 41 Technical Data MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ Optics: CF2 D:S (focus distance) = 45:1/ 3.4mm@150mm D:S (far field) = 6:1 Optics: CF2 D:S (focus distance) = 70:1/ 2.2mm@150mm D:S (far field) = 6.8:1 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ Optics: CF3 D:S (focus distance) = 45:1/ 4.5mm@200mm D:S (far field) = 8:1...
  • Page 42 MT/ MTH/ F2/ F2H/ F6/ F6H/ G5L/ G5HF/ Optics: CF4 D:S (focus distance) = 45:1/ 10mm@450mm D:S (far field) = 15:1 Optics: CF4 D:S (focus distance) = 70:1/ 6.5mm@450mm D:S (far field) = 17.7:1...

  • Page 43: Mechanical Installation

    Mechanical Installation 3 Mechanical Installation  Keep the optical path free of any obstacles.  For an exact alignment of the head to the object activate the integrated double laser. [►5.2 Aiming laser] The CTlaser is equipped with a metric M48x1.5 thread and can be installed either directly via the sensor thread or with help of the supplied mounting nut (standard) and fixed mounting bracket (standard) to a mounting device available.
  • Page 44 Figure 2: Mounting bracket, adjustable in one axis [Order No. - ACCTLFB] – standard scope of supply...
  • Page 45 Mechanical Installation Figure 3: Electronic box...

  • Page 46: Accessories

    3.1 Accessories 3.1.1 Air purge collar  Use oil-free, technically clean air only.  The needed amount of air (approx. 2...10 l/ min.) depends on the application and the installation conditions on-site. The lens must be kept clean at all times from dust, smoke, fumes and other contaminants in order to avoid reading errors.

  • Page 47: Mounting Bracket

    Mechanical Installation 3.1.2 Mounting bracket This adjustable mounting bracket allows an adjustment of the sensor head in two axes. Figure 5: Mounting bracket, adjustable in two axes [Order No.: ACCTLAB]...

  • Page 48: Water Cooled Housing

    3.1.3 Water cooled housing To avoid condensation on the optics an air purge collar is recommended. The sensing head is for application at ambient temperatures up to 85 °C. For applications at higher ambient temperatures we recommend the usage of the optional water cooled housing (operating temperature up to 175 °C) and the optional high temperature cable (operating temperature up to 180 °C).

  • Page 49: Rail Mount Adapter For Electronic Box

    Mechanical Installation 3.1.4 Rail mount adapter for electronic box With the rail mount adapter the CTlaser electronics can be mounted easily on a DIN rail (TS35) according EN50022. Figure 7: Rail mount adapter [Order No.: ACCTRAIL]...

  • Page 50: Coolingjacket Und Coolingjacket Advanced

    3.1.5 CoolingJacket und CoolingJacket Advanced For higher temperatures (up to 180 °C) the CoolingJacket is provided for CTlaser. Order No.: ACCTLCJ For even higher temperatures (up to 315 °C) the CoolingJacket Advanced is provided for CTlaser. Order No.: ACCTLCJA For detailed information see installation manual.

  • Page 51: Outdoor Protective Housing

    Mechanical Installation 3.1.6 Outdoor protective housing The CTlaser LT models and the USB server can also be used for outdoor applications by using the outdoor protective housing (Order No.: ACCTLOPH24ZNS). Figure 8: Outdoor protective housing for CTlaser LT with Figure 9: Outdoor protective housing with wall mount integrated heater, incl.

  • Page 52: Ir App Connector

    The IR App Connector is used to connect the sensor to a smartphone or tablet (► 6 IRmobile app). The connector cable can be also used for the connection to your PC in combination with the software CompactConnect which can be downloaded for free under https://www.optris.global/downloads-software. Figure 10: IR app Connector: USB programming adaptor [Order No.: ACCTIAC]...

  • Page 53: Electrical Installation

    Electrical Installation 4 Electrical Installation 4.1 Connection of the cables  For the Cooling jacket the connector version is needed.  Connector Kit: Subsequent conversion of a standard CTlaser sensor into the connector version (Order No.: ACCTLCONK). Basic version The basic version is supplied with a connection cable (connection sensing head-electronics).
  • Page 54 Connector version Use the original ready-made, fitting connection cables which are optionally available. Consider the pin assignment of the connector (see Figure 13). This version has a connector plug integrated in the sensor backplane Figure 12: Connector version...
  • Page 55 Electrical Installation Pin assignment of connector plug (connector version only) Designation Wire color (original sensor cable) Detector signal (+) Yellow Temperature probe head Brown Temperature probe head White Detector signal (–) Green Ground Laser (–) Grey Figure 13: Connector plug (exterior view) Power supply Laser (+) Pink Not used...
  • Page 56 Designation [models LT/ LTF/ MT/ F2/ F6/ G5/ P7] +8...36 VDC Power supply Ground (0 V) of power supply Ground (0 V) of internal in- and outputs OUT-AMB Analog output head temperature (mV) OUT-TC Analog output thermocouple (J or K) OUT-mV/mA Analog output object temperature (mV or mA) F1-F3...
  • Page 57 Electrical Installation Designation [models 05M/ 1M/ 2M/ 3M] +8…36 VDC Power supply Ground (0 V) of power supply Ground (0 V) of internal in- and outputs Alarm 2 (Open collector output) OUT-TC Analog output thermocouple (J or K) OUT-mV/mA Analog output object temperature (mV or mA) F1-F3 Functional inputs Ground (0 V)

  • Page 58: Power Supply

    4.2 Power supply Do never connect a supply voltage to the analog outputs as this will destroy the output! The CTlaser is not a 2-wire sensor! Use a separate, stabilized power supply unit with an output voltage in the range of 8–36 VDC which can supply 160 mA.
  • Page 59 Electrical Installation 3. Spread the strands and fix the shield between two of the metal washers. 4. Insert the cable into the cable gland until the limit stop and screw the cap tight. Every single wire may be connected to the according screw clamps according to their colors. Figure 16: Cable assembling...

  • Page 60: Ground Connection

    4.4 Ground connection 4.4.1 05M, 1M, 2M, 3M models At the bottom side of the mainboard PCB you will find a connector (jumper) which has been placed from factory side as shown in the picture [bottom and middle pin connected]. In this position the ground connections (GND power supply/ outputs) are connected with the ground of the electronics housing.

  • Page 61: Lt, Ltf, Mt, F2, F6, G5, P7 Models

    Electrical Installation 4.4.2 LT, LTF, MT, F2, F6, G5, P7 models At the bottom side of the mainboard PCB you will find a connector (jumper) which has been placed from factory side as shown in the picture [left and middle pin connected]. In this position the ground connections (GND power supply/ outputs) are connected with the ground of the electronics housing.

  • Page 62: Exchange Of The Sensing Head

    4.5 Exchange of the sensing head  After exchanging a head the calibration code of the new head must be entered into the electronics.  After modification of the code a reset is necessary to activate the changes. [►5 Operation] ...

  • Page 63: Exchange Of The Head Cable

    Electrical Installation To enter the code press the Up and Down key (keep pressed) and then the Mode key. The display shows HCODE and then the 4 signs of the first block. With Up and Down each sign can be changed. Mode switches to the next sign or next block.

  • Page 64: Outputs And Inputs

    1. For a dismantling on the head side open the cover plate on the back side of the head first. Then remove the terminal block and loose the connections. 2. After the new cable has been installed proceed in reversed order. Be careful the cable shield is properly connected to the head housing.
  • Page 65 Electrical Installation Output signal Range Connection pin on CTlaser board Voltage 0 ... 5 V OUT-mV/mA Voltage 0 ... 10 V OUT-mV/mA Current 0 ... 20 mA OUT-mV/mA Current 4 ... 20 mA OUT-mV/mA Thermocouple TC J OUT-TC Thermocouple TC K OUT-TC Output channel 2 [on LT/ G5/ P7 only] The connection pin OUT AMB is used for output of the head temperature [-20–180 °C as 0–5 V or 0–10 V...

  • Page 66: Digital Interfaces

    4.7.2 Digital Interfaces The Ethernet interface requires a minimum 12 V supply voltage. Pay attention to the notes on the according interface manuals. CTlaser sensors can be optionally equipped with an USB-, RS232-, RS485-, CAN Bus-, Profibus DP- or Ethernet-interface. Figure 20: Digital interfaces...

  • Page 67: Relay Outputs

    Electrical Installation 1. To install an interface, plug the interface board into the place provided, which is located beside the display. In the correct position the holes of the interface match with the thread holes of the electronic box. 2. Press the board down to connect it and use both M3x5 screws for fixing. Plug the preassembled interface cable with the terminal block into the male connector of the interface board.

  • Page 68: Functional Inputs

    4.7.4 Functional inputs The three functional inputs F1 – F3 can be programmed with the CompactConnect software, only. F1 (digital): trigger (a 0 V level on F1 resets the hold functions) F2 (analog): external emissivity adjustment [0–10 V: 0 V ►  = 0.1; 9 V ►  = 1; 10 V ►  = 1,1] F3 (analog): external compensation of ambient temperature/ the range is scalable via software [0–10 V ►...

  • Page 69: Alarms

    Electrical Installation 4.7.5 Alarms All alarms (alarm 1, alarm 2, output channel 1 and 2 if used as alarm output) have a fixed hysteresis of 2 K. The CTlaser has the following Alarm features: Output channel 1 and 2 [channel 2 on LT/ G5/ P7 only] To activate, the according output channel has to be switched into digital mode.
  • Page 70 Both alarms affect the color of the LCD display: BLUE: alarm 1 active RED: alarm 2 active GREEN: no alarm active Alarm 1 Normally closed/ Low-Alarm Alarm 2 Normally open/ High-Alarm For extended setup like definition as low or high alarm [via change of normally open/ closed], selection of the signal source [T ] a digital interface (e.g.
  • Page 71 Electrical Installation Open collector output / AL2:  The transistor acts as a switch. In case of alarm, the contact is closed.  A load/consumer (Relay, LED or a resistor) must always be connected.  The alarm voltage (here 24V) must not be connected directly to the alarm output (short circuit).

  • Page 72: Operation

    5 Operation After power up the unit the sensor starts an initializing routine for some seconds. During this time the display will show INIT. After this procedure the object temperature is shown in the display. The display backlight color changes accordingly to the alarm settings [►4.7.5 Alarms]. 5.1 Sensor setup ...
  • Page 73 Operation Display Mode [Sample] Adjustment Range S ON Laser Sighting [On] ON/ OFF 142.3C Object temperature (after signal processing) [142,3 °C] fixed 127CH Head temperature [127 °C] fixed 25CB Box temperature [25 °C] fixed 142CA Current object temperature [142 °C] fixed ð...
  • Page 74 Activating (ON) and Deactivating (OFF) of the Sighting Laser. By pressing Up or Down S ON the laser can be switched on and off. Selection of the Output signal. By pressing Up or Down the different output signals can ð MV5 be selected (see Table 2).
  • Page 75 Operation After the hold time the signal will drop down to the second highest value or will descend by 1/8 of the difference between the previous peak and the minimum value during the hold time. This value will be held again for the specified time. After this the signal will drop down with slow time constant and will follow the current object temperature.
  • Page 76 Signal graph with P---- ▬ T with Peak Hold (Hold time = 1s) Process ▬ T without post processing Actual Setup of the Lower limit of temperature range. The minimum difference between lower and upper limit is 20 K. If you set the lower limit to a value ≥ upper limit the upper limit will be adjusted to [lower limit + 20 K] automatically.
  • Page 77 Operation n 500.0 Setup of the Upper limit of the temperature range. The minimum difference between upper and lower limit is 20 K. The upper limit can only be set to a value = lower limit + 20 K. [ 0.00 Setup of the Lower limit of the signal output.
  • Page 78 XHEAD Especially if there is a big difference between the ambient temperature at the object and the head temperature the use of ambient temperature compensation is recommended. Setup of the Ambient temperature compensation. In dependence on the emissivity value of the object a certain amount of ambient radiation will be reflected from the object surface.

  • Page 79: Aiming Laser

    The two laser points mark the position of the measuring spot, but not its exact size. The exact size of the measurement spot can be found in the optical charts [►2.12 Optical charts]. As an alternative to the optical diagrams, the spot size calculator can also be used on the optris website http://www.optris.com/spot-size-calculator.
  • Page 80 Figure 22: Identification of the laser The laser can be activated/ deactivated via the programming keys on the unit or via the software. If the laser is activated a yellow LED is shining (beside temperature display).

  • Page 81: Error Messages

    Operation 5.3 Error messages The display of the sensor can show the following error messages: LT/ LTF/ MT/ F2/ F6/ G5/ P7 models: 05M/ 1M/ 2M/ 3M models: OVER Object temperature too high 1. Digit: UNDER Object temperature too low No error ^^^CH Head temperature too high...

  • Page 82: Irmobile App

    6 IRmobile app The CTlaser sensor has a direct connection to an Android smartphone or tablet. All you have to do is download the IRmobile app for free in the Google Play Store. This can also be done via the QR code. An IR app connector is required for connection to the device (Part- No.: ACCTIAC).
  • Page 83 IRmobile app IRmobile app features:  Temperature time diagram with zoom function  Digital temperature values  Setup of emissivity, transmissivity and other parameters  Scaling of 4-20 mA/ 0-10 V output and setup of alarm output  Change of temperature unit: Celsius or Fahrenheit ...

  • Page 84: Software Compactconnect

    7 Software CompactConnect Minimum system requirements:  Windows 7, 8, 10  USB interface  Hard disc with at least 30 MByte of free space  At least 128 MByte RAM  CD-ROM drive A detailed description is provided in the software manual on the software CD. 7.1 Installation 1.
  • Page 85 Software CompactConnect The installation wizard will place a launch icon on the desktop and in the start menu: Start\Programs\CompactConnect To uninstall the software from your system use the uninstall icon in the start menu. Main functions:  Graphic display for temperature trends and automatic data logging for analysis and documentation ...

  • Page 86: Communication Settings

    7.2 Communication settings For further information see protocol and command description on the software CD CompactConnect in the directory: \Commands . 7.2.1 Serial Interface Baud rate: 9.6...115.2 kBaud (adjustable on the unit or via software) Data bits: Parity: none Stop bits: Flow control 7.2.2 Protocol All sensors of the CTlaser series are using a binary protocol.

  • Page 87: Ascii-Protocol

    Software CompactConnect 7.2.3 ASCII-Protocol To switch to the ASCII protocol, use the following command: Decimal: HEX: 0x83 Data, Answer: byte 1 Result: 0 – Binary protocol 1 – ASCII protocol...

  • Page 88: Save Parameter Settings

    7.2.4 Save parameter settings After switch-on of the CTlaser sensor the flash mode is active. This means, changed parameter settings will be saved in the internal Flash-EEPROM and will be kept also after the sensor is switched off. If the settings need to change continuously the flash mode can be switched off by using the following command: Decimal: HEX:...

  • Page 89: Basics Of Infrared Thermometry

    Basics of Infrared Thermometry Basics of Infrared Thermometry Depending on the temperature each object emits a certain amount of infrared radiation. A change in the temperature of the object is accompanied by a change in the intensity of the radiation. For the measurement of “thermal radiation”...

  • Page 90: Emissivity

    9 Emissivity 9.1 Definition The intensity of infrared radiation, which is emitted by each body, depends on the temperature as well as on the radiation features of the surface material of the measuring object. The emissivity (ε – Epsilon) is used as a material constant factor to describe the ability of the body to emit infrared energy.

  • Page 91: Determination Of Unknown Emissivity

    Emissivity 9.2 Determination of unknown emissivity ► First determine the actual temperature of the measuring object with a thermocouple or contact sensor. Second, measure the temperature with the infrared thermometer and modify the emissivity until the displayed result corresponds to the actual temperature. ►...

  • Page 92: Characteristic Emissivity

    9.3 Characteristic emissivity In case none of the methods mentioned above help to determine the emissivity you may use the emissivity table ►Appendix A and Appendix B. These are average values only. The actual emissivity of a material depends on the following factors: ...

  • Page 93: Appendix A - Table Of Emissivity For Metals

    Appendix A – Table of emissivity for metals Appendix A – Table of emissivity for metals Material typical Emissivity Spectral response 1,0 µm 1,6 µm 5,1 µm 8-14 µm Aluminium non oxidized 0,1-0,2 0,02-0,2 0,02-0,2 0,02-0,1 polished 0,1-0,2 0,02-0,1 0,02-0,1 0,02-0,1 roughened 0,2-0,8...
  • Page 94 Material typical Emissivity Spectral response 1,0 µm 1,6 µm 5,1 µm 8-14 µm Lead polished 0,35 0,05-0,2 0,05-0,2 0,05-0,1 roughened 0,65 oxidized 0,3-0,7 0,2-0,7 0,2-0,6 Magnesium 0,3-0,8 0,05-0,3 0,03-0,15 0,02-0,1 Mercury 0,05-0,15 0,05-0,15 0,05-0,15 Molybdenum non oxidized 0,25-0,35 0,1-0,3 0,1-0,15 oxidized 0,5-0,9 0,4-0,9...

  • Page 95: Appendix B - Table Of Emissivity For Non-Metals

    Appendix B – Table of emissivity for non-metals Appendix B – Table of emissivity for non-metals Material typical Emissivity Spectral response 1,0 µm 2,2 µm 5,1 µm 8-14 µm Asbestos 0,95 Asphalt 0,95 0,95 Basalt Carbon non oxidized 0,8-0,9 0,8-0,9 0,8-0,9 graphite 0,8-0,9...
  • Page 96 Appendix C – Smart Averaging The average function is generally used to smoothen the output signal. With the adjustable parameter time this function can be optimal adjusted to the respective application. One disadvantage of the average function is that fast temperature peaks which are caused by dynamic events are subjected to the same averaging time.
