The outputs can optionally be assigned the internal signals below:
Internal signal
UserOutput0
FrameTriggerWait
FrameTriggerMissed
FrameActive
ExposureActive
HardwareError

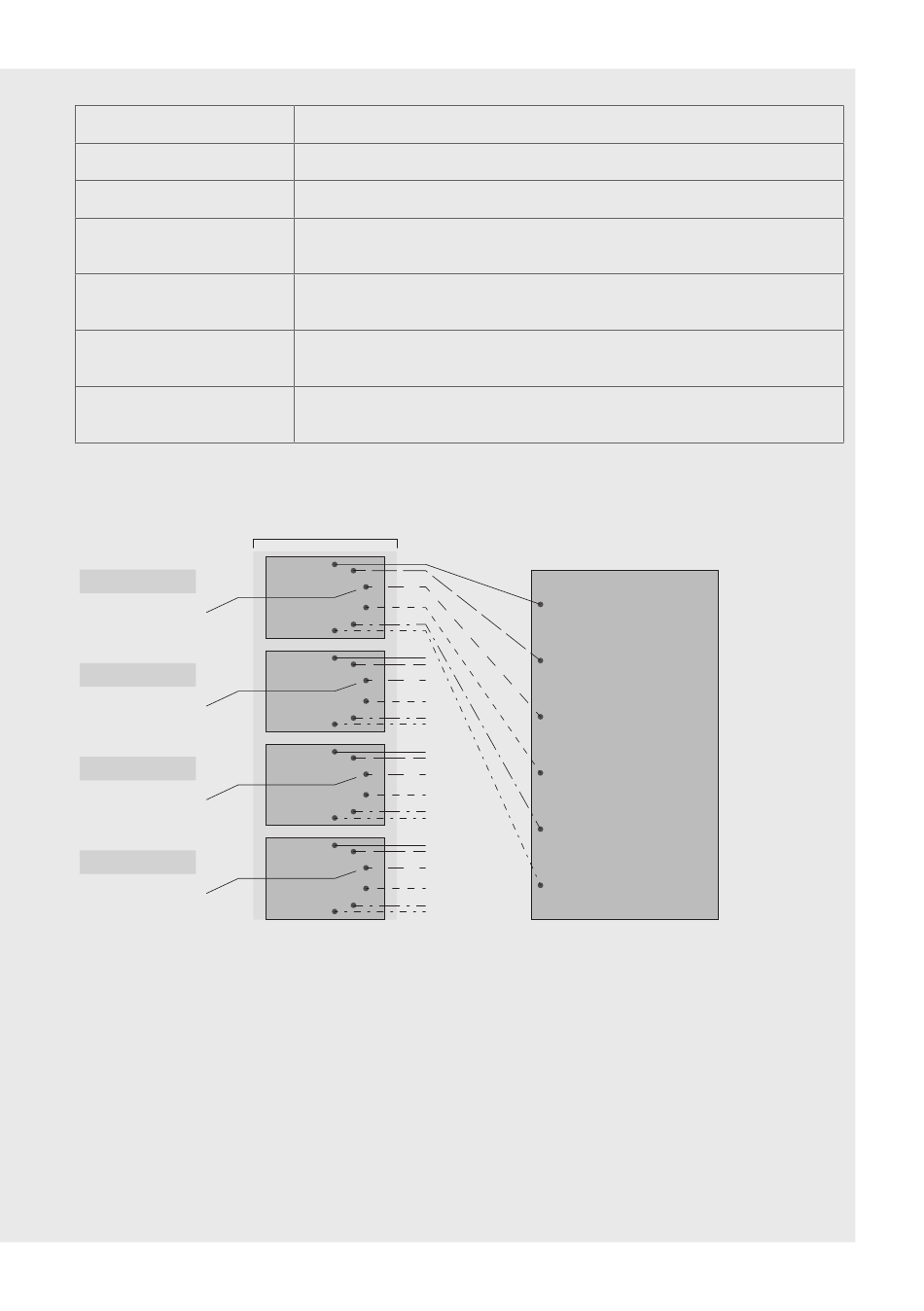

Fig. 6 Internal signal for digital output
Output signal selection
Trigger/GPIO1
(Output) Line 1
GPIO2
(Output) Line 2
GPIO3
(Output) Line 3
GPIO4
(Output) Line 4
surfaceCONTROL 3D 32xx
Description
Digital output signal that can be set via Genicam
Sensor is ready for next measurement
(External) trigger was missed
(sensor was not yet ready for measurement)
3D measurement in sensor is active (start at exposure of first
image, end at completion of data transmission via GigE)
Image sequence recording is enabled for current frame
(start at first image, end at last image transmission)
Critical error in sensor: Hardware error or sensor has be-
come too hot.
(software side)
FrameTriggerWait
FrameTriggerMissed
ExposureActive
FrameActive
UserOutput0
HardwareError
