Multi-Function Connection I/O
Interfaces and signals for external control of the sensor or for outputting sensor states
and data are provided via the multi-function connection. The four connections operate
either as inputs or outputs.
Designation Pin no.
reserved 9
reserved 2
reserved 3
reserved 1
reserved 12
reserved 11
reserved 10
GPIO1 4
GPIO2 6
GPIO3 8
GPIO4 5
GND GPIO 7
Screen Housing

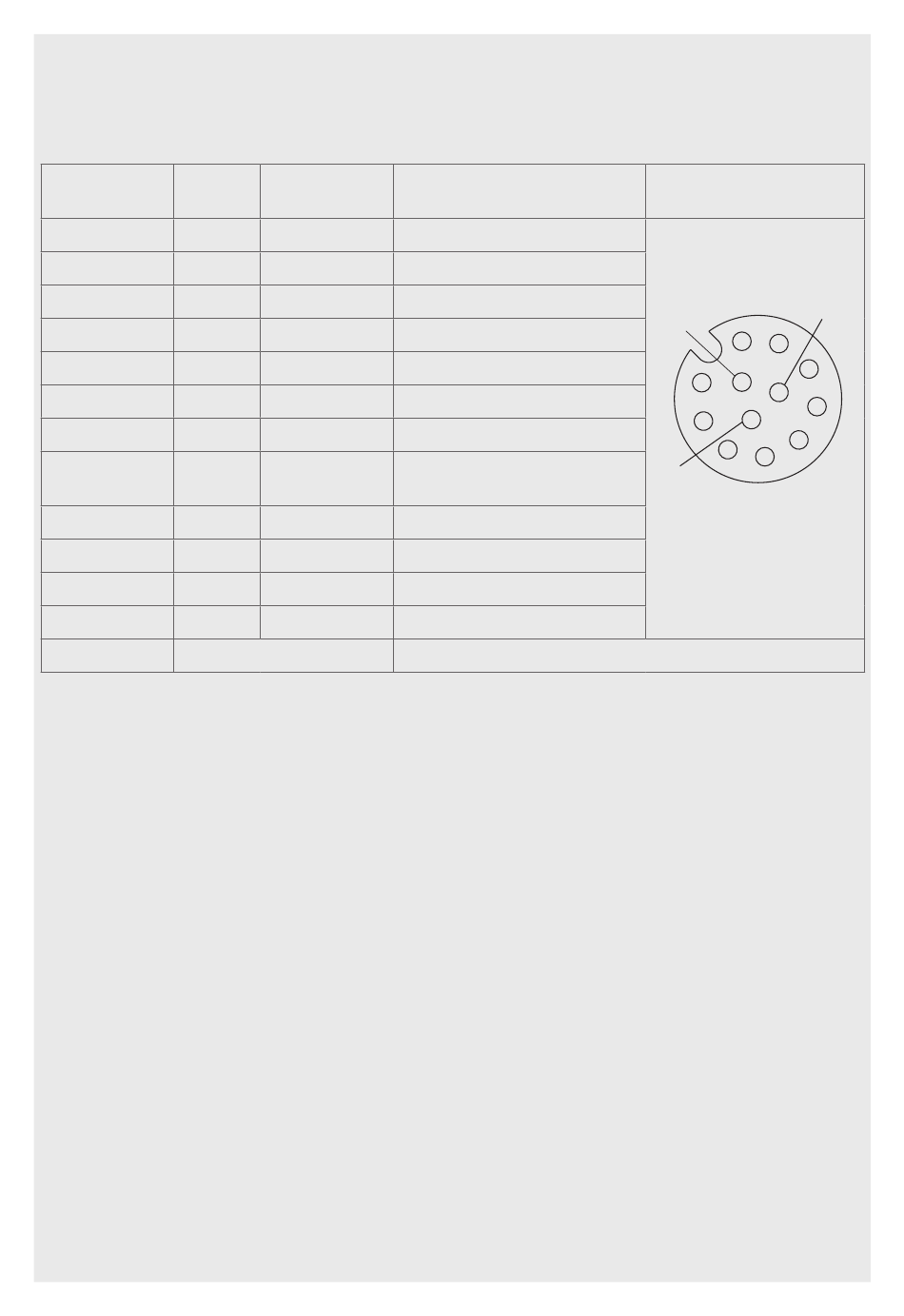

Fig. 4 Pin assignment of the multi-function connection
The multi-function connection is a 12-pin M12 round connector. The connecting line
is intended to be up to 35 m long; however, the cable must be shielded at any length.
Micro-Epsilon recommends using the PCR3000-x multi-function cable.
surfaceCONTROL 3D 32xx
Cable color
Notes
PCR3000-x
Red
Blue
White
Brown
Red-blue
Gray-pink
Purple
General purpose IO 1
Green
hardware trigger
Yellow General purpose IO 2
Gray General purpose IO 3
Pink General purpose IO 4
Black Ground connection GPIO
Not electrically connected to GND GPIO
Connection view
2 3
11
10
1
9
6
12
8
7
View: Socket,
housing side
