Removing The Access Point - Ruijie RG-AP820-I Installation And Reference Manual

Hardware Installation and Reference Guide

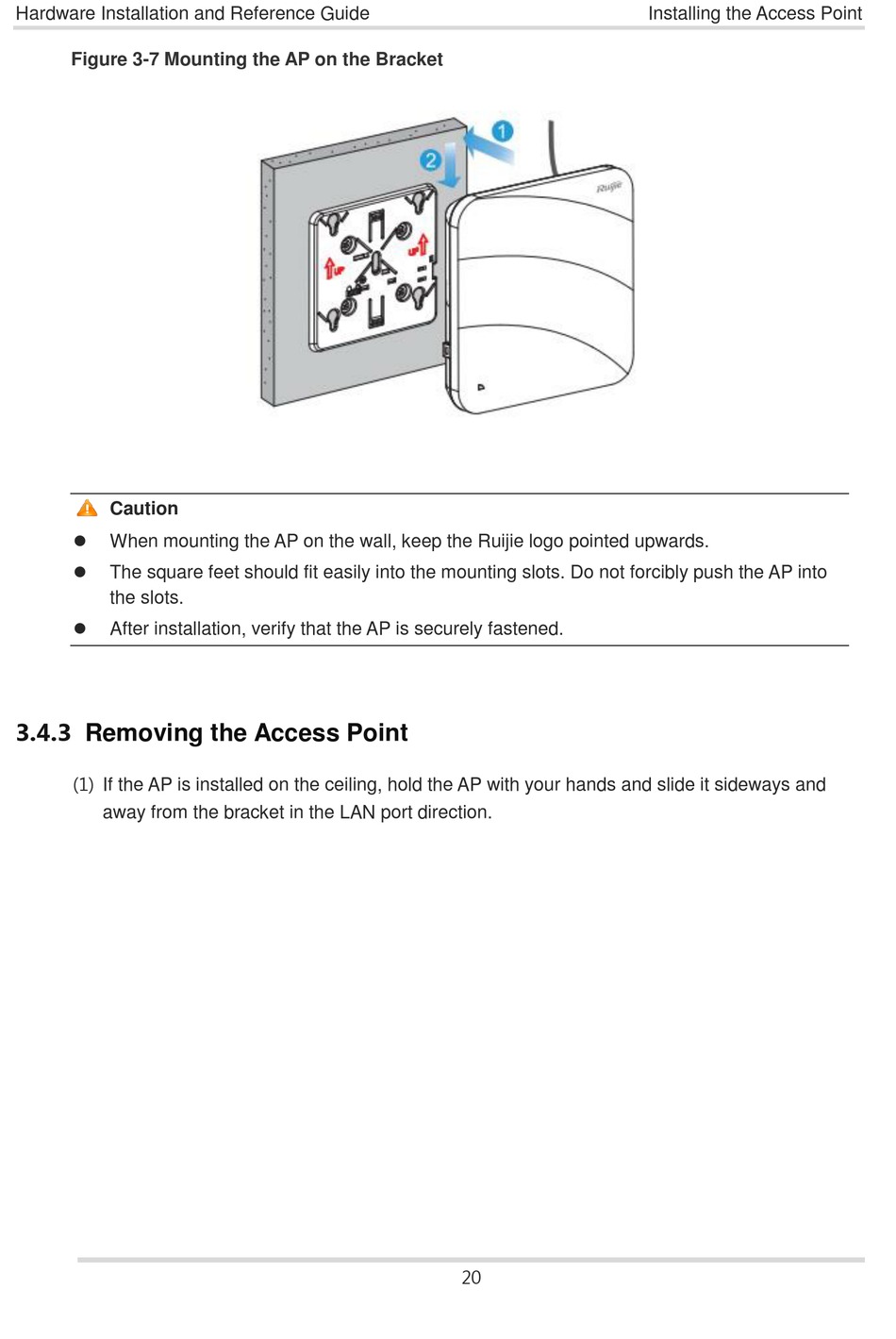

Figure 3-7 Mounting the AP on the Bracket
Caution

When mounting the AP on the wall, keep the Ruijie logo pointed upwards.

The square feet should fit easily into the mounting slots. Do not forcibly push the AP into
the slots.

After installation, verify that the AP is securely fastened.
3.4.3

Removing the Access Point

(1) If the AP is installed on the ceiling, hold the AP with your hands and slide it sideways and
away from the bracket in the LAN port direction.
20
Installing the Access Point
