Figure 3-4 Wi-Fi Coverage of Access Point
3.4.2

Mounting the Access Point on a Pole

(1) Secure the mounting plate assembly to the bottom of the RG-AP680-L access point using four M5 screws.

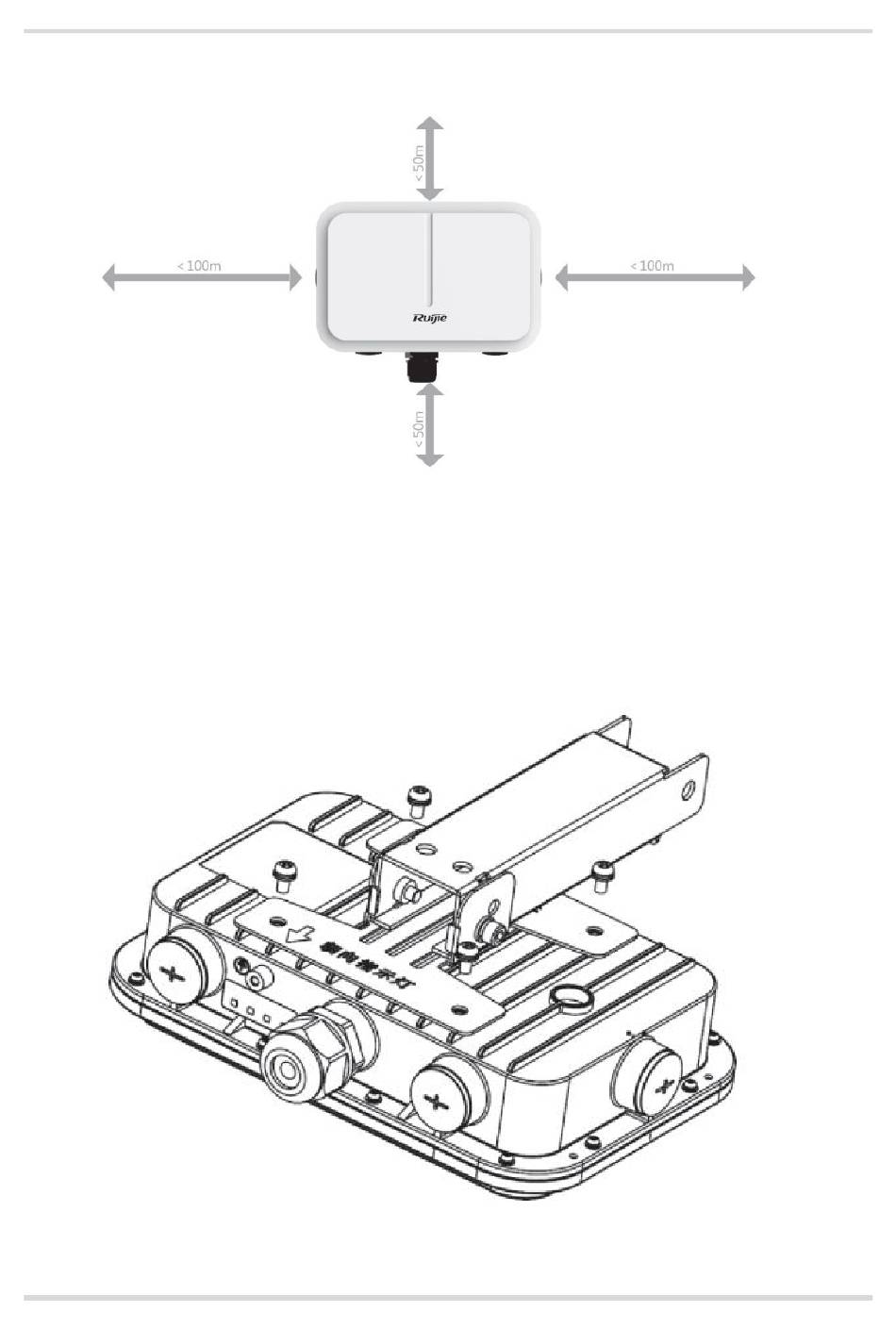

Figure 3-5 Securing Mounting Plate Assembly to Access Point
(2) Secure the mounting bracket to a pole.
18
Installing the Access Point
