4.7.8

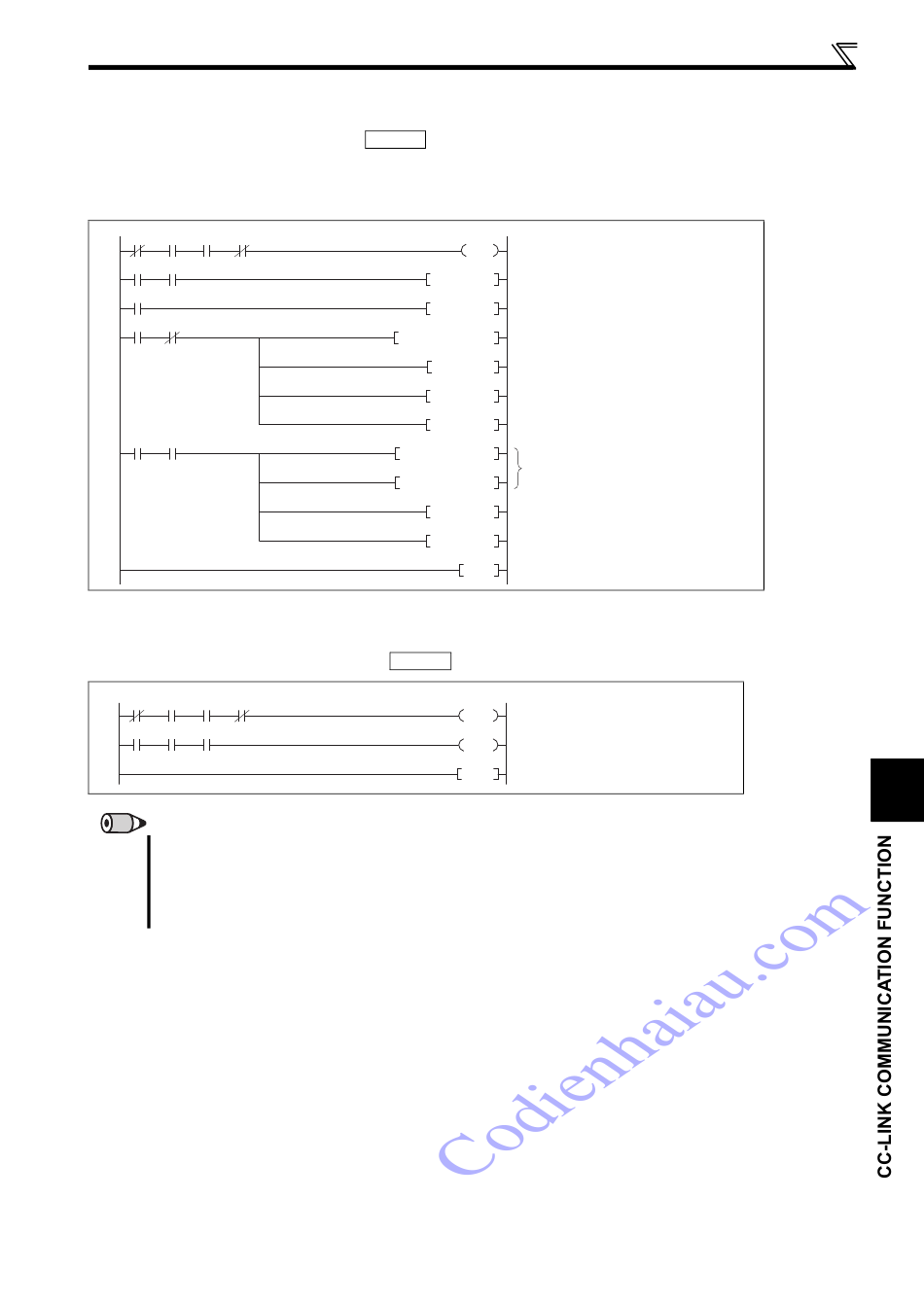

Programming example for fault record reading

The following program reads fault records of
⋅ Faults history No. 1, No. 2 reading code number: H74 (hexadecimal)
For the error code numbers, refer to page 65.
The reply code at the time of instruction code execution is set to D2. (Refer to page 63)
X0 X0F X1 SW80.0
0
M0 X20
7
M300
11
M301 X100F
13
M302 X100F
20
28
4.7.9

Programming example for resetting the inverter at inverter error

The following is a program example for resetting
X0 X0F X1 SW80.0
0
M0 X101A X20
7
Error status flag
11
REMARKS
• The above inverter reset using RY1A is available only when an inverter error occurs.
When Pr. 349 Communication reset selection = "0", inverter reset is available independently of the operation mode.
• Select Network operation mode to reset the inverter by setting data (H9696) in the instruction code (HFD) and then turn ON the
instruction code execution request (RYF). (Refer to page 69 for programming examples.)
• Refer to page 110 for operation conditions of inverter reset.
station 1
inverter to D1.
M0
Check the data link status of the station 1
PLS M300
SET M301
Write error history No.1 and No.2 read
MOV H74 W102
code (H74) to RWw2.
Turn ON the instruction code execution request
SET Y100F
(RY0F)
RST M301
SET M302
MOV W3 D1
Read alarm data (RWr3) and reply code
(RWr2) to D1 and D2 when the instruction
MOV W2 D2 code execution completion (RX0F) turns ON.
Turn OFF the instruction code execution request
RST Y100F
(RY0F)
RST M302
END
station 1
inverter at inverter error.
M0
Check the data link status of the station 1
Turn ON the error reset request flag (RY1A)
Y101A
Turn OFF the error reset request flag (RY1A)
when the error status flag (RX1A) is OFF.
END
Programming examples
4
