INVERTER

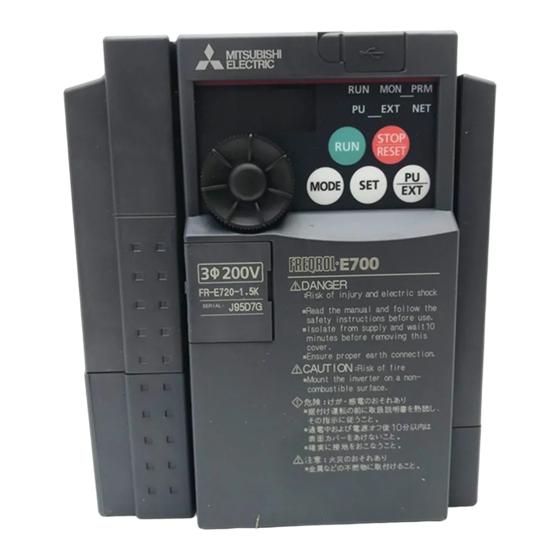

FR-E700
INSTALLATION GUIDELINE
Ethernet communication function
FR-E740-016SC to 300SC-ENE
FR-E720S-008SC to 110SC-ENE
Thank you for choosing this Mitsubishi Electric Inverter.
Please read through this Installation Guideline and a CD-ROM enclosed to operate this inverter correctly.
Do not use this product until you have a full knowledge of the equipment, safety information and
instructions.
Please forward this Installation Guideline and the CD-ROM to the end user.
1
OUTLINE DIMENSION DRAWINGS........................................3
2
WIRING ..................................................................................6
3
PRECAUTIONS FOR USE OF THE INVERTER .....................15
4
5
PARAMETER LIST ...............................................................18
6
TROUBLESHOOTING...........................................................23
7
CONTENTS
700

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric FR-E700

Summary of Contents for Mitsubishi Electric FR-E700

  • Page 1: Table Of Contents

    FR-E740-016SC to 300SC-ENE FR-E720S-008SC to 110SC-ENE Thank you for choosing this Mitsubishi Electric Inverter. Please read through this Installation Guideline and a CD-ROM enclosed to operate this inverter correctly. Do not use this product until you have a full knowledge of the equipment, safety information and instructions.
  • Page 2 This Installation Guideline provides handling information and precautions for use of the equipment. Please forward this Installation Guideline to the end user. 2. Fire Prevention This section is specifically about safety matters CAUTION Do not attempt to install, operate, maintain or inspect the ...
  • Page 3  If halogen-based materials (fluorine, chlorine, bromine,  The inverter can be easily set for high-speed operation. iodine, etc.) infiltrate into a Mitsubishi Electric product, the Before changing its setting, the performances of the motor product will be damaged. Halogenbased materials are often and machine must be fully examined.

  • Page 4: Product Checking And Parts Identification

    PU connector cover  Refer to the FR-E700-EC Instruction Manual.  Refer to the FR-E700-NE Ethernet Function Manual.  The jumper connector is set in the source logic (SOURCE) position when shipped from the factory. NOTE  All the switches (SW1 to SW3) on the Ethernet board are for manufacturer setting. Do not change the initial setting (OFF).
  • Page 5 PRODUCT CHECKING AND PARTS IDENTIFICATION Installation of the inverter  Enclosure surface mounting Before installation, remove the front cover and the wiring cover. (Remove the covers in the directions of the arrows.) For the FR-E740-170SC or lower or FR-E720S-110SC or lower inverter, additionally remove the Ethernet board. (Refer to page 13.) FR-E720S-008SC to 030SC FR-E740-016SC to 170SC...

  • Page 6: Outline Dimension Drawings

    OUTLINE DIMENSION DRAWINGS 2 OUTLINE DIMENSION DRAWINGS  FR-E720S-008SC to 030SC-ENE φ5 hole Capacity plate Inverter Model FR-E720S-008SC, 015SC-ENE FR-E720S-030SC-ENE (Unit: mm)  FR-E720S-050SC, 080SC-ENE 2-φ5 hole Rating plate Capacity plate Inverter Model FR-E720S-050SC-ENE FR-E720S-080SC-ENE 188.5 (Unit: mm)
  • Page 7 OUTLINE DIMENSION DRAWINGS  FR-E740-016SC to 095SC-ENE  FR-E720S-110SC-ENE 2-φ5 hole Rating plate Capacity plate Inverter Model FR-E740-016SC, 026SC-ENE 141.5 FR-E740-040SC, 060SC, 095SC-ENE 162.5 FR-E720S-110SC-ENE (Unit: mm)  FR-E740-120SC, 170SC-ENE 2-φ5 hole Rating plate Capacity plate 174.5 (Unit: mm)
  • Page 8 OUTLINE DIMENSION DRAWINGS  FR-E740-230SC, 300SC-ENE 2-φ6 hole Rating plate 10.5 84.5 217.5 Capacity plate (Unit: mm)

  • Page 9: Wiring

    Terminal connection diagram 3 WIRING Terminal connection diagram Source logic *1. DC reactor (FR-HEL) Main circuit terminal When connecting a DC reactor, remove the jumper across P1 and P/+. Control circuit terminal Single-phase power input Brake unit *6 A brake transistor is not built-in to the (Option) MCCB FR-E720S-008SC and 015SC.
  • Page 10 Main circuit terminal specifications Main circuit terminal specifications 3.2.1 Terminal arrangement of the main circuit terminal, power supply and the motor wiring  Three-phase 400V class FR-E740-016SC to 095SC FR-E740-120SC, 170SC Jumper Screw size (M4) Jumper N/- P/+ R/L1 S/L2 T/L3 Screw size (M4) R/L1 S/L2 T/L3 P/+ PR...

  • Page 11: Cables And Wiring Length

    Main circuit terminal specifications 3.2.2 Cables and wiring length (1) Cable size and other specifications of the main circuit terminals and the earthing terminal Select the recommended cable size to ensure that a voltage drop will be 2% max. If the wiring distance is long between the inverter and motor, a main circuit cable voltage drop will cause the motor torque to decrease especially at the output of a low frequency.
  • Page 12 Chapter 4 of the FR-E700-EC Instruction Manual)  Refer to Chapter 4 of the FR-E700-EC Instruction Manual for details of Pr. 72 PWM frequency selection. Refer to the manual of the option for details of surge voltage suppression filter (FR-ASF-H/FR-BMF-H).
  • Page 13 Control circuit specifications Control circuit specifications  Control circuit terminal layout Recommend wire size: 0.3mm to 0.75mm S1 S2  Wiring method Use a blade terminal and a wire with a sheath stripped off for the control circuit wiring. For a single wire, strip off the sheath of the wire and apply directly.
  • Page 14 Control circuit specifications 3) Insert the wire into a socket. When using a single wire or stranded wire without a blade terminal, push an open/close button all the way down with a flathead screw driver, and insert the wire. Open/close button Flathead screwdriver NOTE ...
  • Page 15 Do not connect terminal PC on the inverter and the +24V terminal of the external power supply (when the source logic is selected). Do not install an external power source in parallel with the internal 24VDC power source (connected to terminals PC and SD) to use them together. Refer to Chapter 2 of the FR-E700-EC Instruction Manual for the detail.
  • Page 16 Removal of the Ethernet board Removal of the Ethernet board The Ethernet board is installed in the initial status. Before wiring cables to the control circuit terminals or to the main circuit terminals on the FR-E740-170SC or lower or FR-E720S-050SC or lower inverter, remove the Ethernet board as follows. Junction connector Ethernet board Hexagon spacer...

  • Page 17: Connection To The Pu Connector

    Ethernet cable connection Ethernet cable connection Connect the Ethernet cable to the Ethernet connector.  Connection cable Use Ethernet cables compliant with the following standards. Communication Speed Cable Connector Type 100Mbps Category 5 or higher, (shielded / STP) straight cable 100BASE-TX Category 3 or higher, (shielded / STP) straight cable RJ-45 connector...

  • Page 18: Precautions For Use Of The Inverter

    PRECAUTIONS FOR USE OF THE INVERTER 4 PRECAUTIONS FOR USE OF THE INVERTER The FR-E700 series is a highly reliable product, but using incorrect peripheral circuits or incorrect operation/handling methods may shorten the product life or damage the product. Before starting operation, always recheck the following items.
  • Page 19 (16) Inverter input side magnetic contactor (MC) On the inverter input side, connect a MC for the following purposes. ( Refer to the FR-E700-EC Instruction Manual for selection.) 1)To release the inverter from the power supply when a fault occurs or when the drive is not functioning (e.g. emergency stop operation).

  • Page 20: Failsafe Of The System Which Uses The Inverter

    When a fault occurs, the inverter trips to output a fault signal. However, a fault output signal may not be output at an inverter fault occurrence when the detection circuit or output circuit fails, etc. Although Mitsubishi Electric assures best quality...

  • Page 21: Parameter List

    Pr. 77 Parameter write selection.  Refer to the FR-E700-NE Ethernet Function Manual for details of the Ethernet communication parameters, and refer to Chapter 4 of the FR-E700-EC Instruction Manual for details of the other parameters.
  • Page 22 PARAMETER LIST Initial Initial Name Setting Range Name Setting Range Value Value Retry selection 0 to 5 0, 20, 21, 40 to PID action selection 43, 50, 51, 60, Stall prevention operation 0 to 400Hz 50Hz reduction starting frequency 0.1 to 1000%, Number of retries at fault 0 to 10, 101 to PID proportional band...
  • Page 23 PARAMETER LIST Initial Initial Name Setting Range Name Setting Range Value Value 0, 1, 3, 4, 7, 8, Stop-on contact control 0, 1 11 to 16, 20, 25, selection 26, 46, 47, 64, Stop-on contact excitation RUN terminal function 80, 81, 90, 91, current low-speed multiplying 0 to 300%, 9999 9999...
  • Page 24 PARAMETER LIST Initial Initial Name Setting Range Name Setting Range Value Value Stop mode selection at Ethernet command source  847 0 to 255 0, 1, 2, 3 selection IP address 4 communication error Ethernet command source Maintenance timer 0 (1 to 9998) ...
  • Page 25 PARAMETER LIST Initial Name Setting Range Value PU contrast adjustment 0 to 63 Pr.CL Parameter clear 0, 1 ALLC All parameter clear 0, 1 Er.CL Faults history clear 0, 1 Pr.CH Initial value change list — —  Differ according to capacities. 6%: FR-E740-026SC or lower, FR-E720S-050SC or lower 4%: FR-E740-040SC to 095SC, FR-E720S-080SC and 110SC 3%: FR-E740-120SC and 170SC...

  • Page 26: Troubleshooting

     For the details of fault displays and other malfunctions, also refer to the FR-E700-EC Instruction Manual.  Past eight faults can be displayed using the setting dial. ( Refer to the FR-E700-EC Instruction Manual for the operation.) Reset method of protective function (1) Resetting the inverter The inverter can be reset by performing any of the following operations.
  • Page 27 List of fault or alarm indications List of fault or alarm indications Operation Panel Operation Panel Name Name Indication Indication E.ILF Input phase loss E--- Faults history ,  HOLD Operation panel lock E.OLT Stall prevention stop LOCD Password locked E.
  • Page 28 CE marking.  The authorized representative in the EU The authorized representative in the EU is shown below. Name: Mitsubishi Electric Europe B.V. Address: Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany  Note We declare that this inverter, when equipped with the dedicated EMC filter, conforms with the EMC Directive in industrial environments and affix the CE marking on the inverter.
  • Page 29 (2) Low Voltage Directive We have self-confirmed our inverters as products compliant to the Low Voltage Directive (Conforming standard EN 61800- 5-1) and affix the CE marking on the inverters.  Outline of instructions  Do not use an earth leakage circuit breaker as an electric shock protector without connecting the equipment to the earth. Connect the equipment to the earth securely.
  • Page 30 52.5% applies to operation at 6Hz or higher. (For selection of the operation characteristic, Inverter output current(%) refer to Chapter 4 of the FR-E700-EC (% to the inverter rated current) Instruction Manual.) Note  The internal accumulated heat value of the electronic thermal relay function is reset by inverter power reset and reset signal input.

  • Page 31: Appendix 2 Instructions For Ul And Cul

    Model Manufacturer Rated Voltage, Vac MMP-T32 Mitsubishi Electric Corp. 480Y/277  Suitable for Use in a Circuit Capable of Delivering Not More Than 50 or 25 kA rms Symmetrical Amperes, 480Y/277 Volts Maximum when protected by the Type E Combination motor Controllers indicated in the above table.

  • Page 32: Motor Overload Protection

    The SERIAL number (refer to Appendix 3) can be checked on the rating plate (refer to page 1) of the product. • Authorized sales representative (importer) in the CU area The authorized sales representative (importer) in the CU area is shown below. Name: Mitsubishi Electric (Russia) LLC Address: 52, bld 1 Kosmodamianskaya Nab 115054, Moscow, Russia Phone: +7 (495) 721-2070...
  • Page 33 Appendix 5 Restricted Use of Hazardous Substances in Electronic and Electrical Products The mark of restricted use of hazardous substances in electronic and electrical products is applied to the product as follows based on the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products” of the People's Republic of China.
  • Page 34 MEMO...
  • Page 35 (1) Damages caused by any cause found not to be the responsibility of Mitsubishi Electric. (2) Loss in opportunity, lost profits incurred to the user by Failures of Mitsubishi Electric products. (3) Special damages and secondary damages whether foreseeable or not, compensation for accidents, and compensation for damages to products other than Mitsubishi Electric products.
  • Page 36 • The copyright and other rights of the enclosed CD-ROM all belong to Mitsubishi Electric Corporation. • No part of the enclosed CD-ROM may be copied or reproduced without the permission of Mitsubishi Electric Corporation. • Specifications of the enclosed CD-ROM are subject to change for modification without notice.
  • Page 37 REVISIONS *The manual number is given on the bottom left of the back cover. Print Date Revision Manual Number Jun. 2017 IB-0600718ENG-A First edition IB-0600718ENG-A...
