Starting the Falcon Diagnostic Tool

The Falcon tool is part of the MGC Manager Options menu.
To Start the Diagnostics Tool:
1.
2.

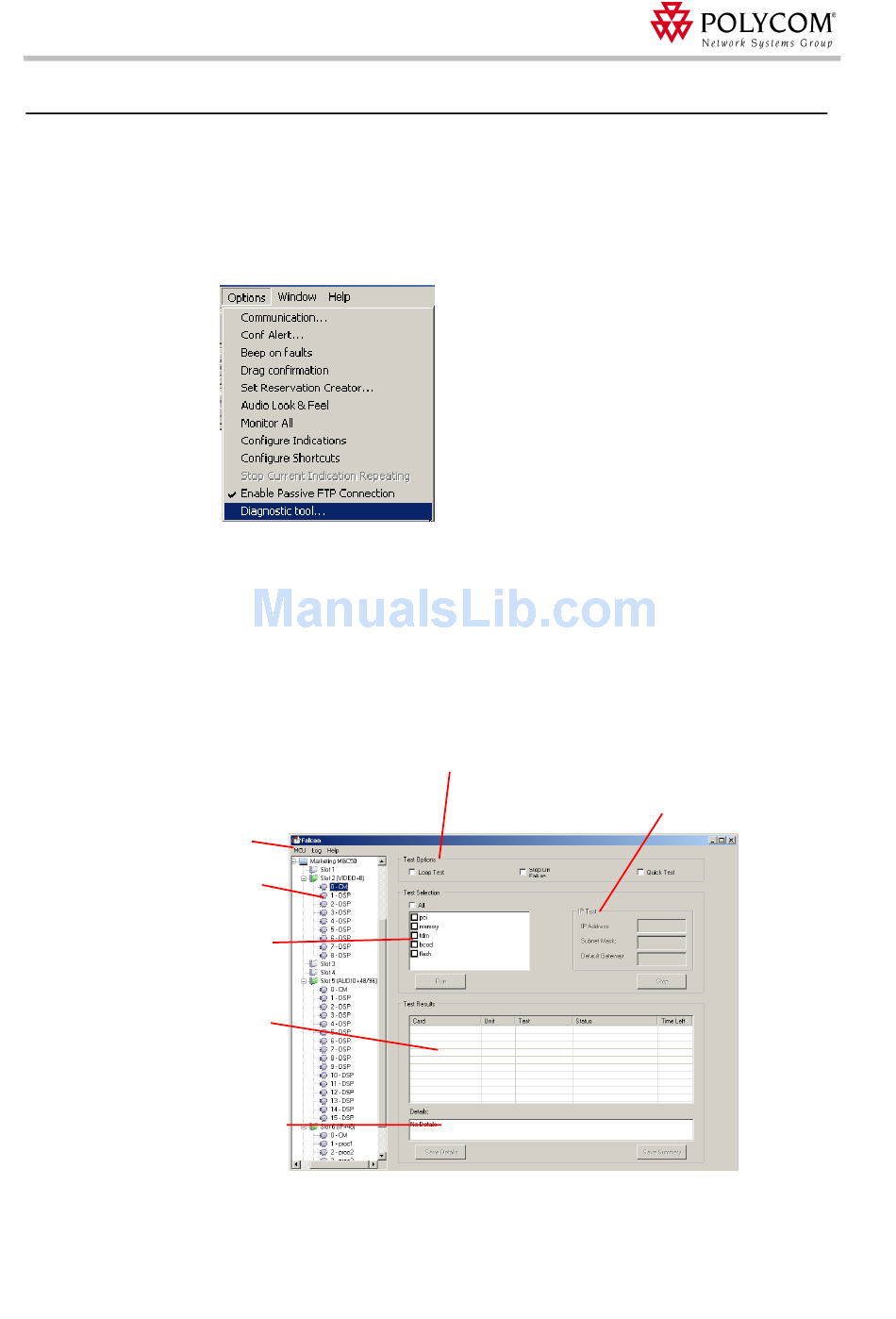

Falcon Main Window

Main menu
Browser pane
Tests available
for the selected
element
Displays the Test
Results.
Test columns
change if test is
run on an MCU
unit or on a card.
Detailed
explanation of
selected test
results
70
Terminate all On Going Conferences and cancel any soon to open Reservations on the
MCUs to be tested.
In the Options menu, select Diagnostics tool.
The Falcon diagnostics tool opens.
The Falcon diagnostics tool displays all the MCUs currently defined in the MGC
Manager, see "Falcon Main Window" on page 1-70. You can define other MCUs so
they can be displayed in the MGC Manager and in the Falcon tool.
The MCU network is displayed in a Browser pane on the left side of the Falcon
window.
Test Modes available for running tests
IP Test window. It is
enabled when running
the LAN test on an IP+
or IPN card.
