5. On the GVC3200/GVC3202 web UI→Maintenance→Upgrade page, configure TFTP as the "Firmware
upgrade mode" and enter the IP address of the PC in "Firmware server path" field.

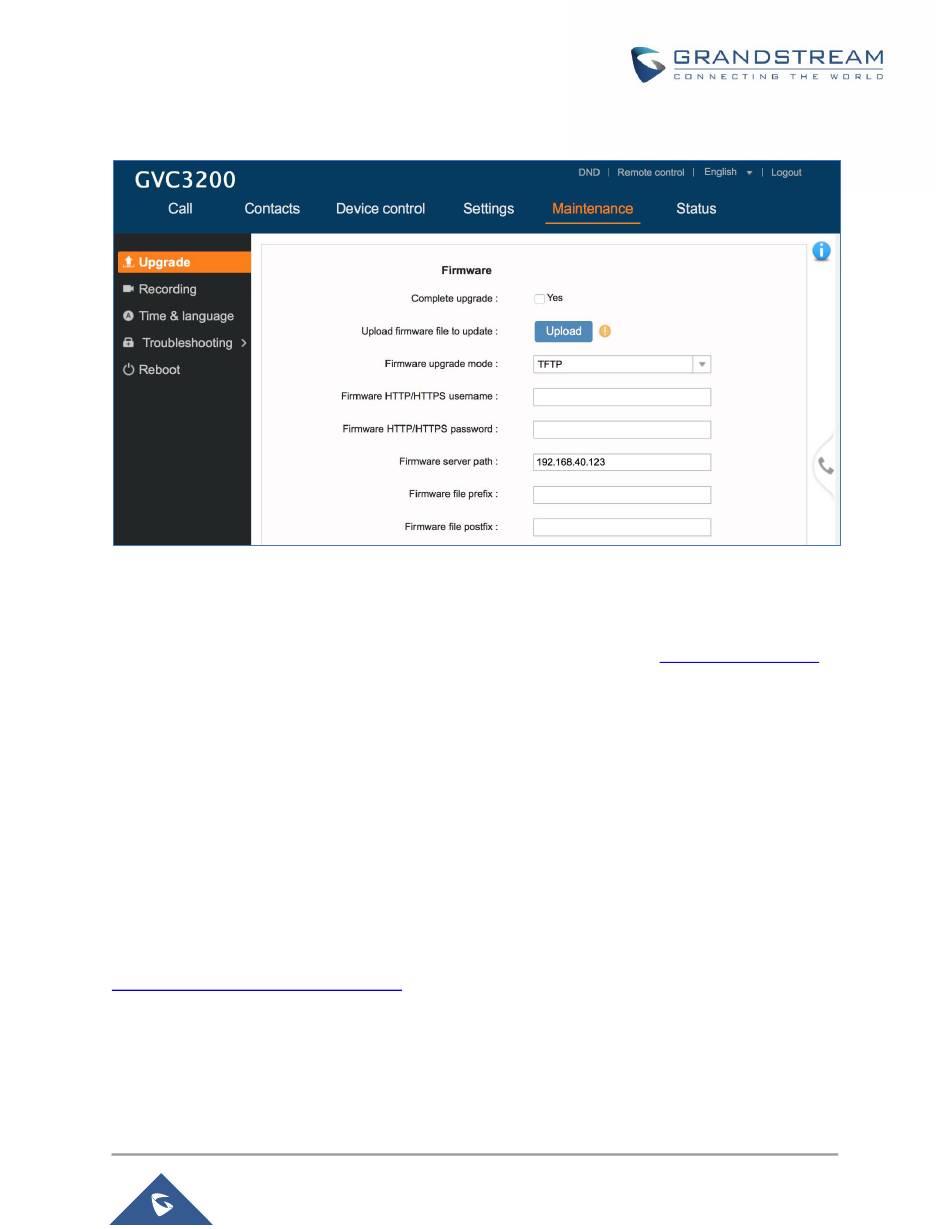

Figure 18: Configure Firmware Server Path

6. Save and apply the change. Then reboot the device.
Please note end users can also choose to download a free HTTP server from http://httpd.apache.org/ or
use Microsoft IIS web server.

Provisioning and Configuration File Download

Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File
(binary or XML) through TFTP or HTTP/HTTPS. The "Config Server Path" is the TFTP, HTTP or HTTPS
server path for the configuration file. It needs to be set to a valid URL, either in FQDN or IP address format.
The "Config Server Path" can be the same or different from the "Firmware Server Path". A configuration
parameter is associated with each particular field on the web configuration page. A parameter consists of a
Capital letter P and 2 to 4-digit numeric numbers. i.e., P2 is associated with the "Admin Password" in the
Web GUI→Maintenance→Web/SSH Access page. For a detailed parameter list, please refer to the
corresponding firmware release configuration template in the following link:
http://www.grandstream.com/support/tools
When the GVC3200/GVC3202 boots up, it will issue TFTP or HTTP request to download a configuration
XML file named "cfgxxxxxxxxxxxx" followed by "cfgxxxxxxxxxxxx.xml", where "xxxxxxxxxxxx" is the MAC
address of the device, i.e., "cfg000b820102ab" or "cfg000b820102ab.xml". If downloading
"cfgxxxxxxxxxxxx.xml" file is not successful, the provision program will download a generic cfg.xml file. The
configuration file name should be in lower case letters.
