Systems up to 350' [107 m]

Detail "A"
2
1' [30cm]
2
Detail "A"
Detail "B"
1
Wood Framed House: Requires Support Spanning 3 Trusses
Steel Framed House: Requires Support Spanning 2 Trusses
3

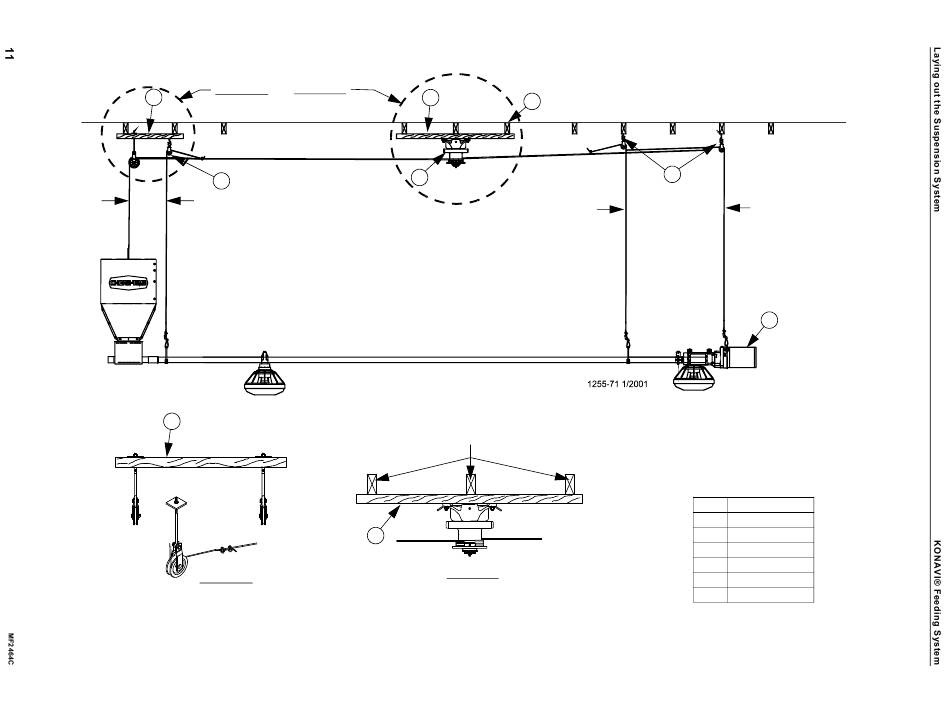

Figure 4. Suspension for systems up to 350' [107 m]
3
4
5
Detail "B"
1
3' [1m]
6
Item Description
1 Swivel Pulley
2 Hopper Support
3 Winch Support
4 Roof Truss
5 Winch
6 Power Unit
