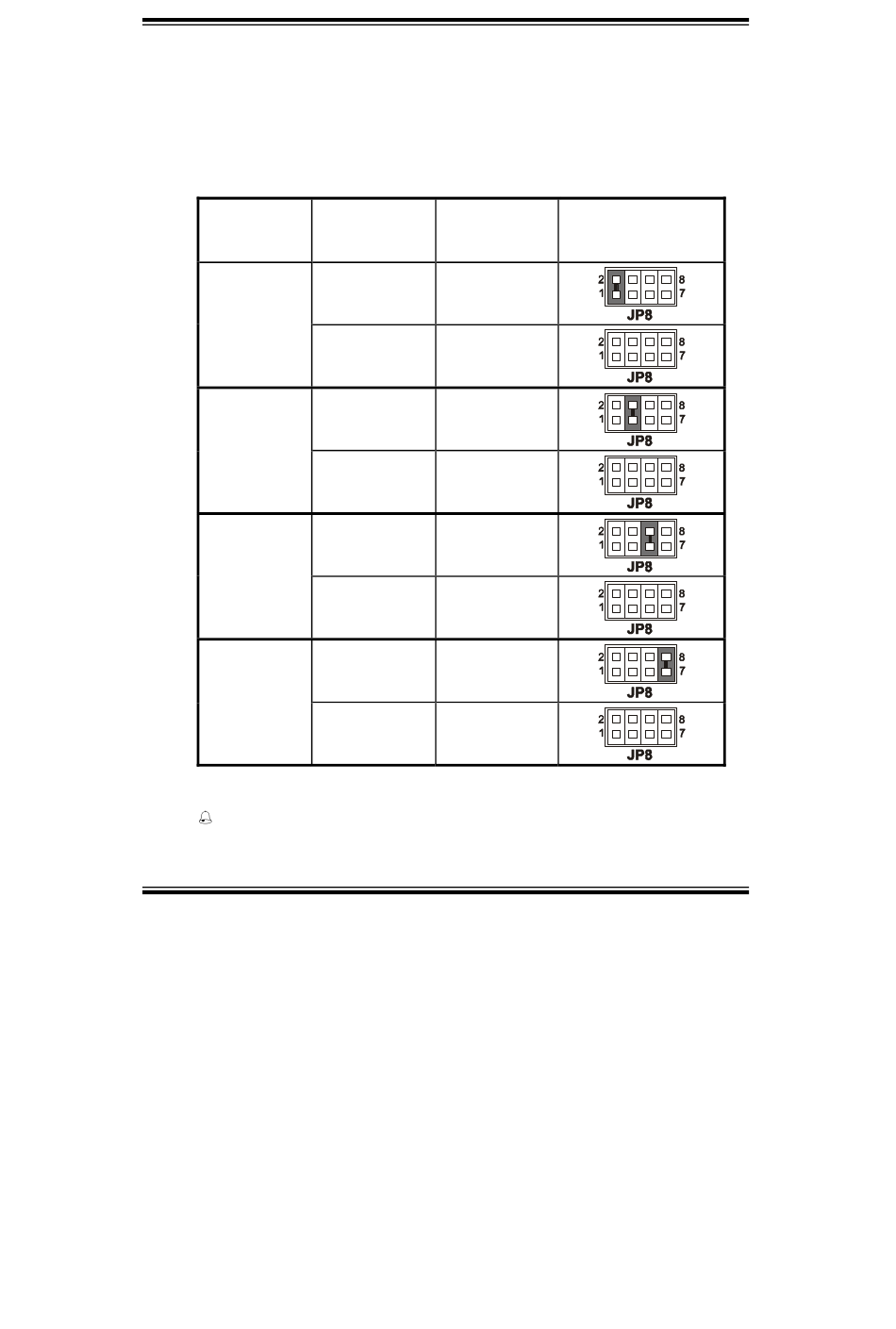

2-6. COM RI & VOLTAGE SELECTION
JP8 (1-2) : COM1 RI & Voltage Selection
JP8 (3-4) : COM2 RI & Voltage Selection
JP8 (5-6) : COM3 RI & Voltage Selection
JP8 (7-8) : COM4 RI & Voltage Selection
The selections are as follows:
COM PORT
COM1
COM2
COM3
COM4
***Manufacturing Default – RI. (All jumpers are closed).
For Voltage Selection, user may select +5V / +12V, please refer to our
"RI Voltage Selection".
'
Prox-1675 USER S MANUAL
Chapter 2 Hardware Configuration
SELECTION JUMPER
SETTINGS
RI 1-2
Voltage Open
RI 3-4
Voltage Open
RI 5-6
Voltage Open
RI 7-8
Voltage Open
JUMPER
ILLUSTRATION
