Chapter 2 Hardware Configuration

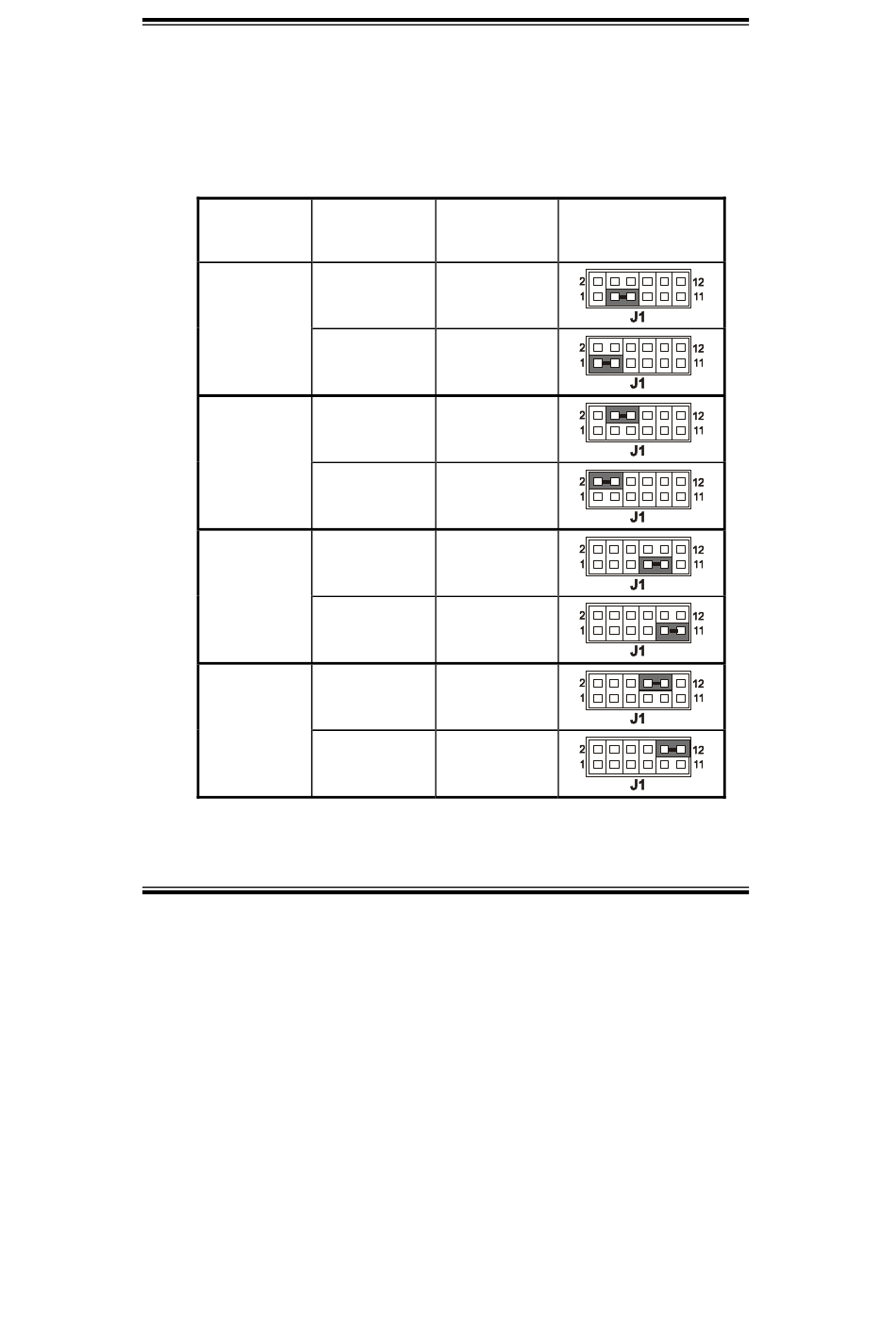

2-7. RI VOLTAGE SELECTION

J1 (1,3,5) : COM1 Voltage Selection
J1 (2,4,6) : COM2 Voltage Selection
J1 (7,9,11) : COM3 Voltage Selection
J1 (8,10,12) : COM4 Voltage Selection
The selections are as follows:
COM PORT
COM1
COM2
COM3
COM4
Page: 2-10
VOLTAGE JUMPER
SELECTION SETTINGS
+5V 3-5
+12V 1-3
+5V 4-6
+12V 2-4
+5V 7-9
+12V 9-11
+5V 8-10
+12V 10-12
JUMPER
ILLUSTRATION
'
Prox-1675 USER S MANUAL
