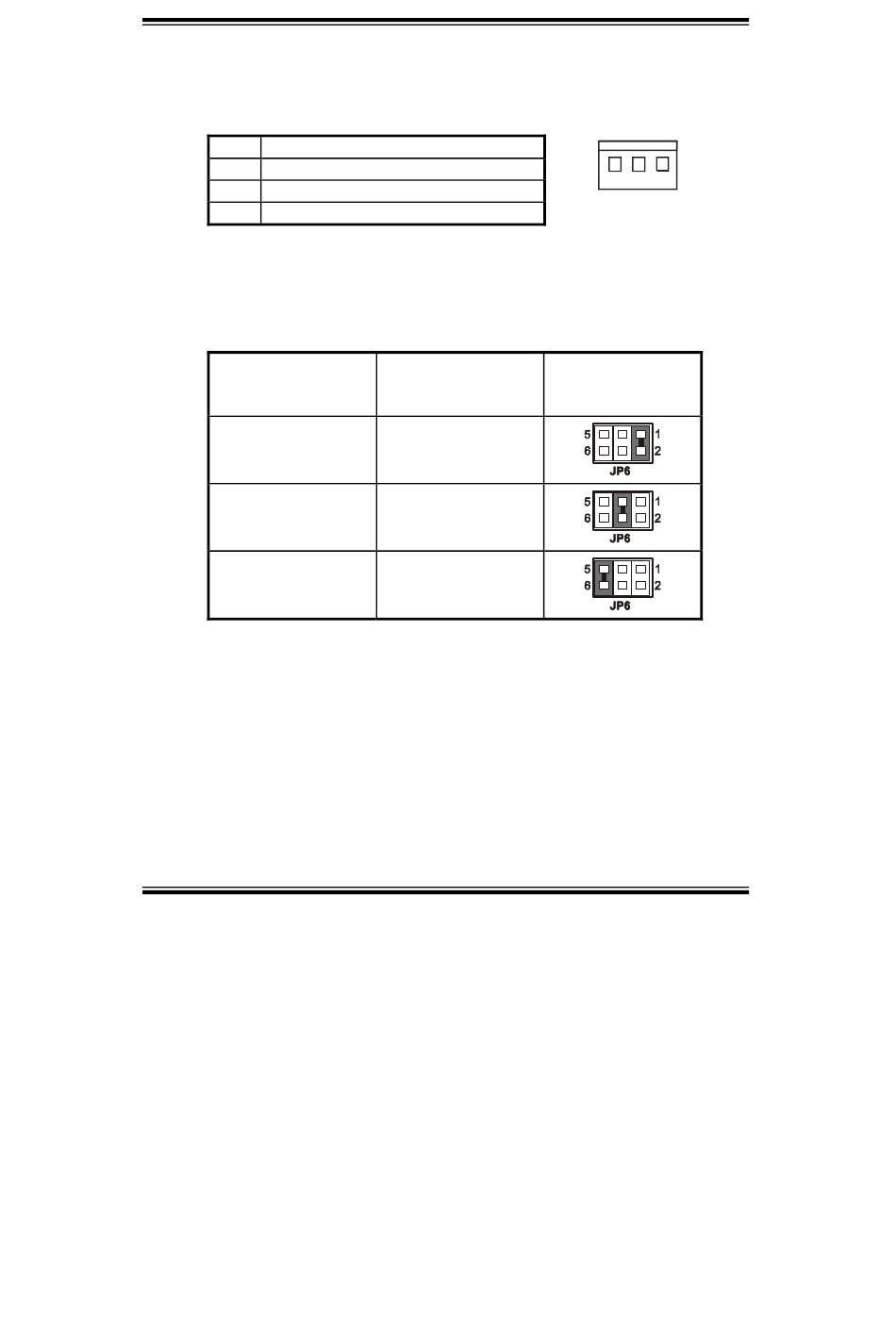

Cpu Fan Connector; Reset/Nmi/Clear Watchdog Selection - AXIOMTEK ProX-1675 User Manual

Chapter 2 Hardware Configuration

2-28. CPU FAN CONNECTOR

FAN2 : CPU Fan connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 FAN2 IN
2 +12V
3 GND

2-29. RESET/NMI/CLEAR WATCHDOG SELECTION

JP6 : Reset/NMI/Clear Watchdog Selection
The selections are as follows:
FUNCTION
RESET
NMI
CLEAR WATCHDOG
***Manufacturing Default is set as Reset.
Page: 2-26
JUMPER SETTING
(pin closed)
1-2
3-4
5-6
Prox-1675 USER
1
FAN2
JUMPER
ILLUSTRATION
'
S MANUAL
