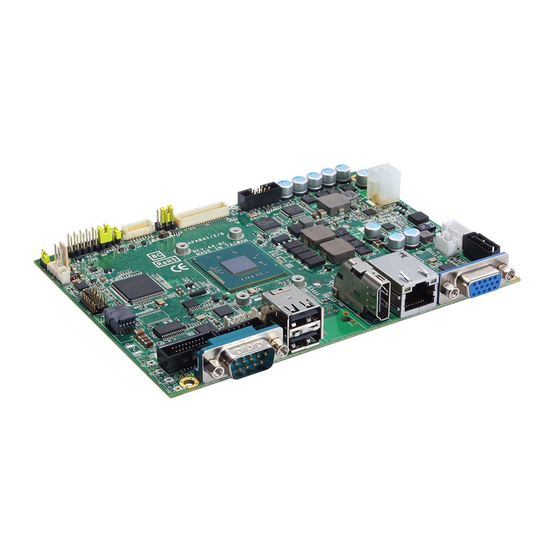

AXIOMTEK CAPA848 Series Quick Installation Manual

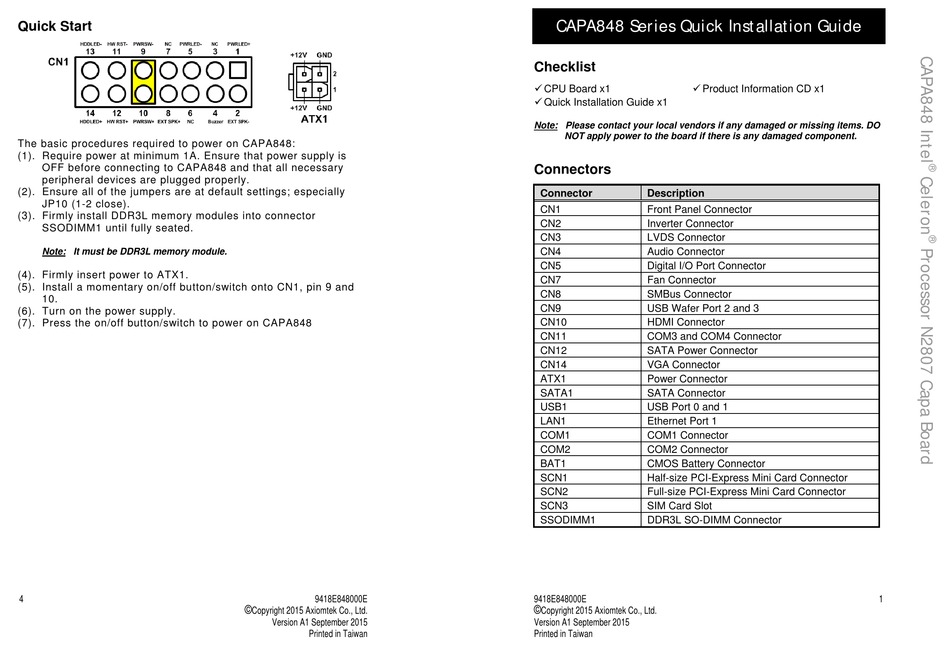

Quick Start
The basic procedures required to power on CAPA848:
(1). Require power at minimum 1A. Ensure that power supply is
OFF before connecting to CAPA848 and that all necessary
peripheral devices are plugged properly.
(2). Ensure all of the jumpers are at default settings; especially
JP10 (1-2 close).
(3). Firmly install DDR3L memory modules into connector
SSODIMM1 until fully seated.
Note: It must be DDR3L memory module.
(4). Firmly insert power to ATX1.
(5). Install a momentary on/off button/switch onto CN1, pin 9 and
10.
(6). Turn on the power supply.
(7). Press the on/off button/switch to power on CAPA848
4 9418E848000E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A1 September 2015
Printed in Taiwan
CAPA848 Series Quick Installation Guide

Checklist

 CPU Board x1  Product Information CD x1
 Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

Connectors

Connector Description
CN1 Front Panel Connector
CN2 Inverter Connector
CN3 LVDS Connector
CN4 Audio Connector
CN5 Digital I/O Port Connector
CN7 Fan Connector
CN8 SMBus Connector
CN9 USB Wafer Port 2 and 3
CN10 HDMI Connector
CN11 COM3 and COM4 Connector
CN12 SATA Power Connector
CN14 VGA Connector
ATX1 Power Connector
SATA1 SATA Connector
USB1 USB Port 0 and 1
LAN1 Ethernet Port 1
COM1 COM1 Connector
COM2 COM2 Connector
BAT1 CMOS Battery Connector
SCN1 Half-size PCI-Express Mini Card Connector
SCN2 Full-size PCI-Express Mini Card Connector
SCN3 SIM Card Slot
SSODIMM1 DDR3L SO-DIMM Connector
9418E848000E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A1 September 2015
Printed in Taiwan
1
