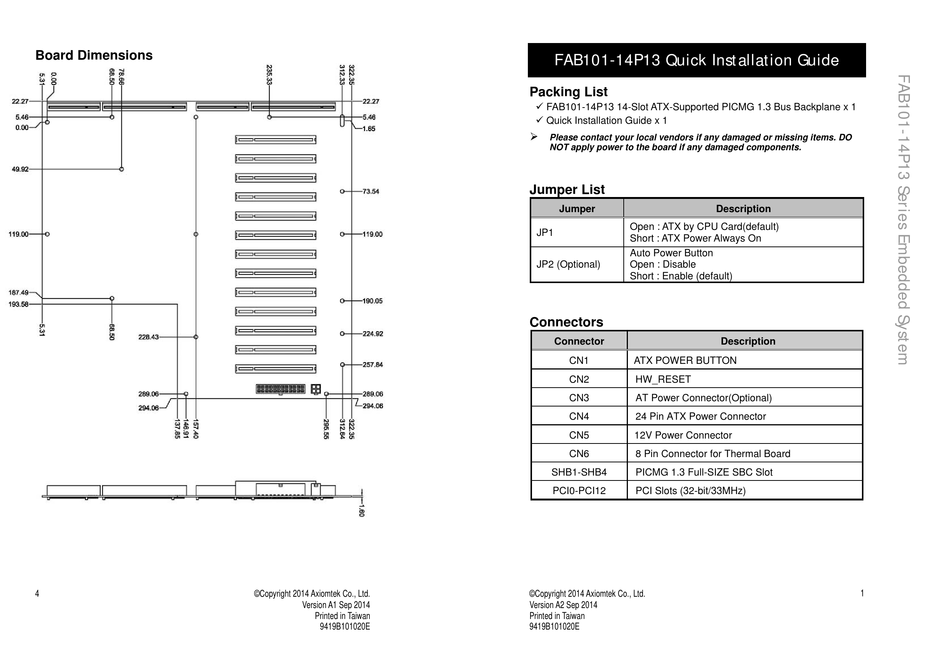

Board Dimensions
4
©Copyright 2014 Axiomtek Co., Ltd.
Version A1 Sep 2014
Printed in Taiwan
9419B101020E
FAB101-14P13 Quick Installation Guide
Packing List

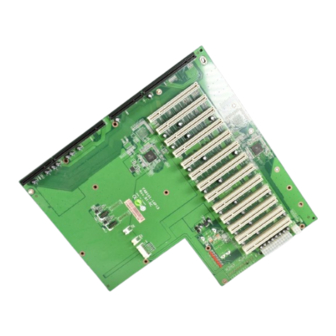

FAB101-14P13 14-Slot ATX-Supported PICMG 1.3 Bus Backplane x 1
Quick Installation Guide x 1
Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if any damaged components.
Jumper List
Jumper
Open : ATX by CPU Card(default)
JP1
Short : ATX Power Always On
Auto Power Button
JP2 (Optional)
Open : Disable
Short : Enable (default)
Connectors
Connector
CN1
ATX POWER BUTTON
CN2
HW_RESET
CN3
AT Power Connector(Optional)
CN4
24 Pin ATX Power Connector
CN5
12V Power Connector
CN6
8 Pin Connector for Thermal Board
SHB1-SHB4
PICMG 1.3 Full-SIZE SBC Slot
PCI0-PCI12
PCI Slots (32-bit/33MHz)
©Copyright 2014 Axiomtek Co., Ltd.
Version A2 Sep 2014
Printed in Taiwan
9419B101020E
Description
Description
1
