AXIOMTEK PICO841 Quick Installation Manual

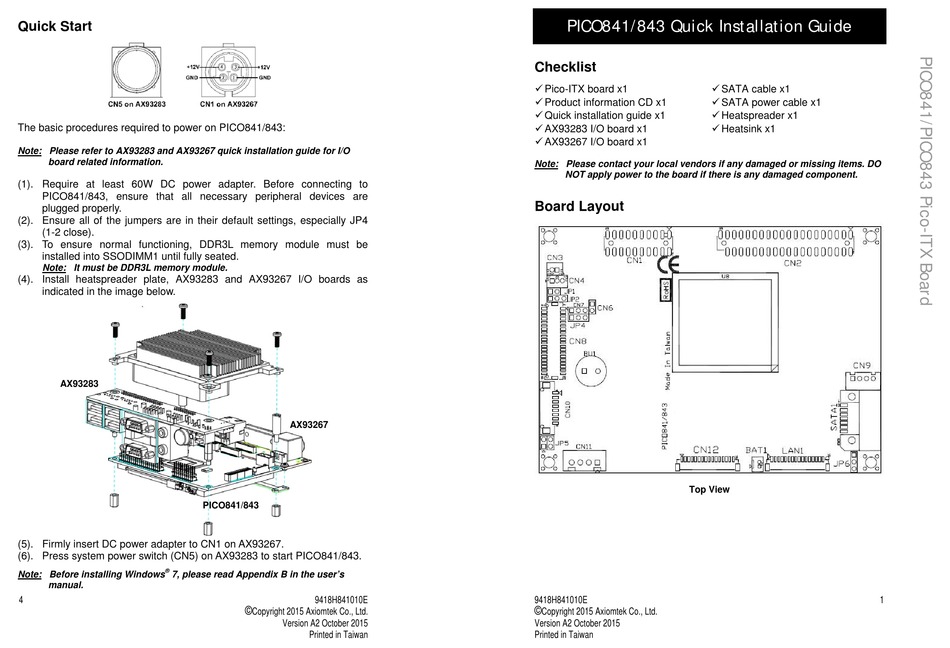

Quick Start
The basic procedures required to power on PICO841/843:
Note: Please refer to AX93283 and AX93267 quick installation guide for I/O
board related information.
(1). Require at least 60W DC power adapter. Before connecting to
PICO841/843, ensure that all necessary peripheral devices are
plugged properly.
(2). Ensure all of the jumpers are in their default settings, especially JP4
(1-2 close).
(3). To ensure normal functioning, DDR3L memory module must be
installed into SSODIMM1 until fully seated.
Note: It must be DDR3L memory module.
(4). Install heatspreader plate, AX93283 and AX93267 I/O boards as
indicated in the image below.
AX93283
(5). Firmly insert DC power adapter to CN1 on AX93267.
(6). Press system power switch (CN5) on AX93283 to start PICO841/843.
®
Note: Before installing Windows 7, please read Appendix B in the user's
manual.
4
AX93267
PICO841/843
9418H841010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 October 2015
Printed in Taiwan
PICO841/843 Quick Installation Guide
Checklist
 Pico-ITX board x1  SATA cable x1
 Product information CD x1  SATA power cable x1
 Quick installation guide x1  Heatspreader x1
 AX93283 I/O board x1  Heatsink x1
 AX93267 I/O board x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

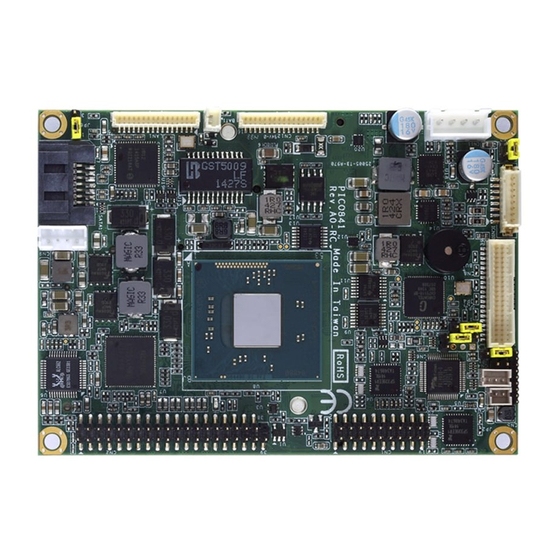

Board Layout
Top View
9418H841010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 October 2015
Printed in Taiwan
1
