Chapter 2 Hardware Configuration

2-9. SSD MEMORY MAPPING SELECTION

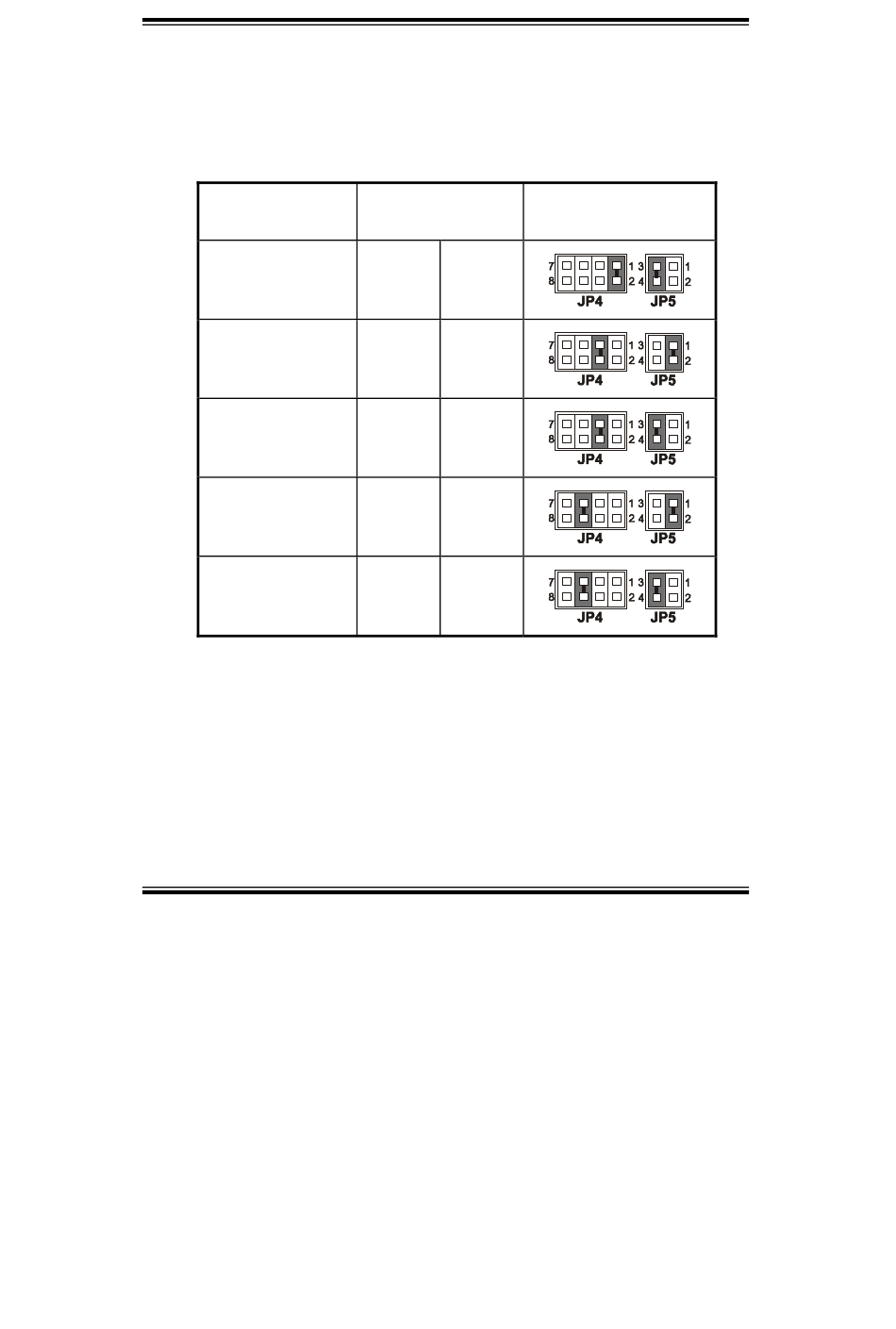

JP4, JP5 : SSD Memory Mapping Selection
A 32-pin SSD socket supports Disk-on-Chip up to 144MB. This PnP Flash
ROM SSD can be install as one of user's hard disk drive.
The SSD Memory Mapping Selections are as follows:
SSD Memory Map
CC000h-CDFFFh
D0000h-D1FFFh
D4000h-D5FFFh
D8000h-D9FFFh
DC000h-DDFFFh
*** Manufactory default --- CC000h-CDFFFh
Page: 2-12
Jumper Settings
(pins closed)
JP4 JP5
1-2 3-4
3-4 1-2
3-4 3-4
5-6 1-2
5-6 3-4
Prox-1675 USER
Jumper
Illustration
'
S MANUAL
