AXIOMTEK PICO840 Quick Installation Manual

Quick Start
The basic procedures required to power on PICO840/842:
Note: Please refer to AX93283 quick installation guide for I/O board related
information.
(1). Require at least +12V/1.5A DC power adapter. Ensure that power
adapter is OFF before connecting to PICO840/842 and that all
necessary peripheral devices are plugged properly.
(2). Ensure all of the jumpers and switch are in their default settings,
especially SW1 (1-2 close).
(3). To ensure normal functioning, DDR3L memory module must be
installed into connector SSODIMM1 until fully seated.
Note: It must be DDR3L memory module.
(4). Install heatspreader and AX93283 I/O board as indicated in the image
below.
PICO840/842
(5). Firmly insert DC power adapter to CN3 on PICO840/842.
(6). Press system power switch (CN5) on AX93283 to start PICO840/842.
4
AX93283
9418H840010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 September 2015
Printed in Taiwan
PICO840/842 Quick Installation Guide
Checklist
 Pico-ITX board x1  SATA cable x1
 Product information CD x1  SATA power cable x1
 Quick installation guide x1  Heatspreader x1
 AX93283 I/O board x1  Heatsink x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

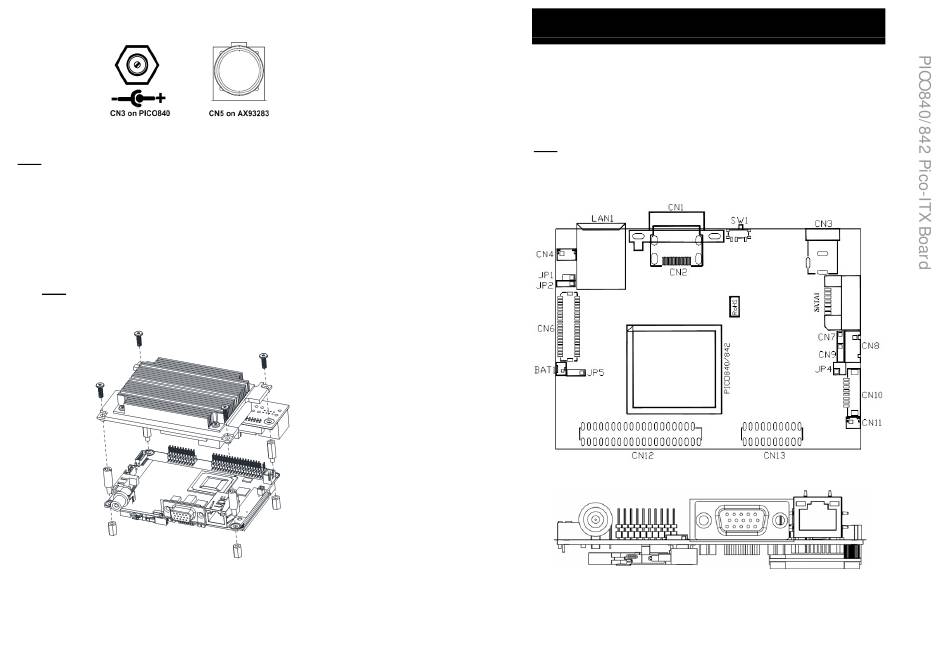

Board Layout
Top View
Side View
9418H840010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 September 2015
Printed in Taiwan
1
