Chapter 2 Hardware Configuration
2-5. RS232/422/485 (COM2) SELECTION

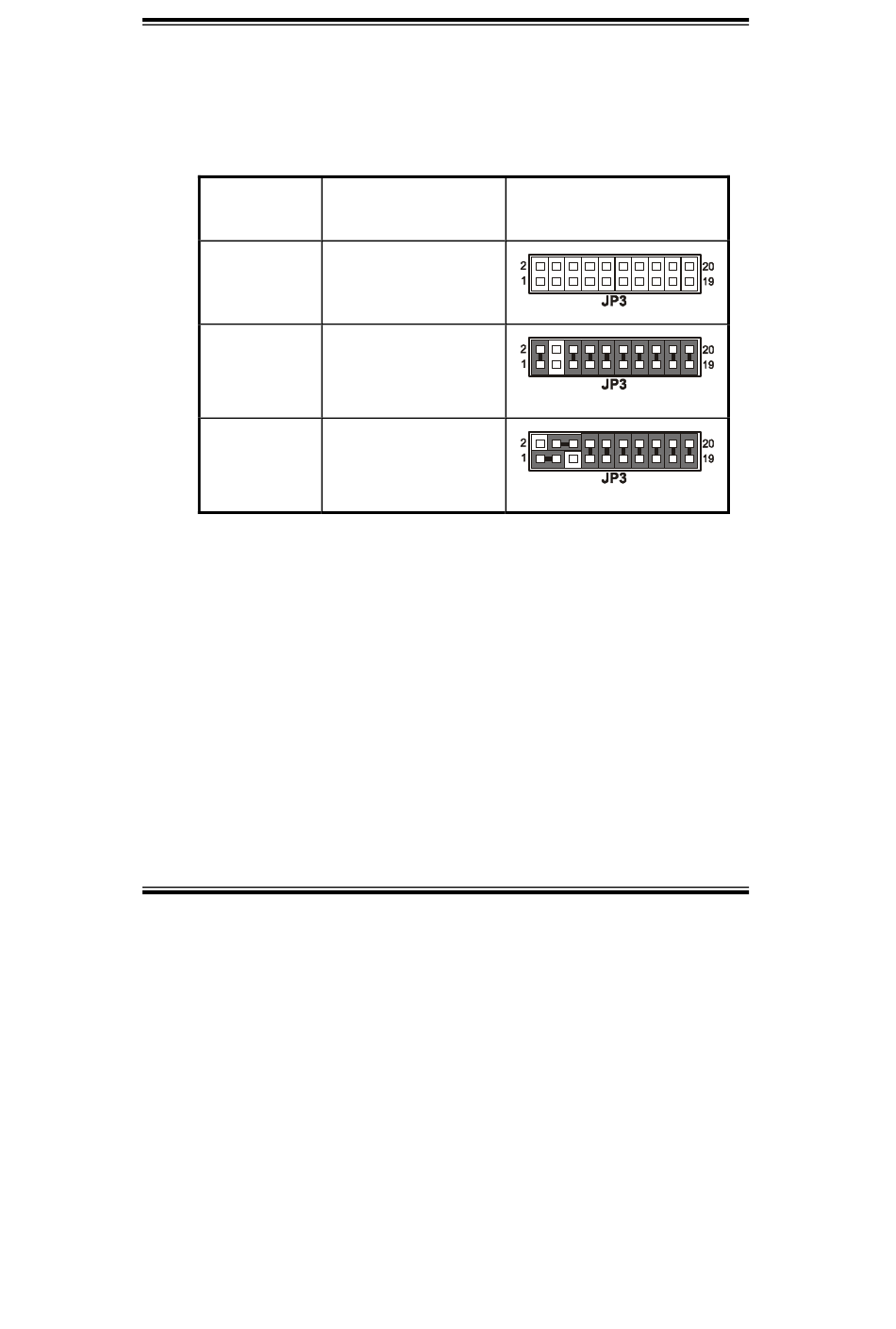

JP3 : RS-232/422/485 Selection
COM2 is selectable for RS-232, 422, 485 function.
The jumper settings are as follows :
COM 2
FUNCTION
RS-232
RS-422
RS-485
*** Manufactory default --- RS-232.
Page: 2-8
JUMPER SETTING
(pin closed)
Open
1-2, 5-6, 7-8, 9-10
11-12, 13-14, 15-16
17-18, 19-20
1-3, 4-6, 7-8, 9-10
11-12, 13-14, 15-16
17-18, 19-20
JUMPER
ILLUSTRATION
'
Prox-1675 USER
S MANUAL
