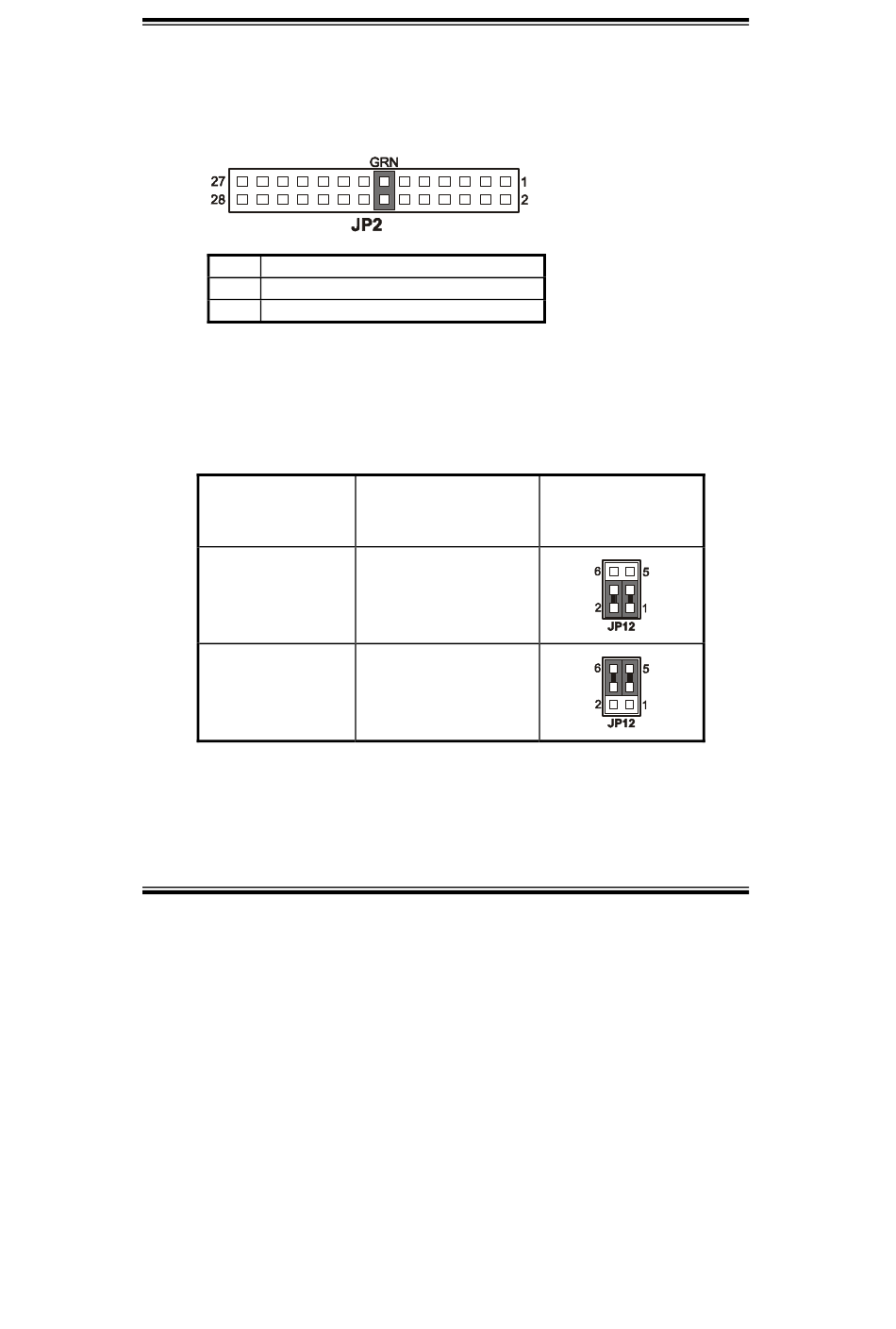

2-18. GREEN FUNCTION CONNECTOR

JP2 (13,14): Green Function Connector
The pin assignments are as follows:
PIN ASSIGNMENT
13 EXTSMI-
14 GND
2-19. PANELLINK & LVDS SELECTION
JP12: PanelLink™ & LVDS Selection
The selections are as follows:
SELECTION
PanelLink™
LVDS
'
Prox-1675 USER S MANUAL
Chapter 2 Hardware Configuration
JUMPER SETTING
(pin closed)
1-3
2-4
3-5
4-6
JUMPER
ILLUSTRATION
Page: 2-17
