PICO511:
[ 4pcs, 793803ZZ600E - 5H*8L*M3 Hex female copper stand-off, true color
\ 2pcs, 79380363600E - 5H*8L*6L*M3 Hex male-female copper stand-off, true color
] 2pcs, 79395363200E - 5H*9.5L*6L*M3 Hex male-female copper stand-off, nickel-plated
AX93A07:
^ 1pcs, 72932670100e - AX93A07 bracket
_ 2pcs, 793703ZZ600E - 5H*7L*M3 Hex female copper stand-off, true color
(5). Firmly insert the DC power adapter into CN5 on AX93A07.
(6). Power on the system by inserting power plug.
4
Thermal Solution
9418H511000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 March 2017
Printed in Taiwan

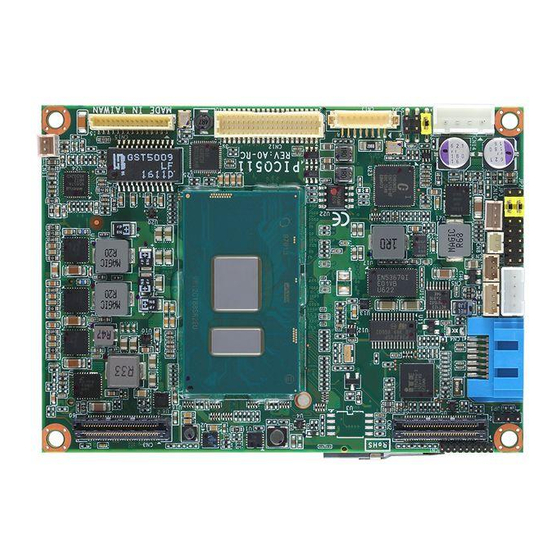

PICO511 Quick Installation Guide
Checklist
Pico-ITX Board x1
Product Information CD x1
Quick Installation Guide x1
AX93A07 I/O Board x1
USB Cable x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Board Layout
Top View
9418H511000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 March 2017
Printed in Taiwan
SATA Cable x1
SATA Power Cable x1
Fan Cable x1
Heatspreader x1
Heatsink x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AXIOMTEK PICO511
Summary of Contents for AXIOMTEK PICO511
- Page 1 PICO511 Quick Installation Guide Thermal Solution Checklist Pico-ITX Board x1 SATA Cable x1 Product Information CD x1 SATA Power Cable x1 Quick Installation Guide x1 Fan Cable x1 AX93A07 I/O Board x1 Heatspreader x1 USB Cable x1 Heatsink x1 Note: Please contact your local vendors if any damaged or missing items. DO NOT apply power to the board if there is any damaged component.
- Page 2 SCN1 Full-size PCI-Express Mini Card or mSATA Connector SCN2 DDR4 SO-DIMM Connector Note: Please refer to the PICO511 product information CD for the complete SCN3 Half-size PCI-Express Mini Card user’s manual, drivers and utilities. User’s manual and related documents are in Acrobat PDF format.
