2-36. MEMORY INSTALLATION

The Prox-1675 Embedded Computer supports 1 SDRAM bank.
DRAM BANK CONFIGURATION
DIMM 1
32MB
64MB
128MB
256MB
512MB

2-37. CPU TYPE SELECTION

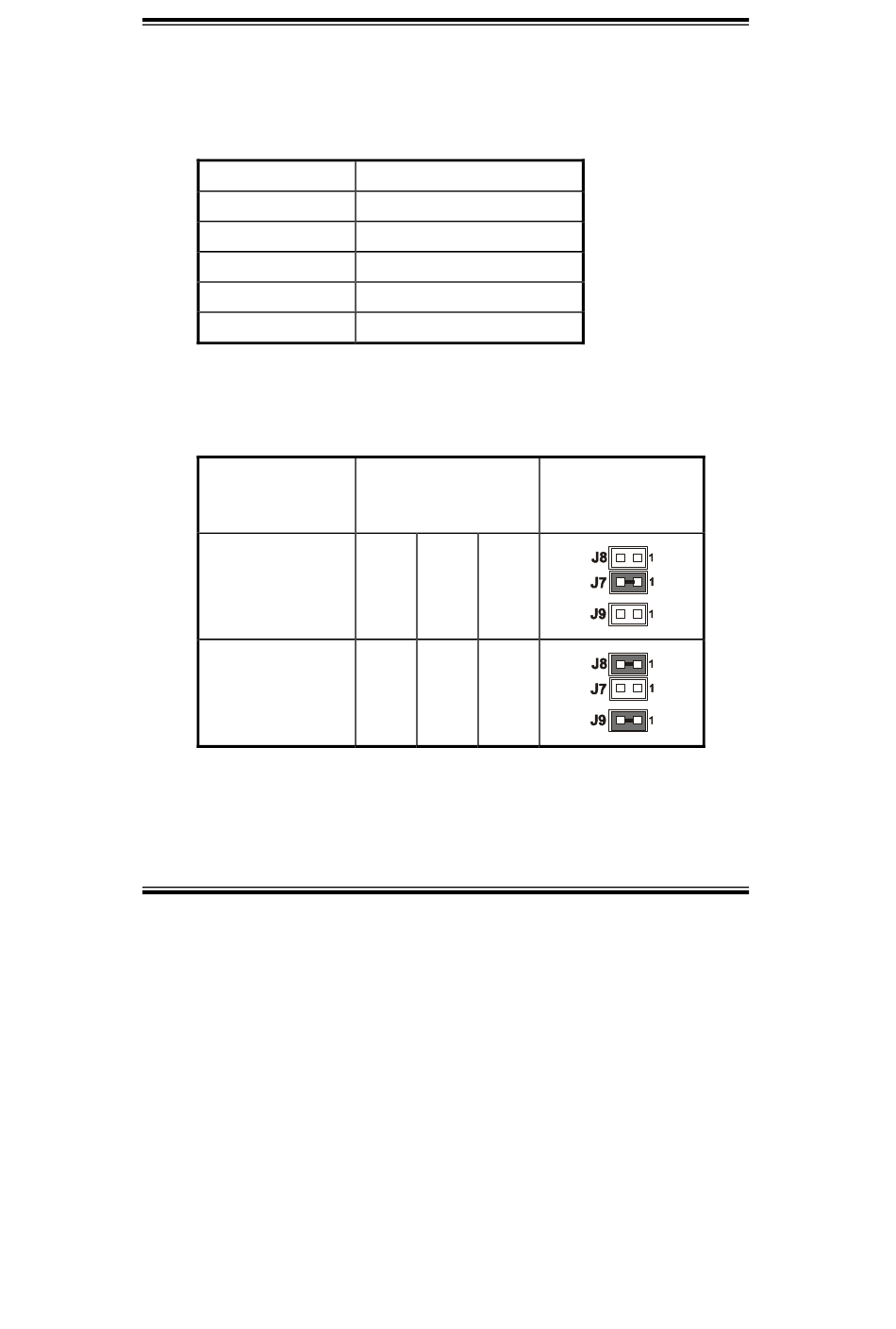

J7, J8, J9: CPU Type Selection
The selections are as follows:
FUNCTION
INTEL®
VIA C3
Page: 2-30
TOTAL MEMORY
32MB
64MB
128MB
256MB
512MB
JUMPER SETTING
(pin closed)
J8 J7 J9
Open Closed Open
Closed Open Closed
JUMPER
ILLUSTRATION
'
