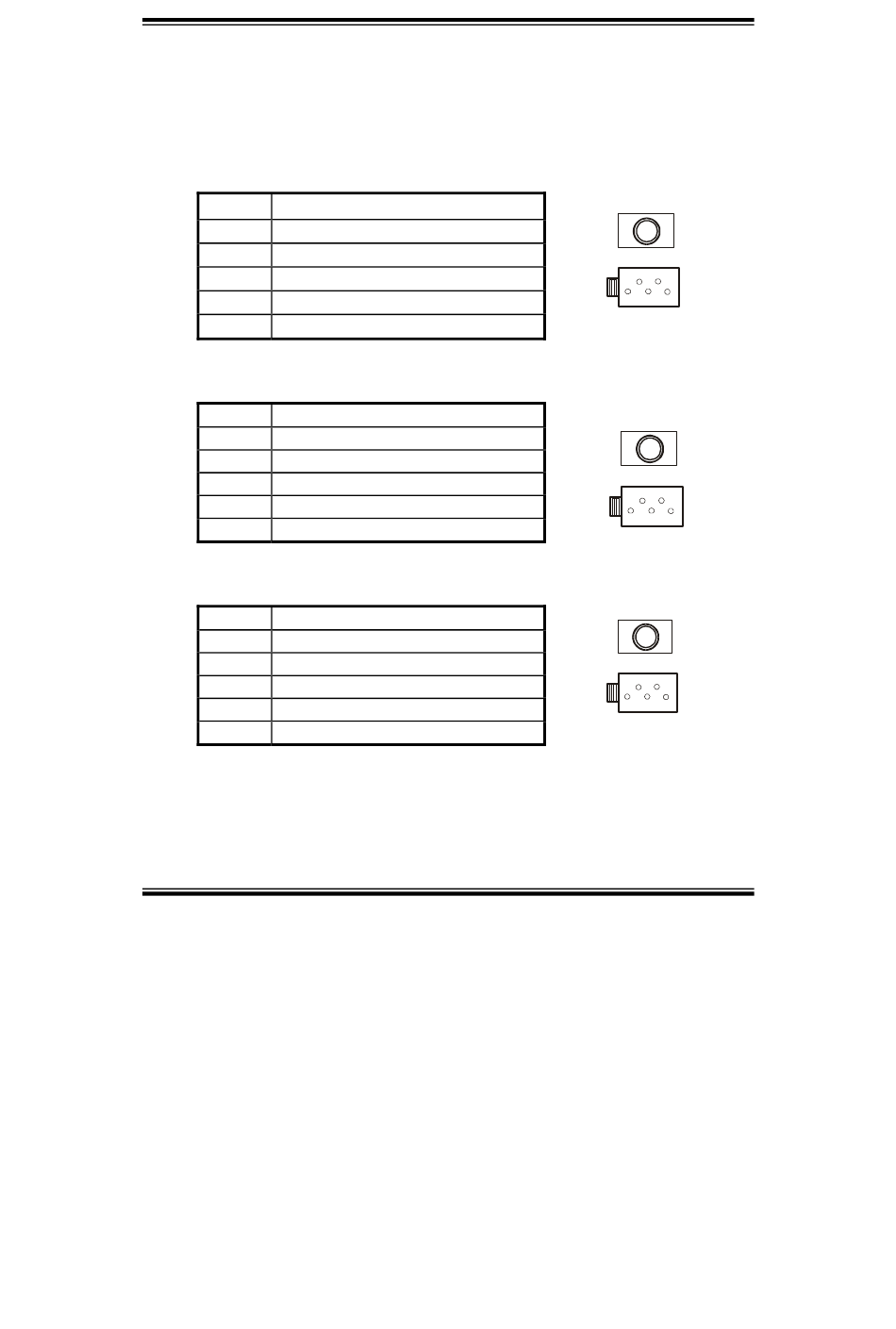

Connector's Pin Assignment:
You will find the following connectors on the W-Sound Adapter Card, pin
assignment are listed as follows:
MIC : Microphone Connector
The pin assignments are as follows :
PIN ASSIGNMENT
1 GND
2 MIC-IN
3 NC
4 MIC VDD
5 GND
Audio-Out (SPK) : Speaker Connector
The pin assignments are as follows :
PIN ASSIGNMENT
1 GND
2 SPK-L
3 NC
4 SPK-R
5 NC
LINE-IN : Line Input Connector
The pin assignments are as follows :
PIN ASSIGNMENT
1 GND
2 LINE-R
3 GND
4 LINE-L
5 GND
'
Prox-1675 USER S MANUAL
Appendix A ADAPTER CARD
MIC
2
1
AUDIO-OUT
(SPK)
2
1
LINE-IN
2
1
4
3 5
4
3 5
4
3 5
