Chapter 2 Hardware Configuration

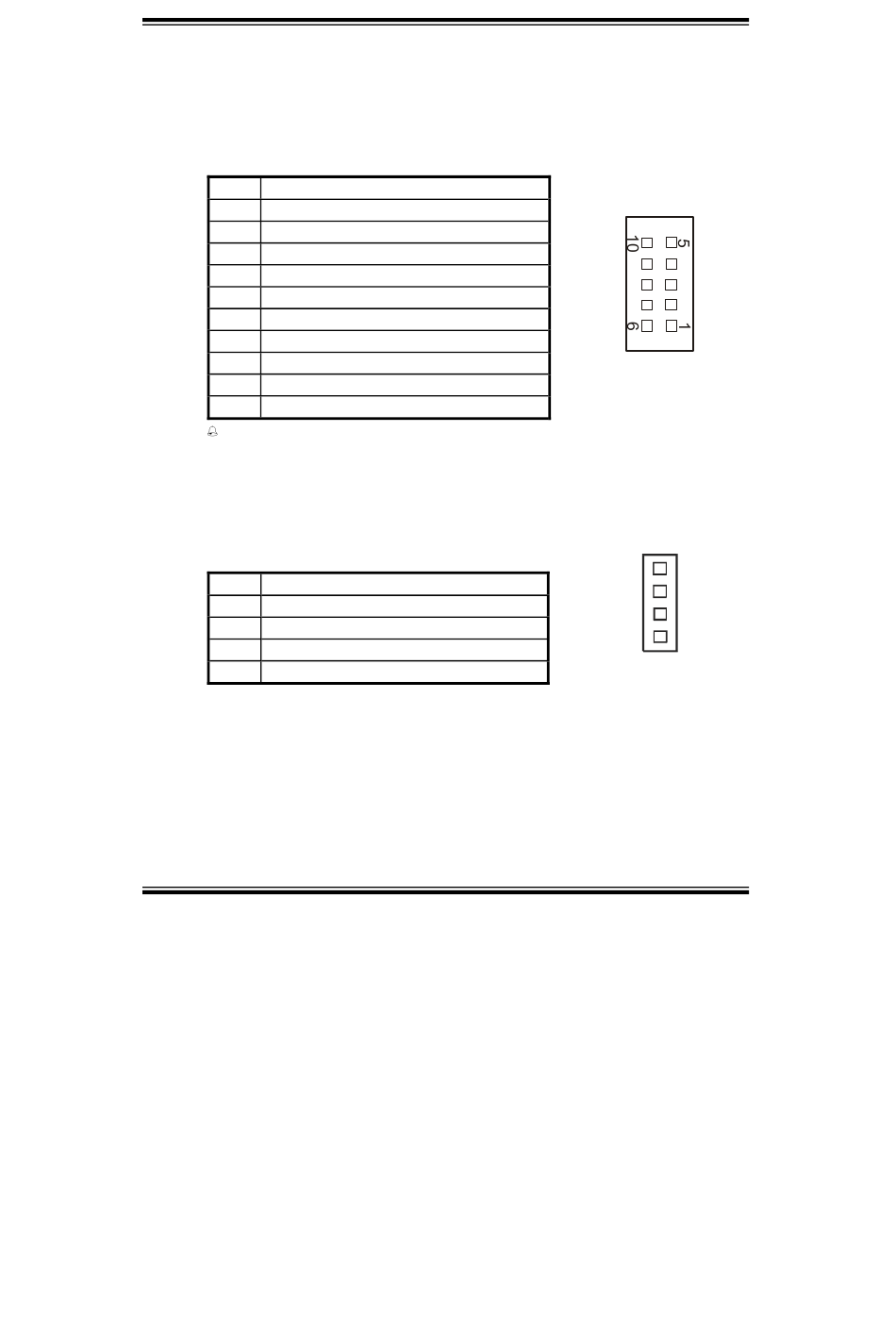

2-32. SOUND CONNECTOR

JP7 : Sound Connector
This connector is used to connect the microphone, line-in, and line-out
through our adapter card. The pin assignments are as follows:
PIN ASSIGNMENT
1 MIC-IN
2 MIC-VDD
3 GND
4 GND
5 LINE-L
6 LINE-R
7 GND
8 GND
9 SPK-L
10 SPK-R
Please refer our Appendix A for more information about installation.

2-33. CD AUDIO-IN CONNECTOR

CD_IN : CD Audio-in Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 AUXAL
2 GND
3 GND
4 AUXAR
Page: 2-28
JP7
1
CD_IN
'
