4-14 Hardware Upgrades

Internal Components

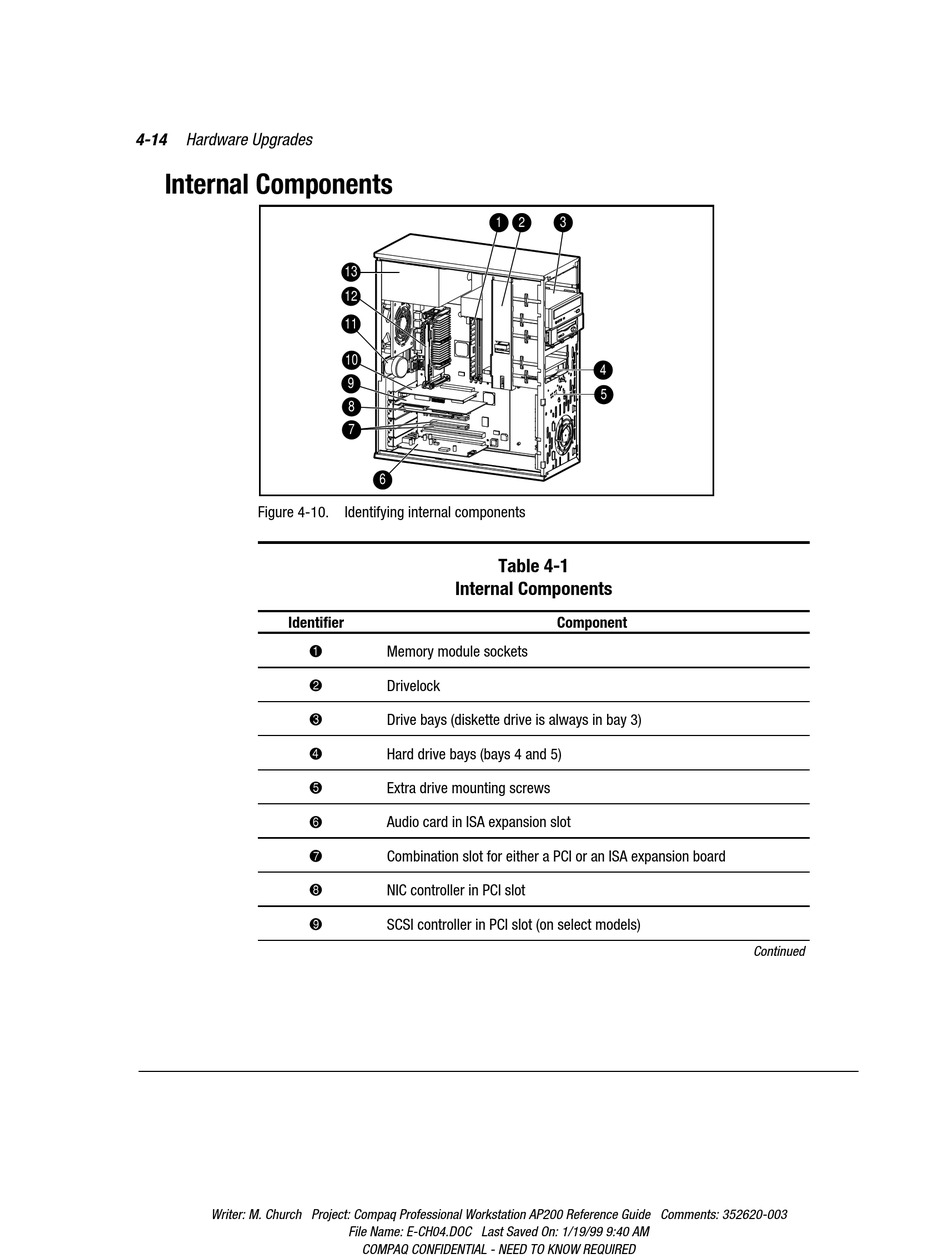

Figure 4-10. Identifying internal components
Identifier
1
2
3
4
5
6
7
8
9
Writer: M. Church Project: Compaq Professional Workstation AP200 Reference Guide Comments: 352620-003
1 2
13
12
11
10
9
8
7
6
Table 4-1
Internal Components
Memory module sockets
Drivelock
Drive bays (diskette drive is always in bay 3)
Hard drive bays (bays 4 and 5)
Extra drive mounting screws
Audio card in ISA expansion slot
Combination slot for either a PCI or an ISA expansion board
NIC controller in PCI slot
SCSI controller in PCI slot (on select models)
File Name: E-CH04.DOC Last Saved On: 1/19/99 9:40 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3
4
5
Component
Continued
