Keyboard Lights

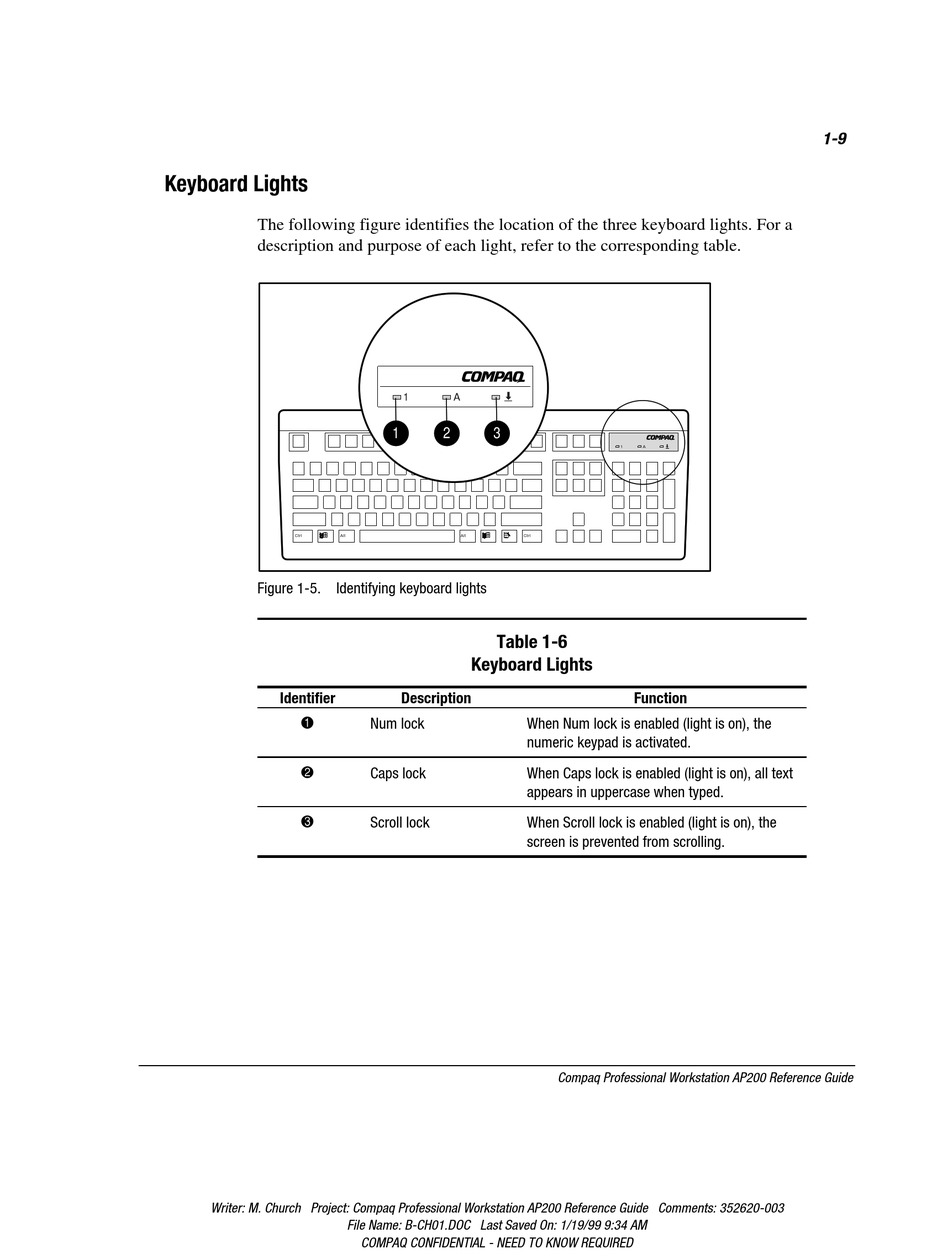

The following figure identifies the location of the three keyboard lights. For a
description and purpose of each light, refer to the corresponding table.
Ctrl Alt
Figure 1-5. Identifying keyboard lights
Identifier
1
2
3
Writer: M. Church Project: Compaq Professional Workstation AP200 Reference Guide Comments: 352620-003
1 A
1 2 3
Alt Ctrl
Table 1-6
Keyboard Lights
Description
Num lock
Caps lock
Scroll lock
File Name: B-CH01.DOC Last Saved On: 1/19/99 9:34 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1 A
Function
When Num lock is enabled (light is on), the
numeric keypad is activated.
When Caps lock is enabled (light is on), all text
appears in uppercase when typed.
When Scroll lock is enabled (light is on), the
screen is prevented from scrolling.
Compaq Professional Workstation AP200 Reference Guide
1-9
