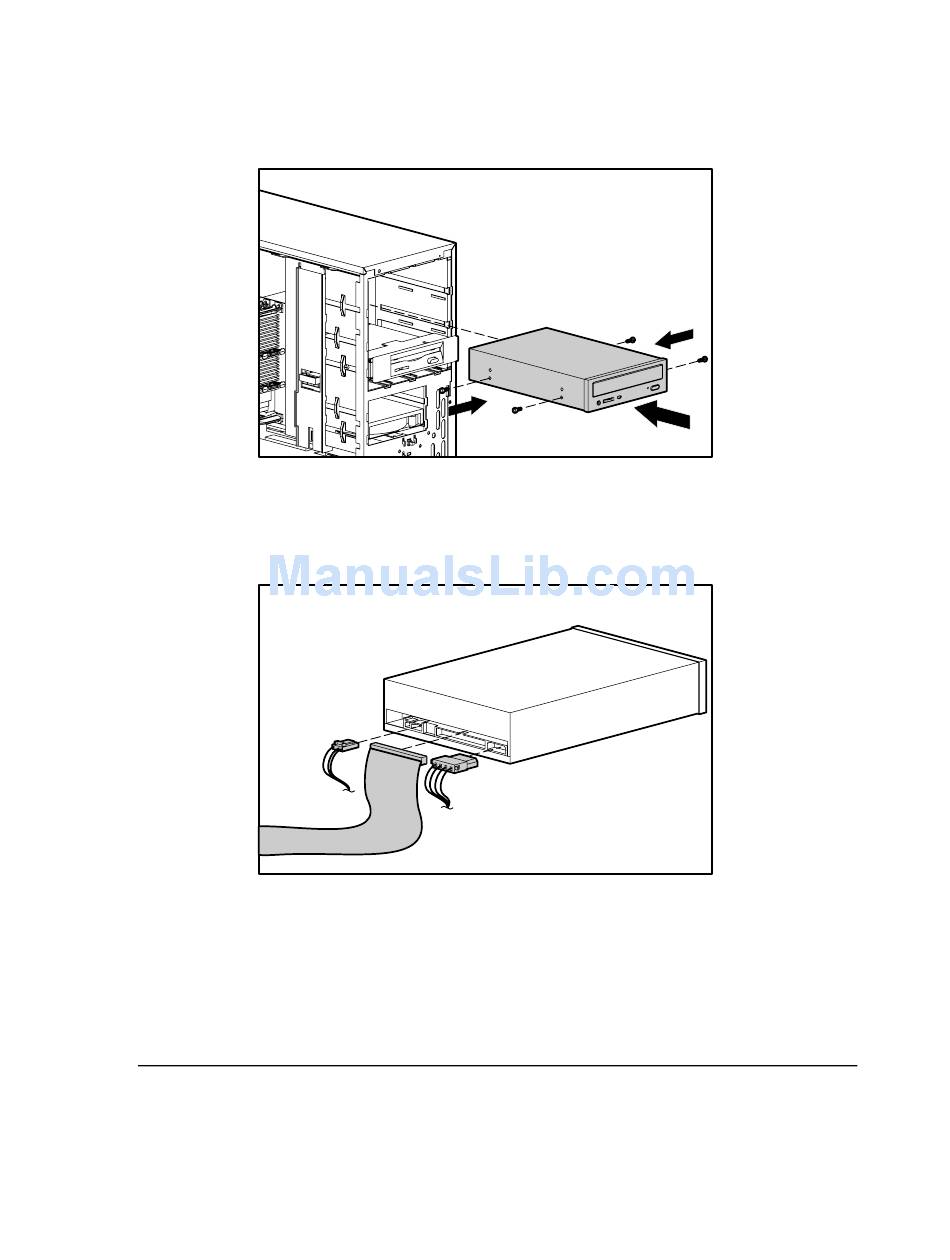

Figure 4-17. Aligning the guide screws and installing an optional 5.25-inch drive
4.
Connect the drive power and signal cables and, if it is a CD-ROM drive,
connect the audio cable. The other end of the audio cable should be
connected to the optional audio board, if installed.
Figure 4-18. Connecting the drive cables to the drive
Writer: M. Church Project: Compaq Professional Workstation AP200 Reference Guide Comments: 352620-003
File Name: E-CH04.DOC Last Saved On: 1/19/99 9:40 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq Professional Workstation AP200 Reference Guide
4-29
