Oracle ZS3 Series Owner's Manual page 375

Figure Legend
4 Power/Activity indicator

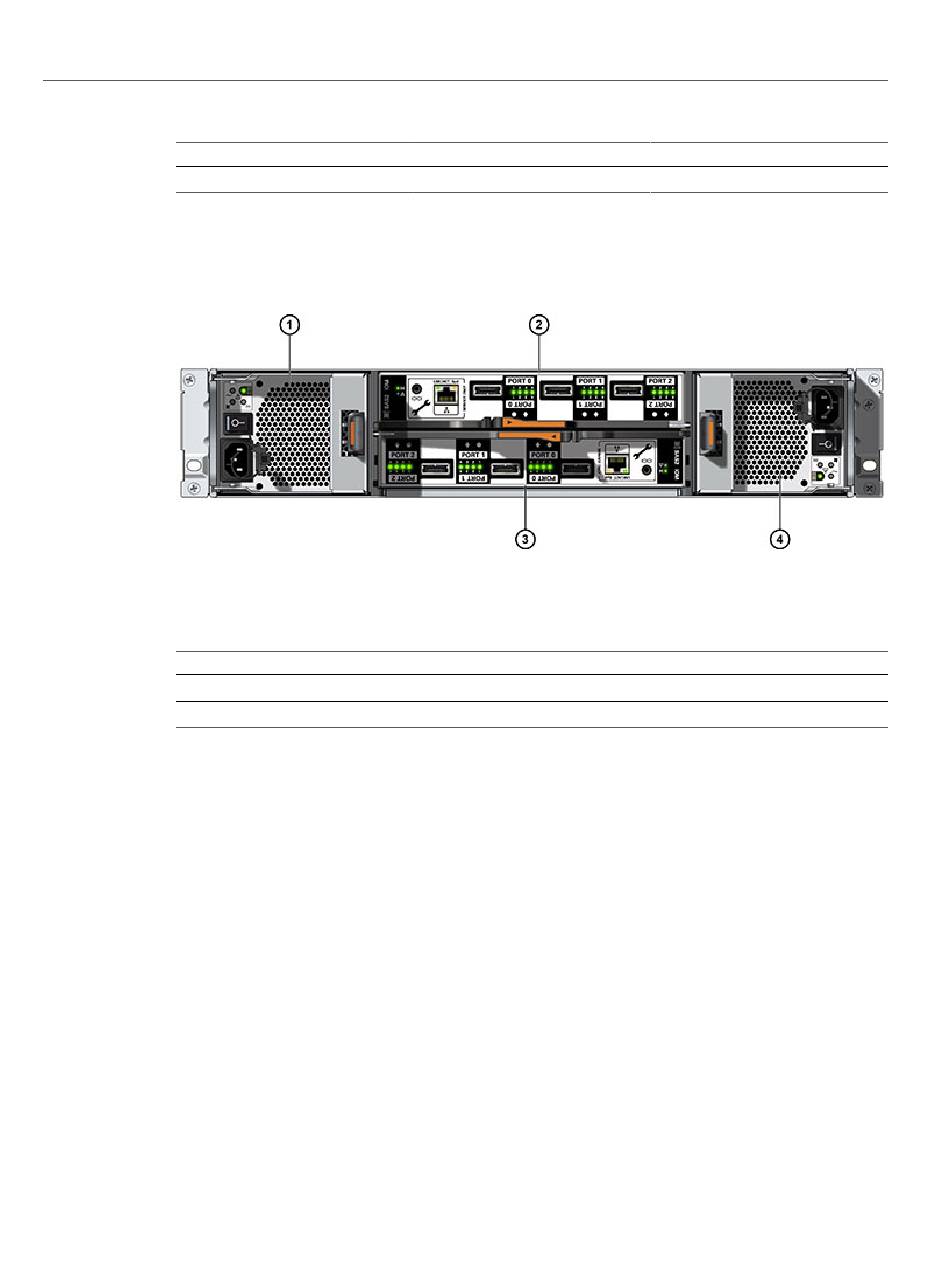

FIGURE 85 DE2-24P Rear Panel
Figure Legend
1 Power supply with fan module 0
3 I/O Module 0
DE2-24C Disk Shelf
The Oracle Storage Drive Enclosure DE2-24C is a 4U chassis that supports 24 3.5" SAS-2
drives. The high-capacity HDDs provide reliable storage. The SSDs provide accelerated write
operations, and for some controllers, read-optimized cache operations. This disk shelf features
dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.
5 Drive fault indicator
2 I/O Module 1
4 Power supply with fan module 1
Disk Shelf Hardware Overview
Servicing the Disk Shelves 375
