Oracle ZS3 Series Owner's Manual page 99

P2/MR0
■
P2/MR1
■
P3/MR0
■
P3/MR1 (leftmost slot)
■

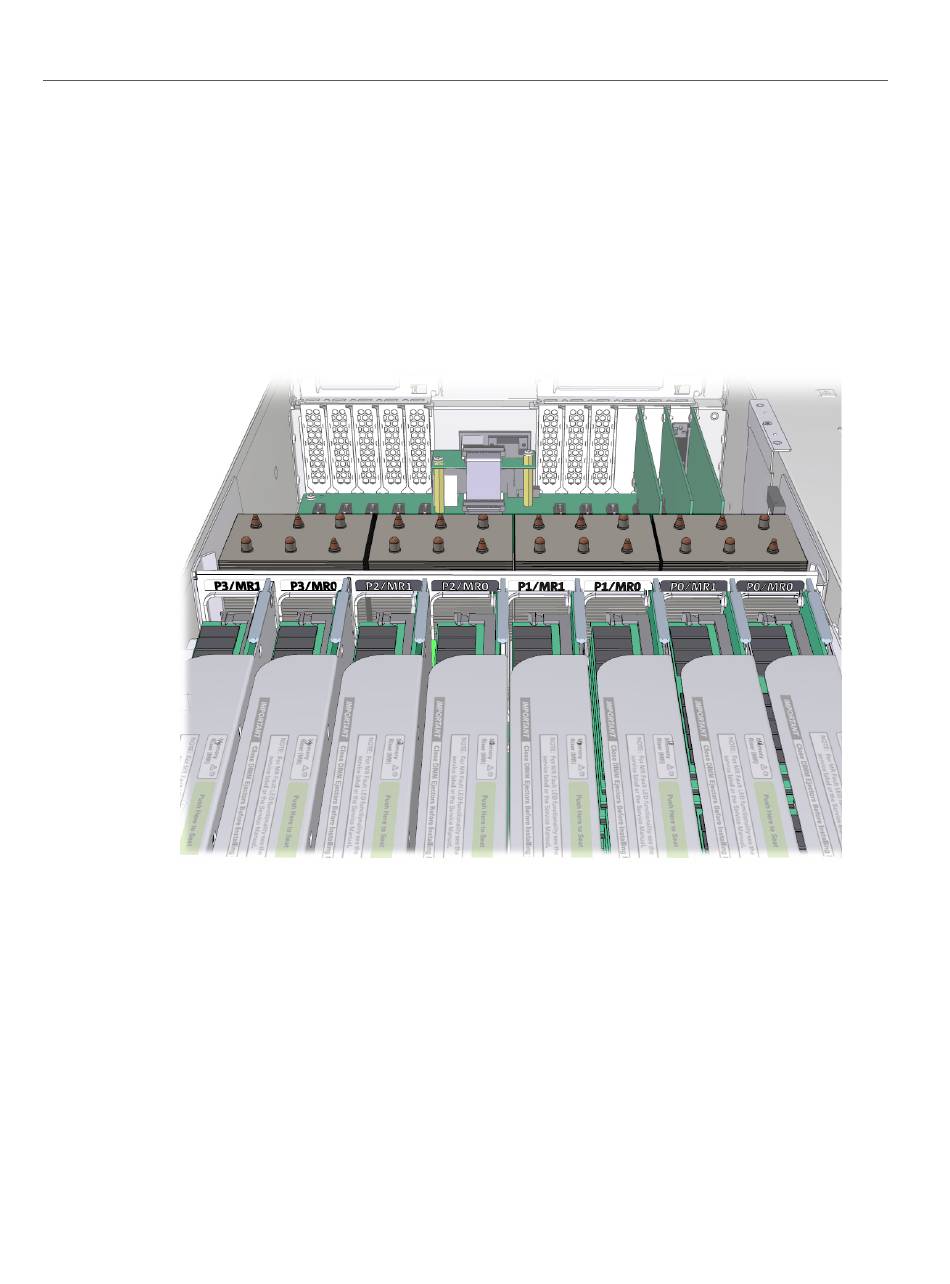

The following illustration shows the numbering for the memory riser slots and their associated
CPUs as described above:
Memory Riser Card Population Rules
The memory riser population rules for the controller are as follows:
1. Each CPU has two dedicated memory riser card slots (MR0 and MR1).
2. The dedicated memory riser slots for each installed CPU must contain a memory riser card.
A four CPU system must contain eight memory riser cards.
3. When populating the controller with memory riser cards:
