Ethernet Ports
The ZS3-2 has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors, labeled NET 3,
NET 2, NET 1, and NET 0 (left to right) on the rear panel. The ports operate at 100 Mbits/sec,
1000 Mbits/sec, or 10-Gbits/sec. Use these ports to connect the appliance to the network.
ZS3-2 Ethernet Port LEDs Description
TABLE 27
Connection Type
Fast Ethernet
Gigabit Ethernet
10 Gigabit Ethernet
The LEDs located above each NET port are Link/Activity (left) and Speed (right) indicators for
each port.

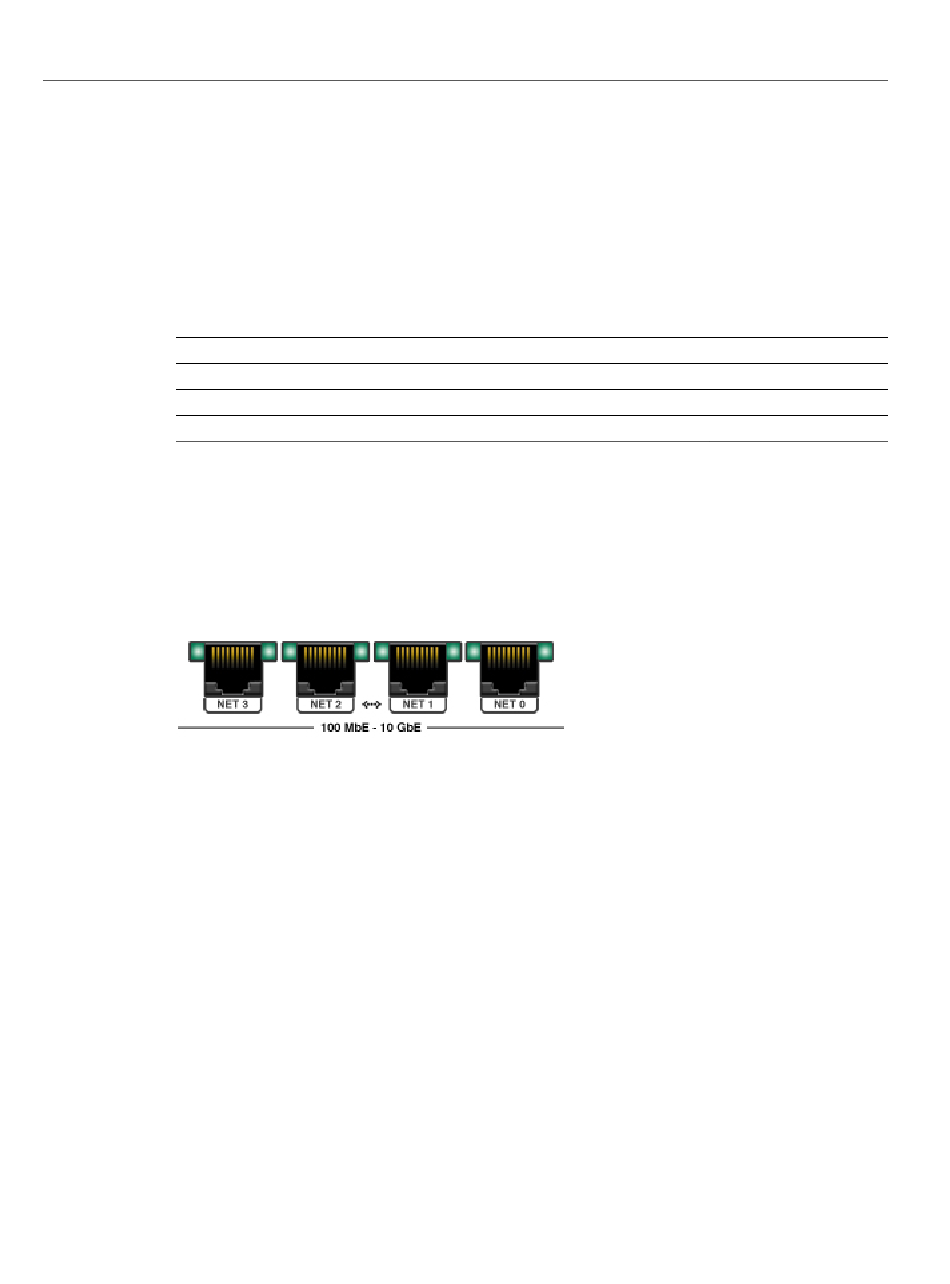

FIGURE 37 ZS3-2 Controller Ethernet Ports
Network Management Port
The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port
and provides an alternate terminal interface to the SP console.
EEE Terminology Speed LED Color
100BASE-TX Off
1000BASE-T Amber
10GBASE-T Green
ZS3-2 Controller Hardware Overview
Transfer Rate
100 Mbits/sec
1000 Mbits/sec
10000 Mbits/sec
