Oracle ZS3 Series Owner's Manual page 91

Callout Description
6 CPU
7 Heatsink
8 Cover

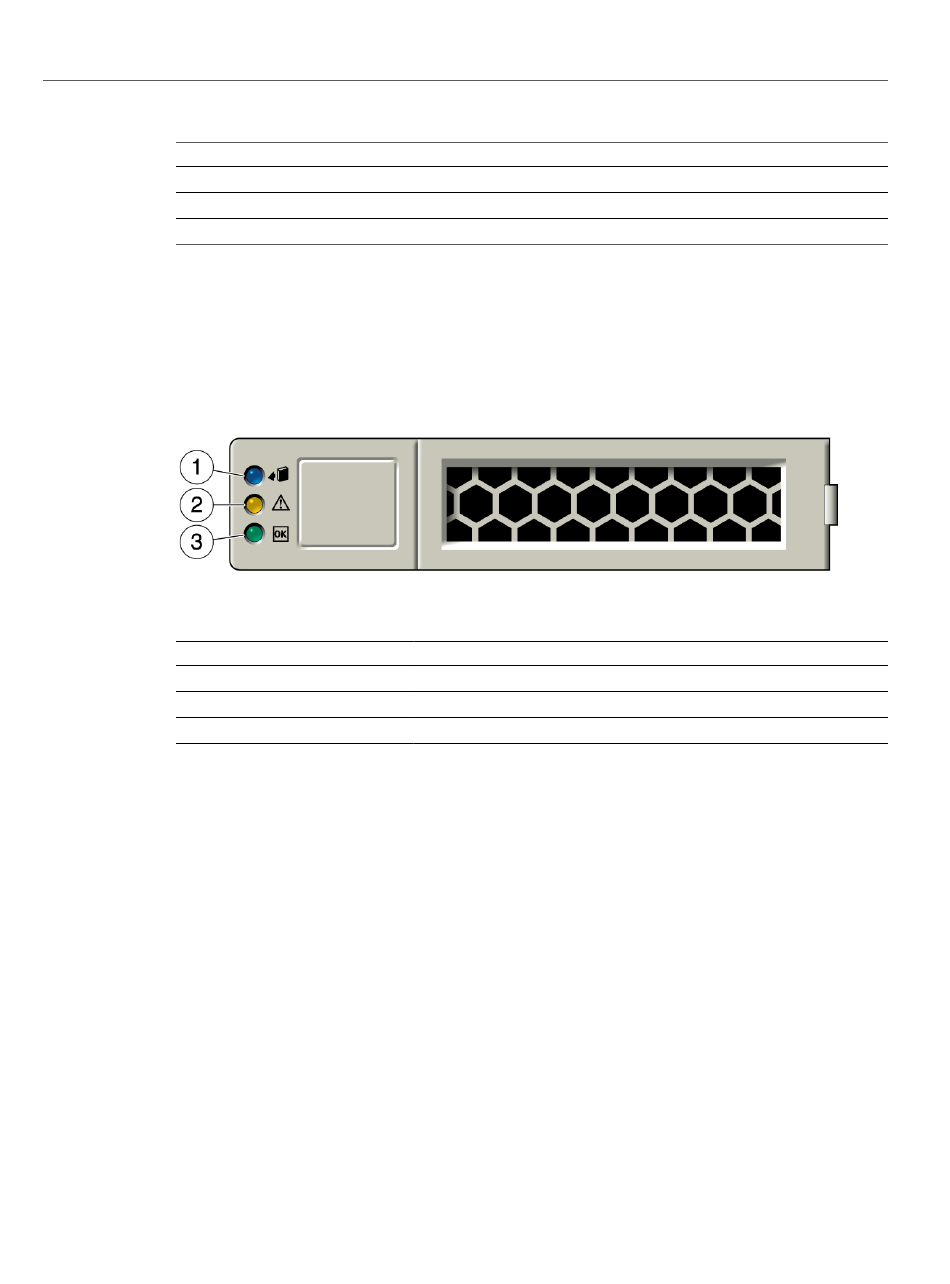

ZS5-4 Storage Drive
This section shows the location and explains the functions of the storage drive status indicators.
Callout
1
2
3
ZS5-4 Fan Module
The six fan module slots are at the front of the ZS5-4 controller and are set in two rows of three
slots. The slots are designated from left to right. As pictured in the illustration below, the three
front row slots are designated as: FM0, FM1, and FM2. The three back row slots are: FM3,
FM4, and FM5.
Callout
14
15
Description
Ready to Remove (blue)
Service Action Required (amber)
OK/Activity (green)
ZS5-4 Controller Hardware Overview
Description
Storage drive backplane board
Controller chassis
Servicing the ZS5-4 Controller 91
