ZS4-4 Controller Hardware Overview
FIGURE 18

ZS4-4 PCIe I/O Cards

The ZS4-4 base configuration contains the following PCIe cards:
One 8-port SAS-2 internal HBA (slot 2)
■
Two 4-port (4x4) SAS-2 external HBAs (slot 6 and slot 7)
■
One cluster interface card (slot 4)
■
The following figure shows the PCIe I/O slot numbers.
168 Oracle ZFS Storage Appliance Customer Service Manual • December 2016

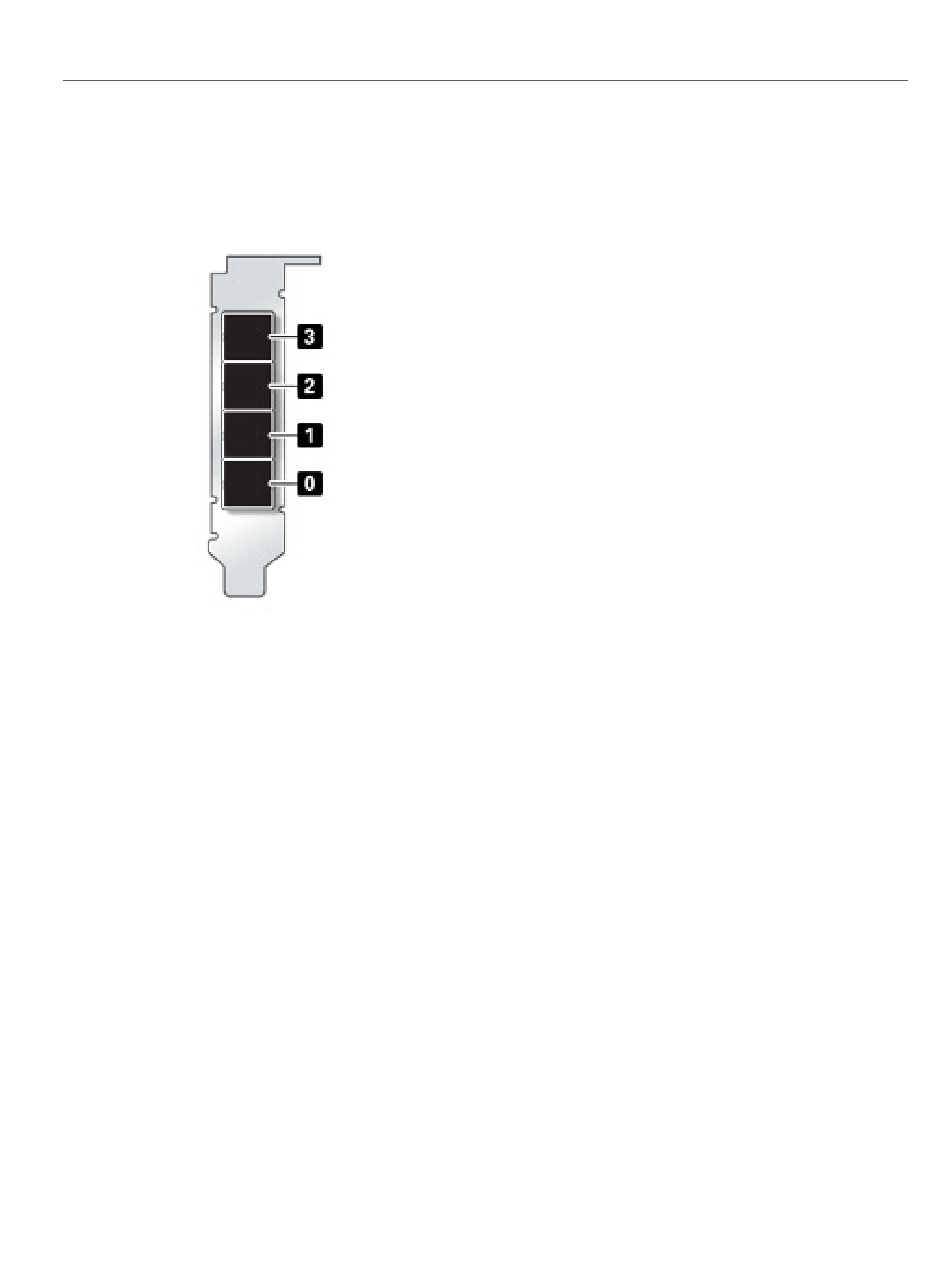

4x4 SAS-2 HBA Port Numbers
