ZFS Storage ZS5-2 Getting Started Guide
®
Contents

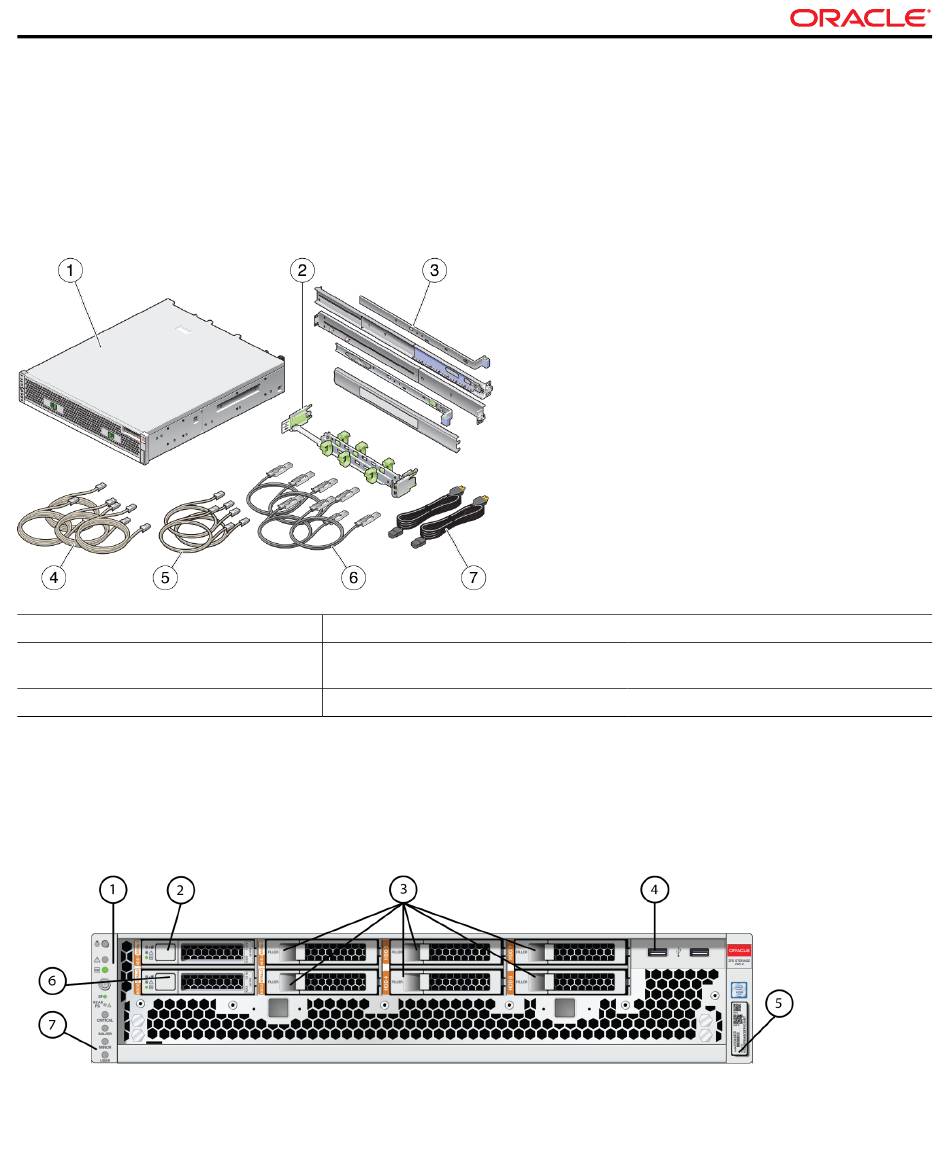

1 Oracle ZFS Storage ZS5-2 controller
4 Four 6-meter Ethernet cables
7 Two power cords
Front Panel Components
2 Cable management arm
5 Three 2.5-meter Ethernet cables
3 Slide rail kit
6 Four 3-meter SAS cables (up to eight 3-
meter or 6-meter cables per customer request)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZFS Storage ZS5-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Oracle ZFS Storage ZS5-2

Summary of Contents for Oracle ZFS Storage ZS5-2

  • Page 1 Oracle ZFS Storage ZS5-2 Getting Started Guide ® Contents 1 Oracle ZFS Storage ZS5-2 controller 2 Cable management arm 3 Slide rail kit 4 Four 6-meter Ethernet cables 5 Three 2.5-meter Ethernet cables 6 Four 3-meter SAS cables (up to eight 3-...

  • Page 2: Back Panel Components

    9 Two USB 3.0 ports 10 Cluster interface card (slot 4) 11 First 4x4 SAS HBA (slot 2) 12 Power Supply Unit (PSU) 0 Install the Hardware For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs. oracle.com/en/storage.
  • Page 3 "Power On and Configure the System." Connect Clustered Controllers If you have clustered controllers, connect the two controllers together. For detailed information, see the Oracle ZFS Storage Appliance Cabling Guide available from http://docs.oracle.com/en/storage.
  • Page 4 Connect Disk Shelves The following illustration shows clustered ZS5-2 controllers, each with two HBAs connected to four Oracle Storage Drive Enclosure DE3-24 disk shelves in two chains. For additional configuration options, see the Oracle ZFS Storage Appliance Cabling Guide available from http://docs.oracle.com/en/storage. Do not connect power cables to the disk shelves or controllers until instructed to do so in "Power On and Configure the System."...

  • Page 5: Perform Initial Configuration

    Oracle ZFS Storage Appliance Installation Guide available from http://docs.oracle.com/en/storage. Perform Initial Configuration For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs. oracle.com/en/storage, including properly configuring the management interfaces and updating the controller...

  • Page 6: Product Documentation Library

    Product Documentation Library Documentation for this product is available in the storage section of the Oracle Help Center, located at http:// docs.oracle.com/en/storage/. Documentation Accessibility For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program web site at http: //www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.
