Connect the ETH1 or ETH0 Cable through the Service
Panel Base

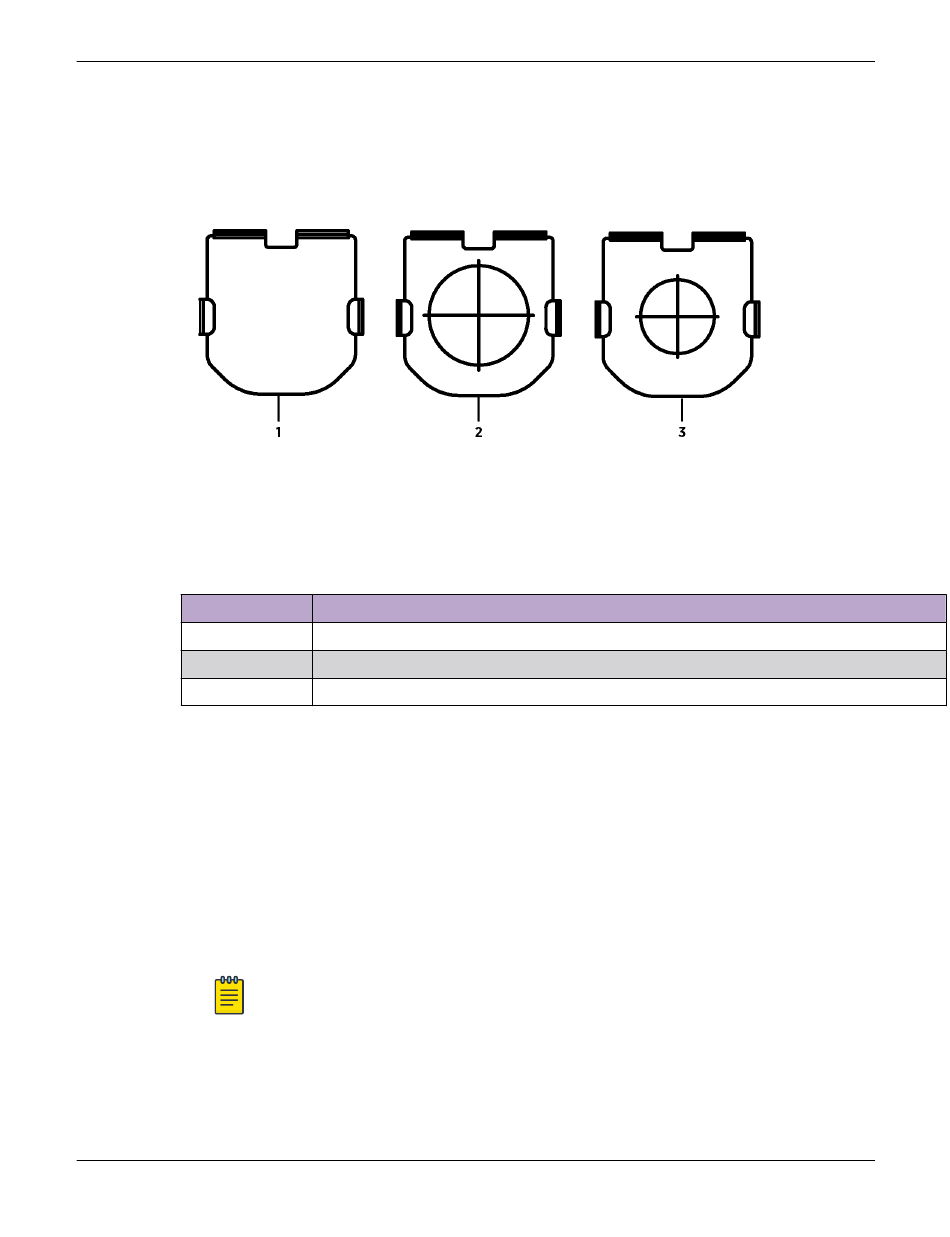

Figure 18: Metal conduit covers
Callout
1
2
3
Procedure
1. Using the blank conduit cover, cover the front hole of the service panel base
2. Attach either the ½ in. conduit cover or the ¾ in. conduit cover to the rear hole of the service panel
base.
3. Bring in the ETH1 or ETH0 cable, and the ground wire through the rear side hole of the service panel
base.
4. Loosely align the service panel base next to the metal sloping bracket, thereby leaving enough
space to attach the ETH1 or ETH0 cable to the access point.
5. Attach the ground wire to the access point.
6. Remove the gland caps, plastic cage, and the gasket from the ETH0 port.
7. Connect the ETH0 LAN cable through the ETH0 gland port until it clicks into place in the GE1 port.
If there is a ETH1 connection, insert the cable through the ETH1 gland until it locks into place in to the
GE2 port.
8. Torque the gland cap to 13-in lbs.
Description
Blank conduit cover to cover the front hole on the side of the service panel base
¾ in. conduit cover
½ in. conduit cover
Note
Put the removed parts onto the LAN cable to be attached to the access point later.
