Ground the Access Point

Learn how to safely ground the access point.
About This Task
Ground the outdoor access point for outdoor installations. A ground terminal is provided for lightning
protection.Ground connection is not required for under seat or indoor deployments. The ground
connector on the access point is not a protective earth ground. To add ground connection to the access
point: Attach the ring terminal to the ground wire.Insert the ring terminal on the ground screw.Thread
the ground screw into the access point hole below the ground symbol.
To add ground connection to the access point:
Procedure
1. Attach the ring terminal to the ground wire.
2. Insert the ring terminal on the ground screw.
3. Thread the ground screw into the access point hole below the ground symbol.

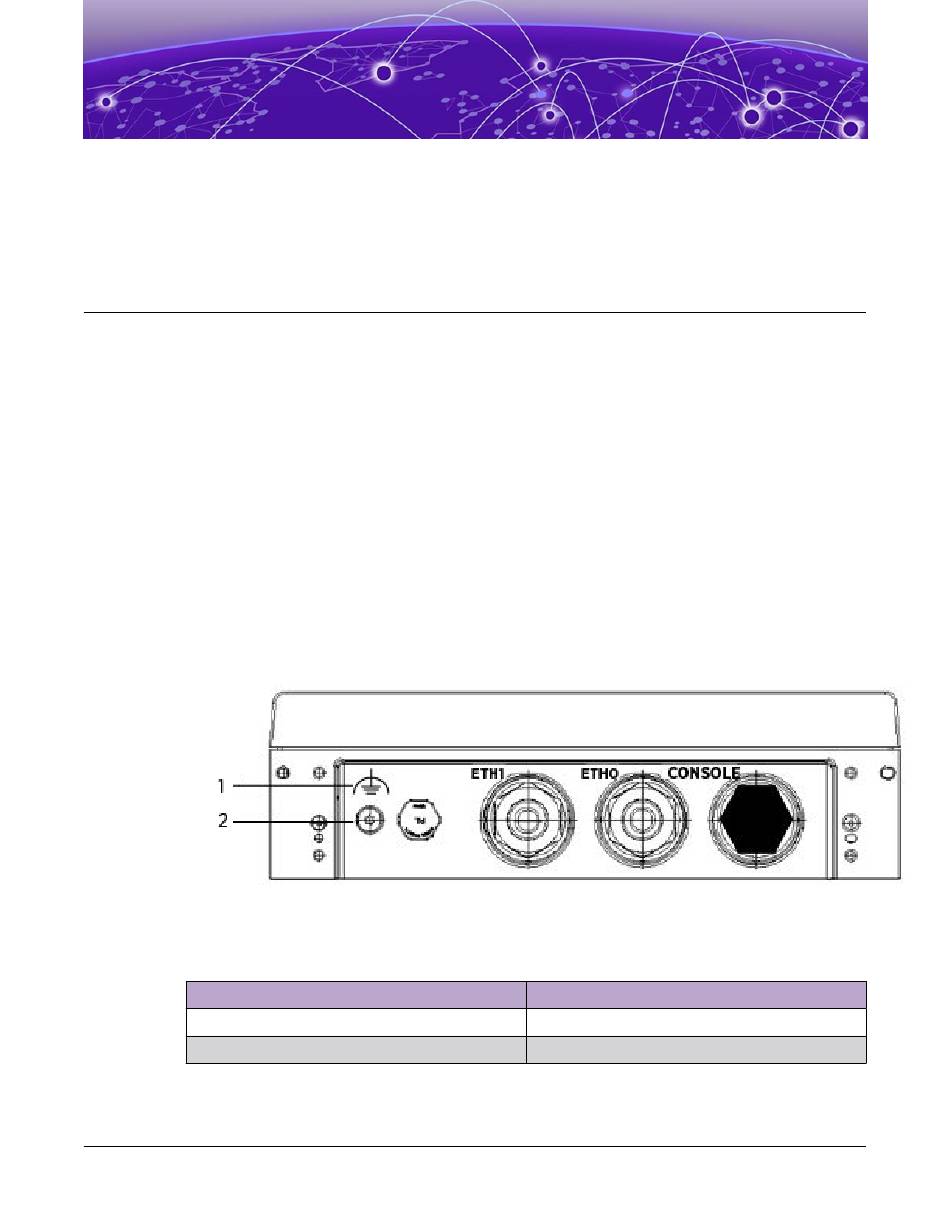

Figure 17: Ground port hole
Callout
1
2
4. Tighten the ground screw to 12 in-lbs.
ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point
Description
Ground symbol
Ground screw hole
