Install the Access Point
Procedure
1. Attach the KT-147407-02 flat part and 1-axis tilt part to the access point.
For instructions on how to attach the bracket parts, see
Bracket Parts and KT-150173-01 Extension Arm
2. Attach the KT-147407-02 pole part to the 1-axis tilt bracket using two M12 bolts through the large
bracket holes on the 1-axis tilt bracket and the pole bracket.
3. Fasten the bolts using two M12 hex nuts.

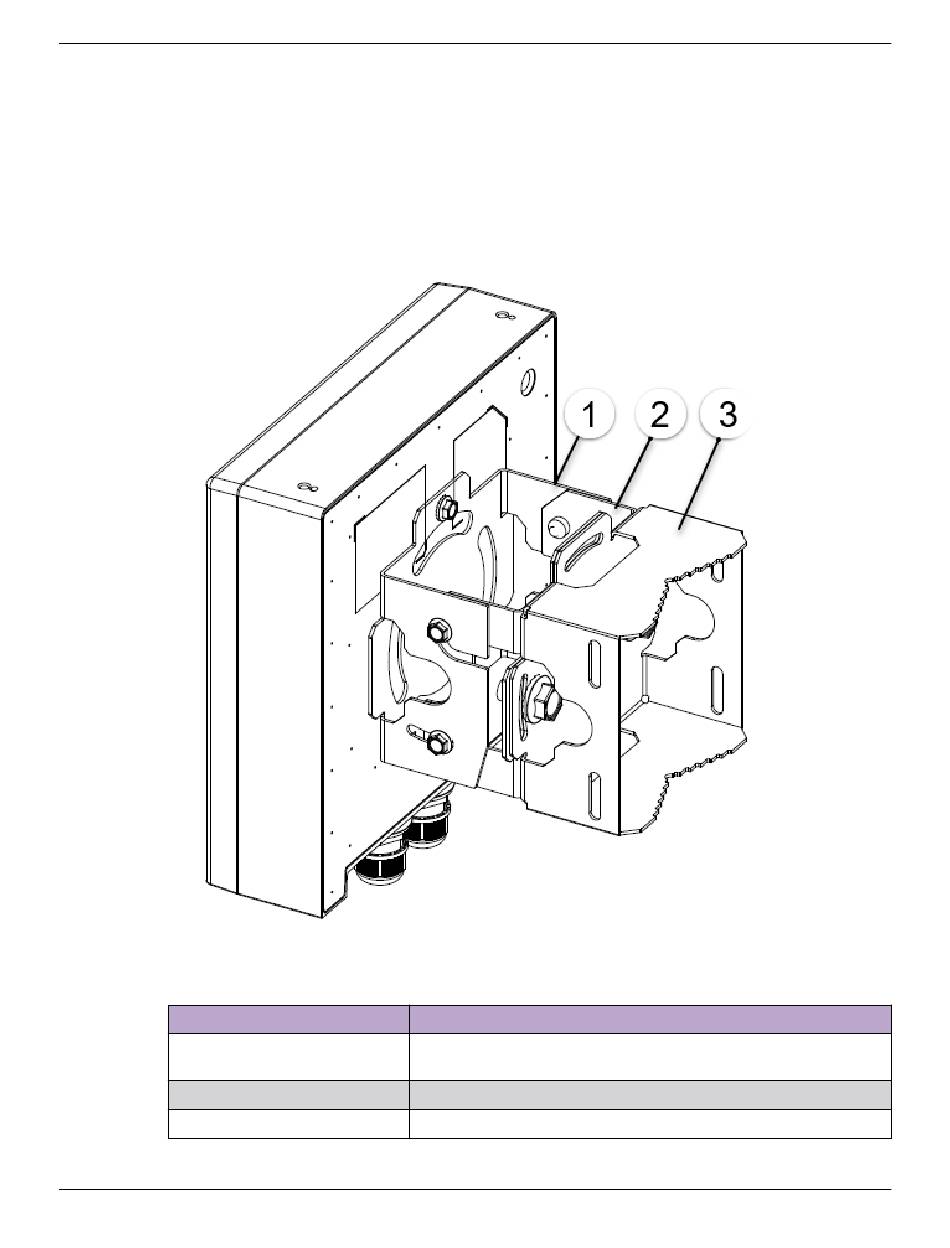

Figure 11: AP5050U access point with KT-147407-02 bracket parts
Callout
1
2
3
Install the Access Point on a Pole Using KT-147407-02
Description
Flat part of the KT-147407-02 bracket, with two holes on the metal
surface
1-axis tilt bracket, with large holes on the surface
Pole bracket
