TPS Control
It is possible to save a printout as a file on the PC. This function is activated before you trigger the print-
out.
1.
In PC, select Transfer>Capture Text. A new window will appear.
2.
Name the text file and choose a location in which to store it. Click Start.
3.
In TPS Control, go to the submenu Print-out in Service.
4.
Determine whether you want to print parameters, jobs or all collected information.
5.

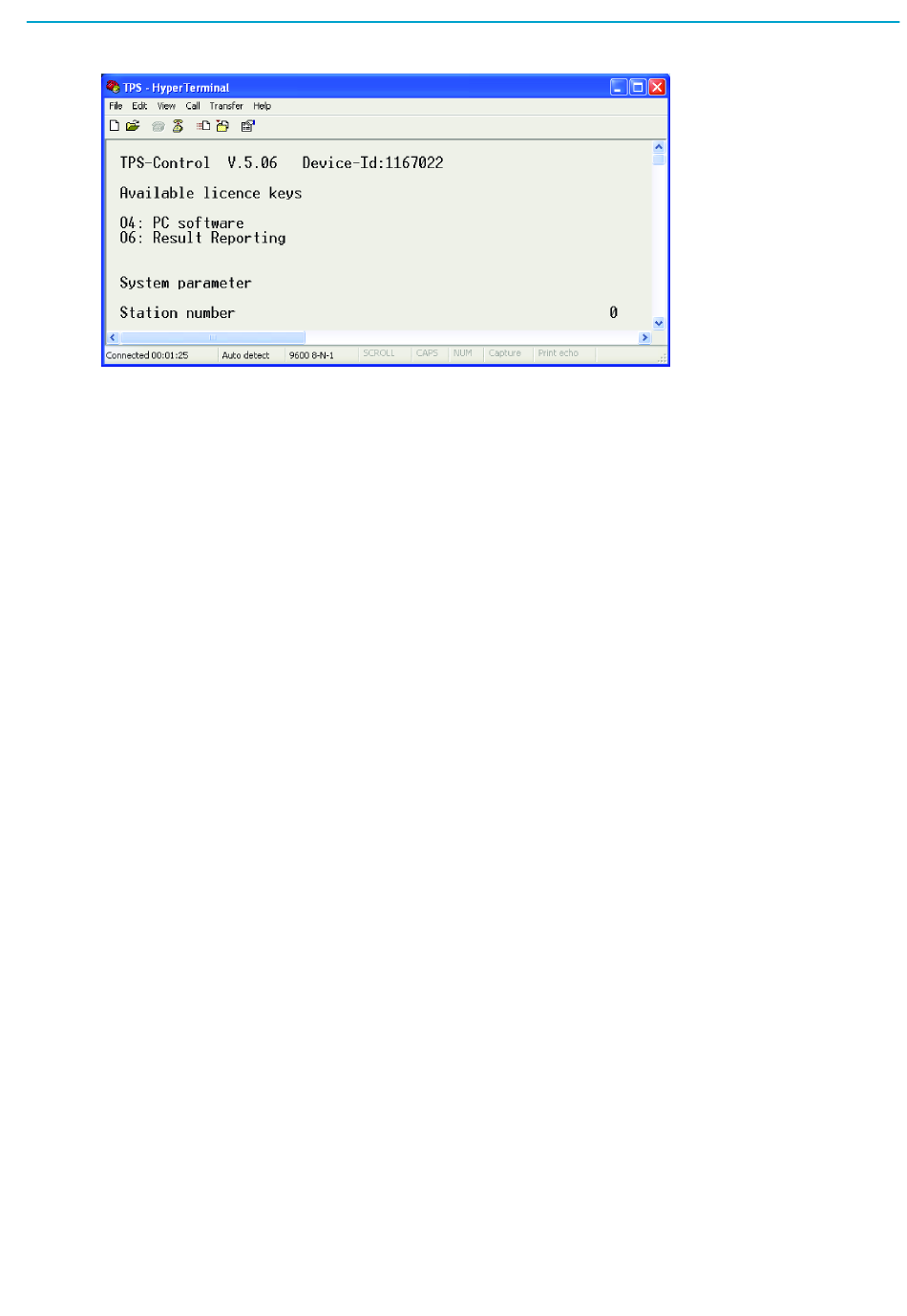

The selected option triggers a printout in the HyperTerminal window.
6.
In PC, select Transfer>Capture Text and click Stop.
