TPS Control
2.
Press VAL to confirm the selection.
3.
Press ESC to leave the menu.
4.
Go to Output Configuration and set the signals matching the input signals in the tool controller.
5.
Press VAL to confirm the selection.
6.
Press ESC to leave the menu.
Connecting to MTF 400
This section describes how to configure MTF 400 and TPS Control to set up I/O communication between
the controllers. MTF 400 has several digital relay outputs and inputs that can be used for communication
with TPS. All inputs and outputs can be configured using the ToolsTalk software. For a complete instruc-
tion of ToolsTalk MTF, see the ToolsTalk MTF user guide.
To ensure that the TPS works properly with MTF 400, the I/O connections must be connected in PNP
mode (source type, positive logic), as described in the applicable instruction for separate MTF 400 con-
troller.
Note! This section describes an example of how to configure the MTF 400 controller and TPS. Depending
on the type of operation you may need to set the inputs and outputs to other values.
1.
Check that the digital I/O cable is connected to the TPS and the MTF 400.
2.
Check that a PC with the ToolsTalk MT software installed is connected to the MTF 400.
In ToolsTalk MT
1.
Click I/O state to display the status of the controller I/O signal. A new window appears.
2.

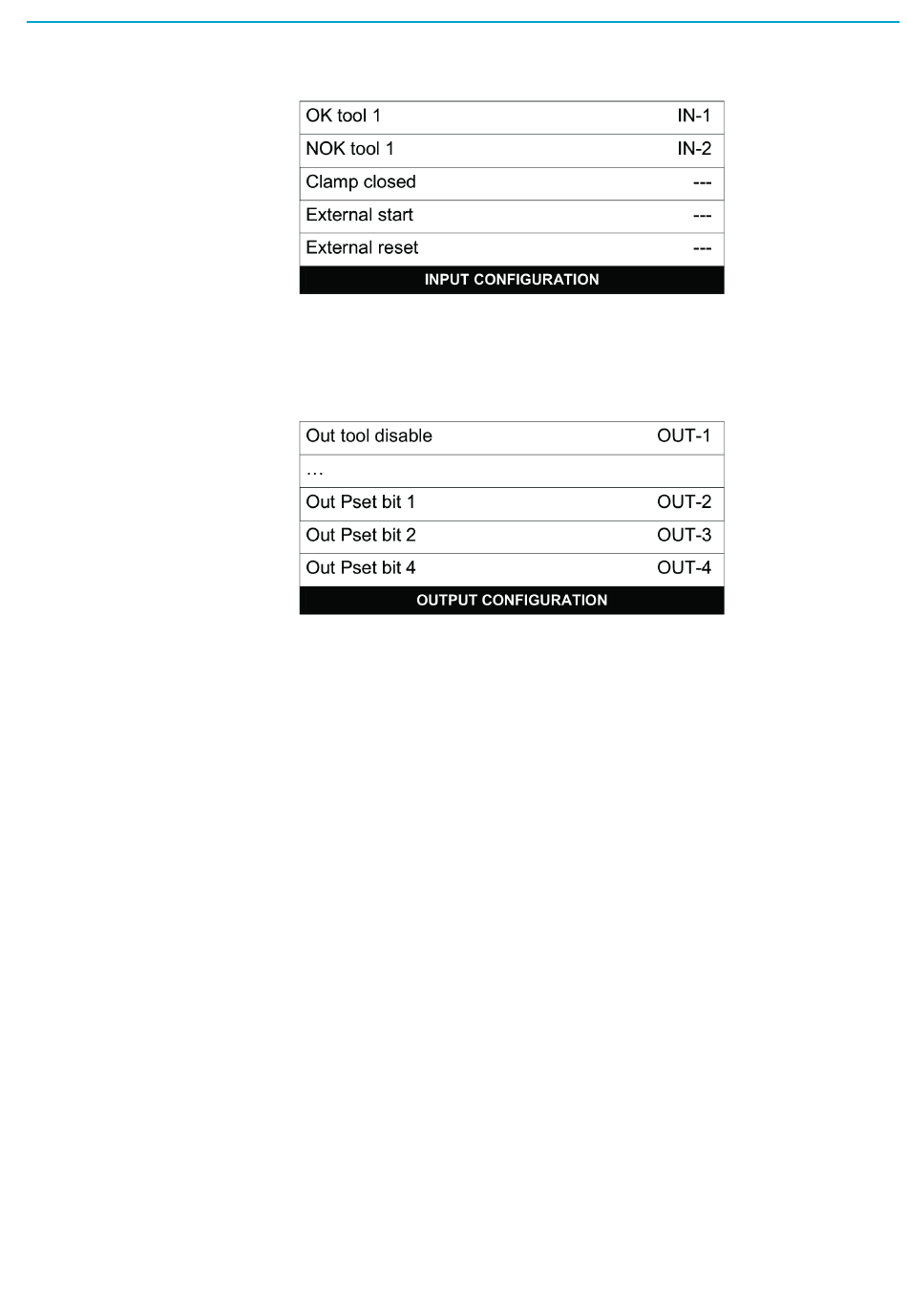

Set input and output signals as seen in the figure below.
EN
